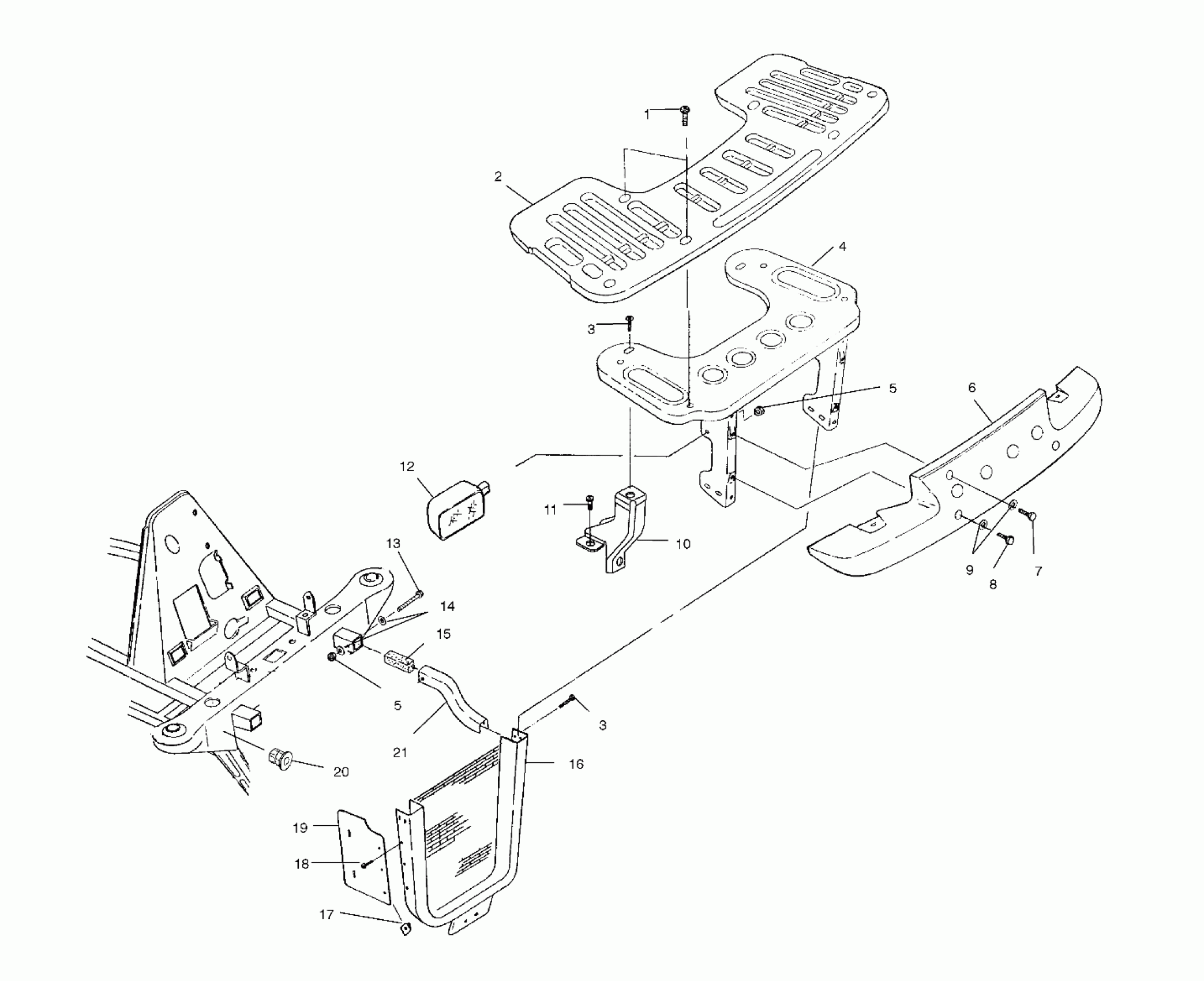

Polaris 500 MAGNUM 4X4 HDS - A03CD50FB FRONT RACK and BUMPER MOUNTING - A03CD50FB (4975277527A07) Diagram

#

Description
Price

1

SCREW

7517685

$1.59

2

Asm., Front Rack [Incl. Warning Decal]

2670180-070

Unavailable

3

SCREW

7515399

$1.19

3

SCREW

7515399

$1.19

4

Support, Front Rack

1014023-067

Unavailable

5

NUT-5/16-18 NYLOK-Y

7542324

$0.79

5

NUT-5/16-18 NYLOK-Y

7542324

$0.79

6

Bumper

5432155-070

$142.86

7

Screw

7515391

$4.84

8

Screw

7515390

Unavailable

9

WASHER

7555954

$4.76

10

Support, Front Rack, LH

1013744-067

Unavailable

10

Support, Front Rack, RH

1013746-067

$94.99

11

SCREW

7512232

$1.19

12

Bulb, Replacement, 27W

4030059

Unavailable

12

Headlight, LH

2431014

Unavailable

12

Headlight, RH

2431015

Unavailable

13

Bolt

7512329

$3.97

14

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

15

PLUG, FRAME

5810467

Unavailable

16

Guard, Brush

1013772-067

Unavailable

17

Nut, U-Type

7670094

$5.56

18

Screw

7512097

$3.97

19

Shield, Radiator Side, LH

5433923

$32.37

19

Shield, Radiator Side, RH

5433924

$32.37

20

Nutsert

7547069

$3.97

21

Extension, Frame, LH

5244729-067

$90.74

21

Extension, Frame, RH

5244730-067

$79.74
