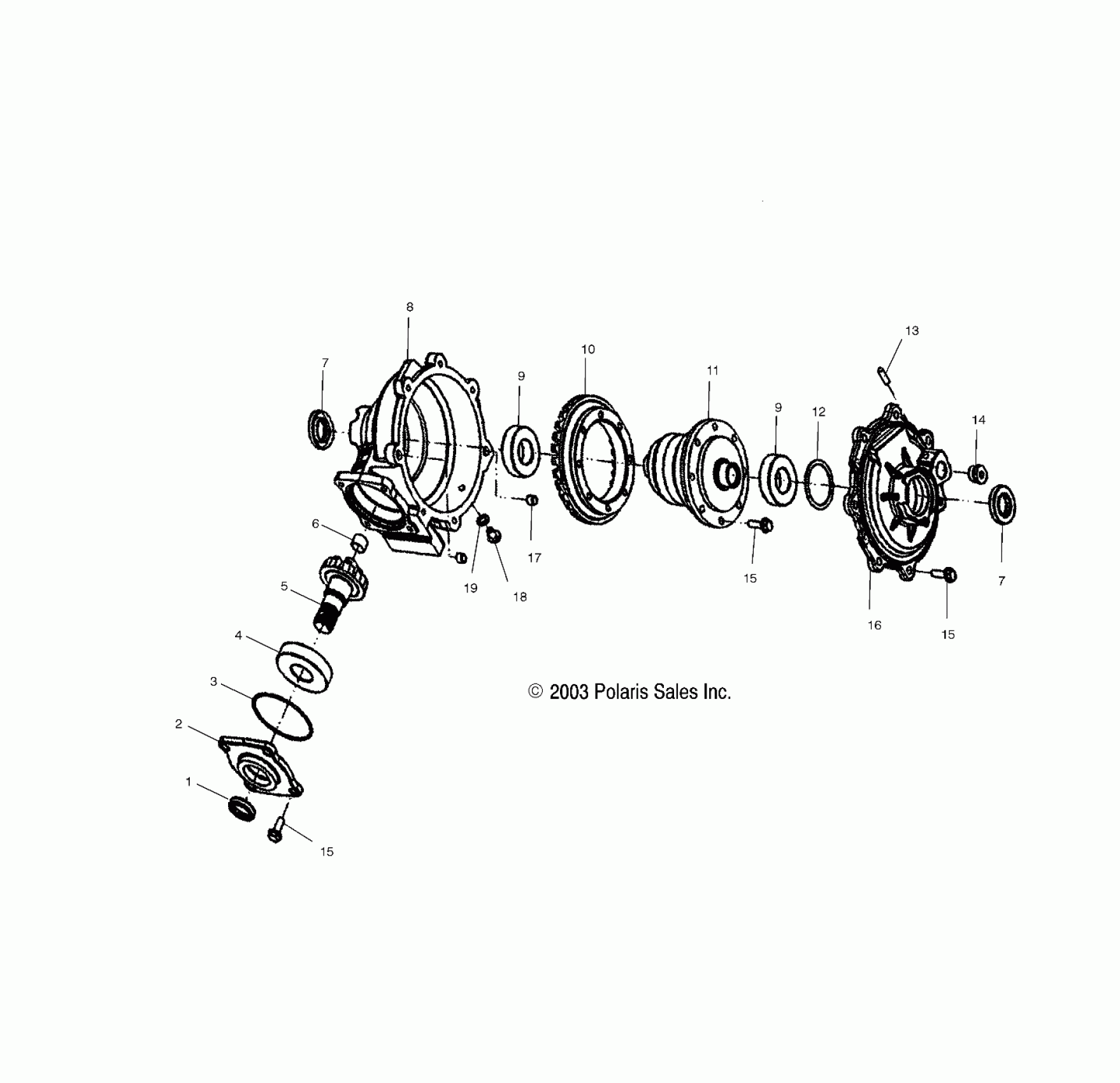

Polaris 500 MAGNUM 4X4 HDS - A03CD50FB FRONT HOUSING - A03CD50FB (4986268626C10) Diagram

#

Description
Price

-

Asm., Front Gearcase

1341351

Unavailable

1

Seal, Triple Lip

3233785

$19.99

2

Cover, Input Front Housing

3233786

Unavailable

3

O-Ring

3233588

$10.55

4

BEARING,BALL

3233589

$59.99

5

Pinion, 10T

3233787

Unavailable

6

Bushing

3233591

$6.63

7

Seal, Triple Lip

3233788

$31.99

7

Seal, Triple Lip

3233788

$31.99

8

Housing, Front Gearcase

3233789

$217.99

9

BEARING-BALL 6206 C3 30X62X16

3233790

$27.99

9

BEARING-BALL 6206 C3 30X62X16

3233790

$27.99

10

Gear, 31T

3233791

Unavailable

11

Differential

3233792

Unavailable

12

SHIM

3233554

$30.79

13

TUBE, VENT

3233524

$7.19

14

PLUG, HEX, HOLLOW W/O-RING

3233794

$15.19

15

Screw

3233252

$5.27

15

Screw

3233252

$5.27

15

Screw

3233252

$5.27

16

Cover, Output, Front Housing

3233793

Unavailable

17

Pipe, Knock

3233529

$7.99

18

Plug, Hex Flange

3233777

$34.99

19

Washer, Plug

3233254

$7.99
