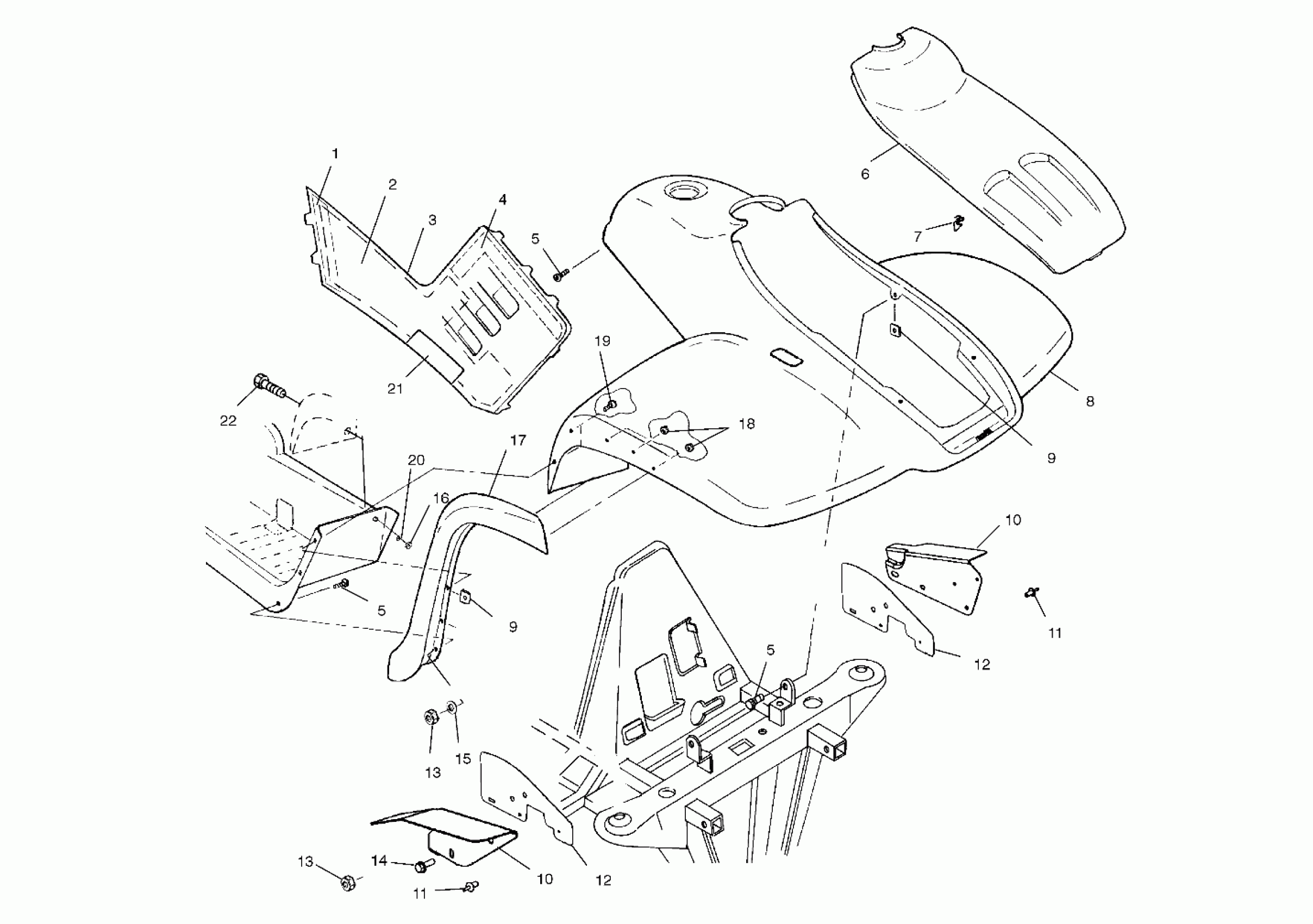

Polaris 500 MAGNUM 4X4 HDS - A03CD50FB FRONT CAB - A03CD50FB (4975277527A05) Diagram

#

Description
Price

1

Foil, Side Panel, Gen IV, RH

5811491

Unavailable

2

Foil, Side Panel, RH

5812329

Unavailable

3

Asm., Panel w/Foil, RH, Slv Vapor

2620085-382

$99.19

3

Asm., Panel w/Foam, LH, Slv Vapor

2632284-382

$99.19

4

Foam, LH

5811797

$10.51

5

SCREW

7512232

$1.49

5

SCREW

7512232

$1.49

5

SCREW

7512232

$1.49

6

Cover, Front, Silver

5432088-382

Unavailable

7

Clip, Spring

7670085

$3.51

8

Cab, Front, Silver [Incl. Warning Decals]

2632299-382

$239.19

9

Nut, Speed, U-Type

7670057

$1.49

9

Nut, Speed, U-Type

7670057

$1.49

10

Shield, Splash, RH

5246021-067

$28.15

10

Shield, Splash, LH

5245394-067

$15.67

10

Shield, Splash, RH

5246021-067

$28.15

10

Shield, Splash, LH

5245394-067

$15.67

11

Rivet, Plastic

7621509

$1.49

11

Rivet, Plastic

7621509

$1.49

12

Shield, Deflector

5811917

$7.43

12

Shield, Deflector

5811917

$7.43

13

Nut, Nylok

7542122

$1.49

13

Nut, Nylok

7542122

$1.49

14

SCREW

7512126

$4.79

15

Washer, Flat

7555931

Unavailable

16

Nut, Nylok

7541925

$1.49

17

Guard, Mudflap, Front, LH

5434406-070

$50.99

17

Guard, Mudflap, Front, RH

5434407-070

Unavailable

18

Nut, Tinnerman, Push-On

7547240

$0.56

19

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

20

WASHER

7555792

$4.79

21

Foam

5812138

$6.39

22

Screw

7512085

Unavailable
