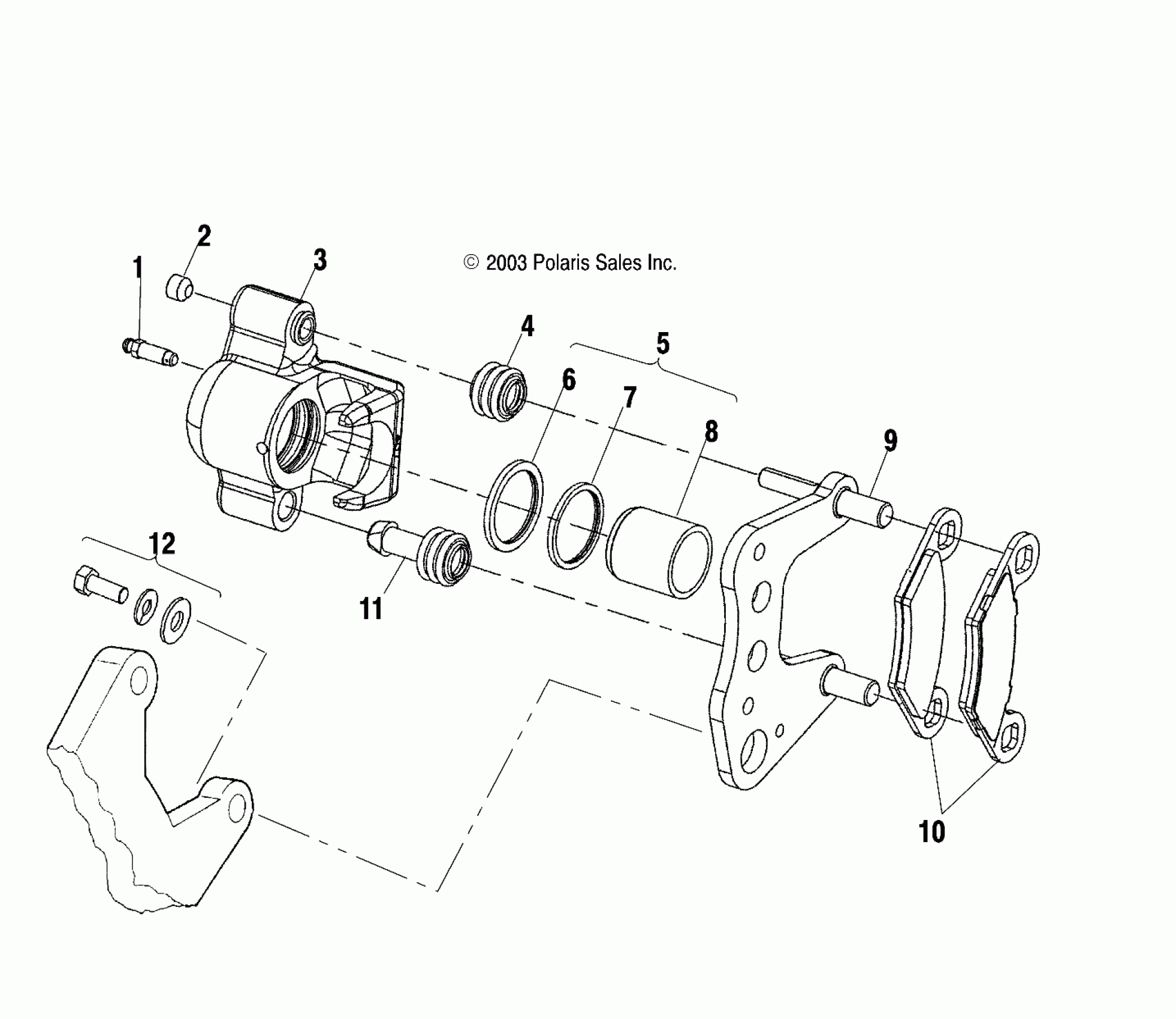

Polaris 500 MAGNUM 4X4 HDS - A03CD50FB FRONT BRAKE - A03CD50FB (4986188618B05) Diagram

Description

Price

Asm., Brake Caliper, RH [Incl. 1-3,6-9,11]

1910682

Unavailable

Asm., Brake Caliper, LH [Incl. 1-3,6-9,11]

1910681

$288.87

Screw, Bleeder

7080352

$3.19

Screw, Socket Set

7515489

$5.59

KIT-BOOT,FRONT BRAKE

1930642

$11.19

Caliper, Brake, LH

5133407

Unavailable

Caliper, Brake, RH

5133408

Unavailable

Boot, Pin Seal

5410494

Unavailable

Kit, Piston and Seals [Incl. 6-8]

1930665

$55.99

SQUARE RING-MOLDED (.094)

5410779

$10.51

Square Ring, Molded, .103 x .134

5410780

$10.51

Piston, Long

5132294

$54.04

Mount, Caliper

1910411

$50.18

KIT-BRAKE PAD ASM

2202412

$55.99

Boot, Bushing

5410495

Unavailable

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

Washer, Lock

7552901

$1.49

SCREW

7512365

$1.49
