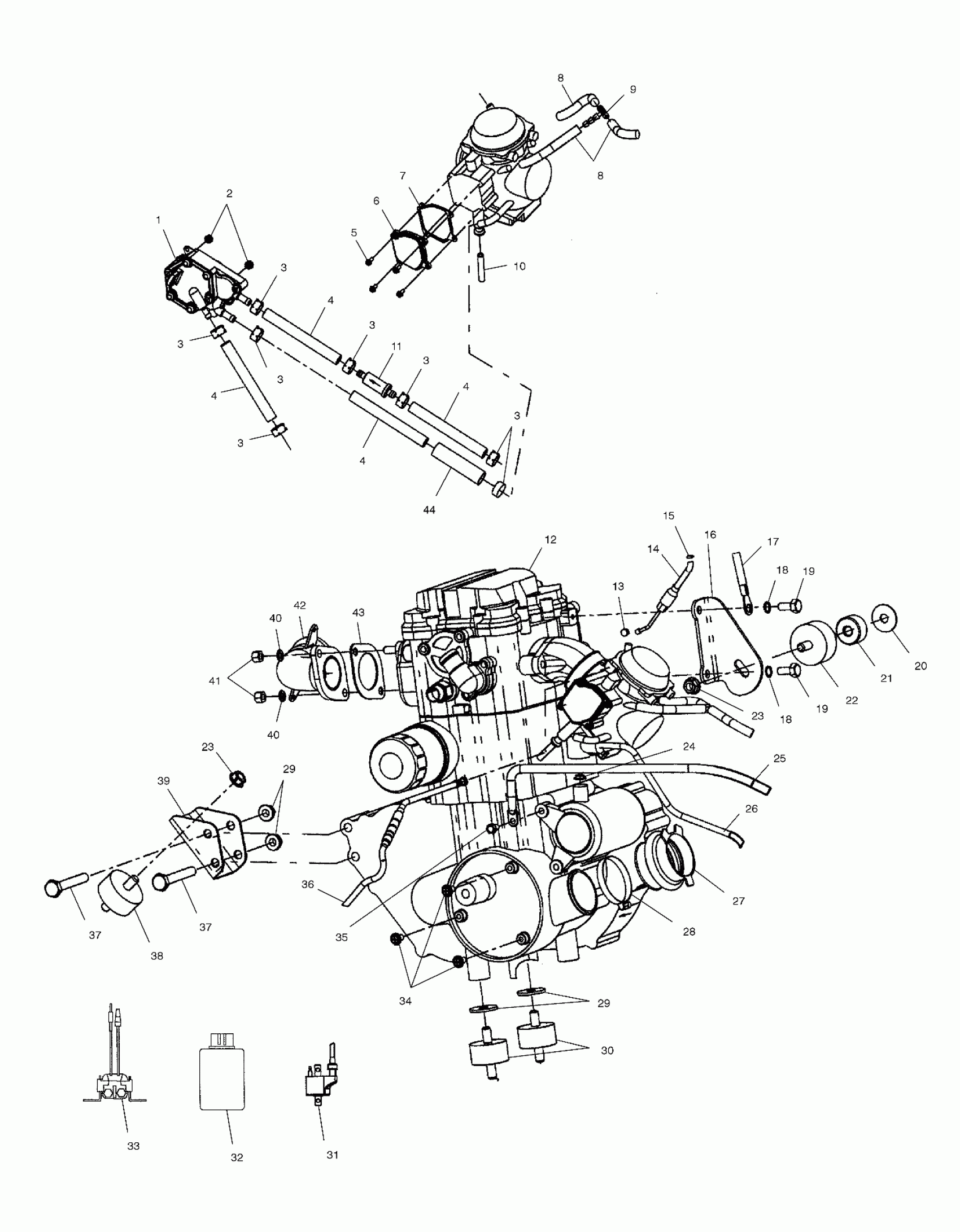

Polaris 500 MAGNUM 4X4 HDS - A03CD50FB ENGINE MOUNTING - A03CD50FB (4975277527A11) Diagram

#

Description
Price

1

Asm., Fuel Pump

3085275

$77.21

2

NUT-M5X.8,HX NYL-Y

7546601

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

3

HOSE CLAMP, RED

7080003

$1.49

4

Line, Fuel

8450103

Unavailable

4

Line, Fuel

8450103

Unavailable

4

Line, Fuel

8450103

Unavailable

4

Line, Fuel

8450103

Unavailable

5

SCREW

3130535

$7.19

6

COVER

3130511

$43.99

7

O-Ring

3130512

$39.99

8

Line, Fuel

8450003-1525

Unavailable

8

Line, Fuel

8450003-1525

Unavailable

9

FITTING, TEE

7052075

$9.59

10

LINE, FUEL

8360009-600

$40.46

11

FILTER

2530009

$5.65

12

Engine, Short Block NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for warranty c

3085556

Unavailable

13

Cable Guide

3130543

$27.99

14

Cable, Throttle

7080967

$55.99

15

O-RING

5410193

$4.99

16

Mount, Engine, Top

5242936-067

$5.75

17

Cable, Ground

4010132

Unavailable

18

WASHER, SPRING LOCK

7552901

$1.49

18

WASHER, SPRING LOCK

7552901

$1.49

19

BOLT

7512315

$4.79

19

BOLT

7512315

$4.79

20

WASHER, FLAT

7555823

$3.99

21

Spacer

5132007

Unavailable

22

Mount, Rubber

3021045

Unavailable

23

NUT

7547108

$4.79

23

NUT

7547108

$4.79

24

NUT, FLANGE

3083649

$3.99

25

Cable, Block Battery/Engine

4010095

Unavailable

26

Cable, Solenoid/Starter

4010093

$47.99

27

Boot, Clutch, Intake

5410421

$11.19

28

Clamp, Narrow Band

7080511

$4.79

29

Washer

7555815

$3.99

29

Washer

7555815

$3.99

30

Mount, Rubber, Rear

3021119

Unavailable

31

Asm., Ignition Coil

3084690

Unavailable

32

CDI System

3087169

Unavailable

33

Switch, Magnetic

3087196

Unavailable

34

Screw and Washer

3084205

$3.99

35

Bolt and Washer

3082038

$3.99

36

Cable, Choke

7081008

$79.99

37

SCREW

7515417

$4.79

37

SCREW

7515417

$4.79

38

Mount, Rubber, Top

3110044

Unavailable

39

Mount, Engine, Lower, Front

5242818-067

$40.19

40

Washer, Lock

3080530

$3.19

40

Washer, Lock

3080530

$3.19

41

Nut

3080285

Unavailable

42

Manifold

1260978-029

Unavailable

43

GASKET

3085075

$39.99

44

Sheath, Foil, Laminated

8450080-18

$15.49
