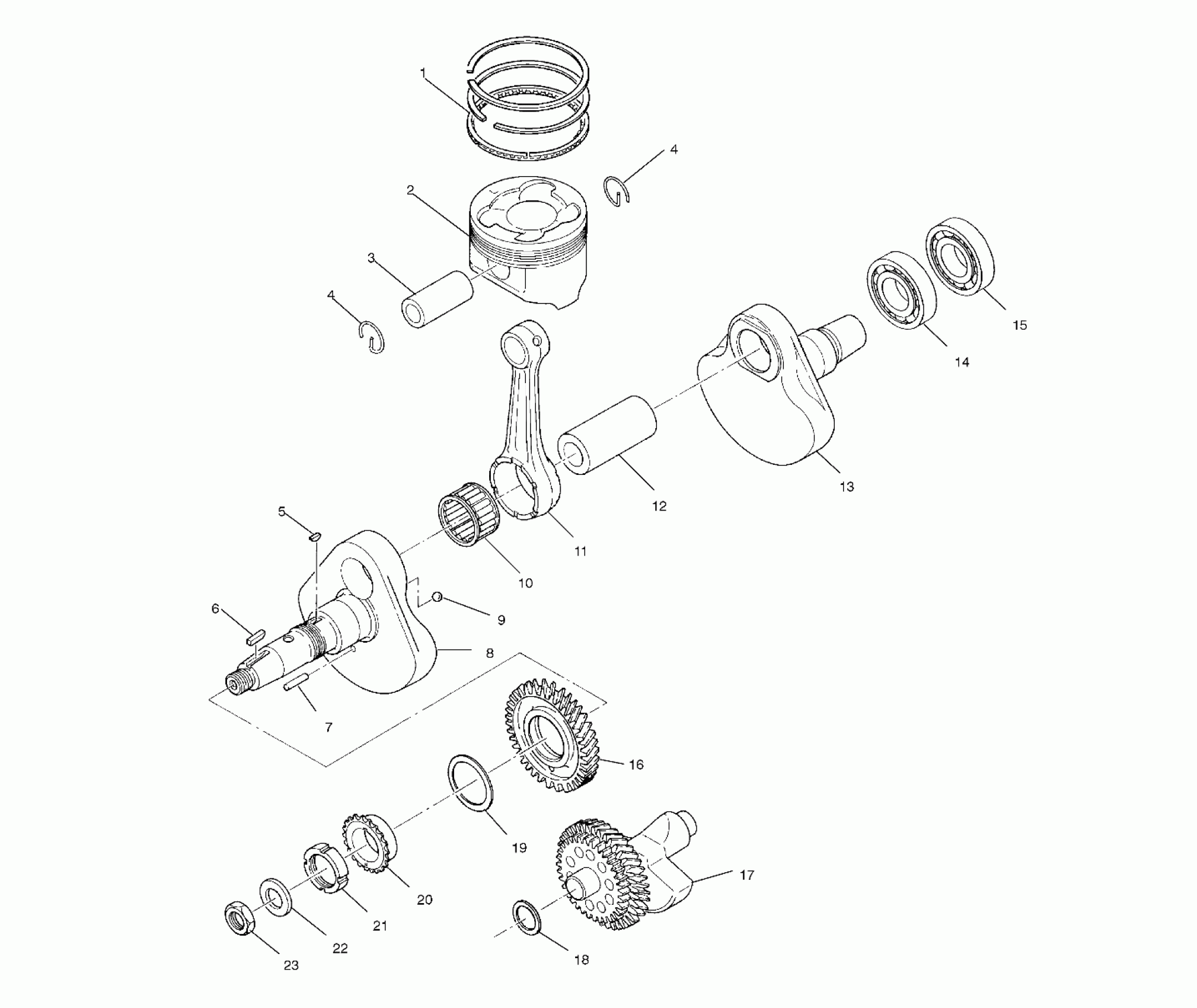

Polaris 500 MAGNUM 4X4 HDS - A03CD50FB CRANKSHAFT and PISTON - A03CD50FB (4975277527D05) Diagram

#

Description
Price

1

Piston Ring Set [Std]

3087224

$59.99

1

Piston Ring Set [0.25 O/S]

3087225

$63.99

1

Piston Ring Set [0.50 O/S]

3087226

$63.99

2

Piston Set [0.25 O/S] [Incl. 2-4]

3087222

$143.99

2

Piston Set [0.50 O/S] [Incl. 2-4]

3087223

$143.99

2

Piston Set [Std] [Incl. 2-4]

3087221

Unavailable

3

PIN, PISTON

-------

Unavailable

4

CLIP

3085534

Unavailable

4

CLIP

3085534

Unavailable

5

Key, Woodruff

3080130

Unavailable

6

KEY

3081447

Unavailable

7

Pin, Dowel

3085346

Unavailable

8

Crankshaft 1

3085373

$342.99

8

Asm., Crankshaft [Incl. 7,13-16]

3087227

Unavailable

9

BALL, STEEL

3085024

$5.59

10

Bearing, Large End

3085400

$78.56

11

Rod, Connecting

3085376

$175.99

12

Pin, Crank

3085341

Unavailable

13

Crankshaft 2

3085374

$338.29

14

BEARING, BALL

3085815

$43.99

15

BEARING, BALL

3080676

$39.99

16

Gear 1, Balancer

3085852

Unavailable

17

Shaft, Balancer

3085404

Unavailable

18

Spacer [1.2]

3084897

$6.39

18

Spacer [0.8]

3084895

$6.39

18

Spacer [1.0]

3084896

$6.39

19

Spacer [1.2]

3084894

$19.99

19

Spacer [0.6]

3240088

$10.39

19

Spacer [1.0]

3084893

$19.99

19

Spacer [0.8]

3084892

$12.79

20

SPROCKET 1

3084882

Unavailable

21

NUT, SLIT

3085528

$35.99

22

Washer

3083904

Unavailable

23

NUT, LOCK

3083905

Unavailable
