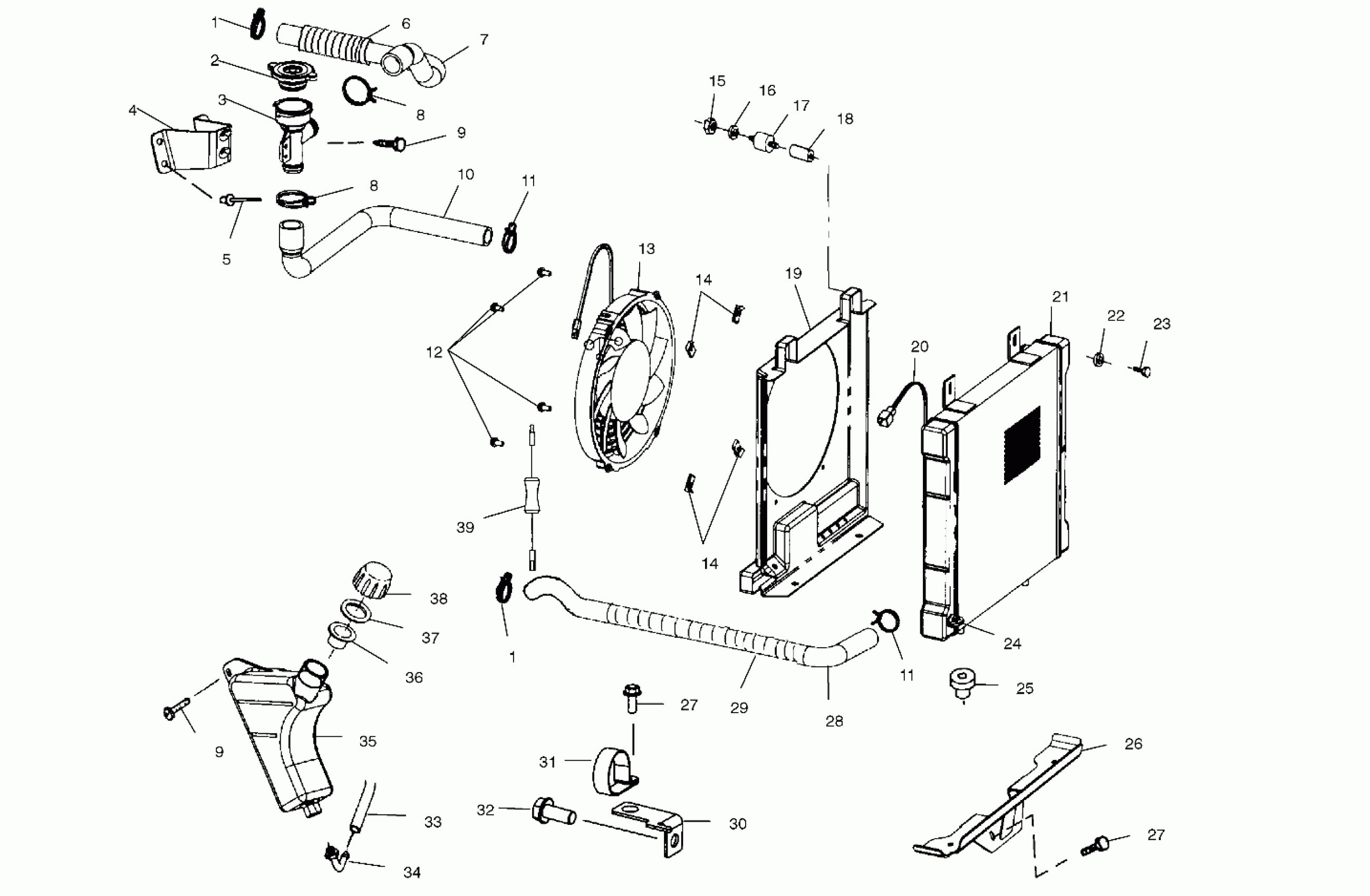

Polaris 500 MAGNUM 4X4 HDS - A03CD50FB COOLING SYSTEM - A03CD50FB (4975277527A09) Diagram

#

Description
Price

1

CLAMP, HOSE

7080696

$5.59

1

CLAMP, HOSE

7080696

$5.59

2

Cap, Pressure

1240044

Unavailable

3

Filler, Coolant

5433364

$43.56

4

Bracket, Filler, Coolant

5243505-067

Unavailable

5

RIVET-3/16-.090-.290

7661637

$1.49

6

Flexguard

5433948

Unavailable

7

Hose, Engine, Upper

5411794

Unavailable

8

Clamp, 1 Inch

7080827

Unavailable

8

Clamp, 1 Inch

7080827

Unavailable

9

Screw

7512084

$1.49

9

Screw

7512084

$1.49

10

Hose, Neck, Filler

5411632

Unavailable

11

Clamp

7080826

$4.79

11

Clamp

7080826

$4.79

12

Screw

7517659

$3.99

13

Asm., Fan and Motor

2410123

$180.79

14

U-Clip

7670111

Unavailable

14

U-Clip

7670111

Unavailable

15

Nutsert

7547069

$3.99

16

Washer, Flat

7558301

$1.49

17

Mount, Rubber

3110032

$7.99

18

Spacer

5132648

$7.99

19

Shroud, Fan

5433059

Unavailable

20

Sensor, Thermal

4010161

$103.99

21

Radiator

1240045

Unavailable

22

Washer, Split Lock

7552801

$1.59

23

Screw

7512240

$3.99

24

Valve, Drain

7052296

Unavailable

24

O-Ring

5411633

Unavailable

25

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

26

Bracket, Radiator, Lower

5244687-067

Unavailable

27

SCREW

7517386

$1.49

27

SCREW

7517386

$1.49

28

Hose, Engine, Lower

5411694

Unavailable

29

Guard, Hose

5521511

$7.43

30

Bracket, Coolant Hose Mount

5244064-067

Unavailable

31

CLAMP-HOSE,1.312 VINYL COATED

7080851

Unavailable

32

SCREW [SEE FRONT HOUSING PG C7, REF. 15]

-------

Unavailable

33

Line, Fuel

8450003-1525

$84.99

34

Fitting, Barbed, 90 Degree

7052065

$7.19

35

Tank, Surge

5433410

Unavailable

36

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

37

GASKET-OVERFLOW CAP

5810279

$2.41

38

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

39

Breaker, Circuit

4010369

$68.79
