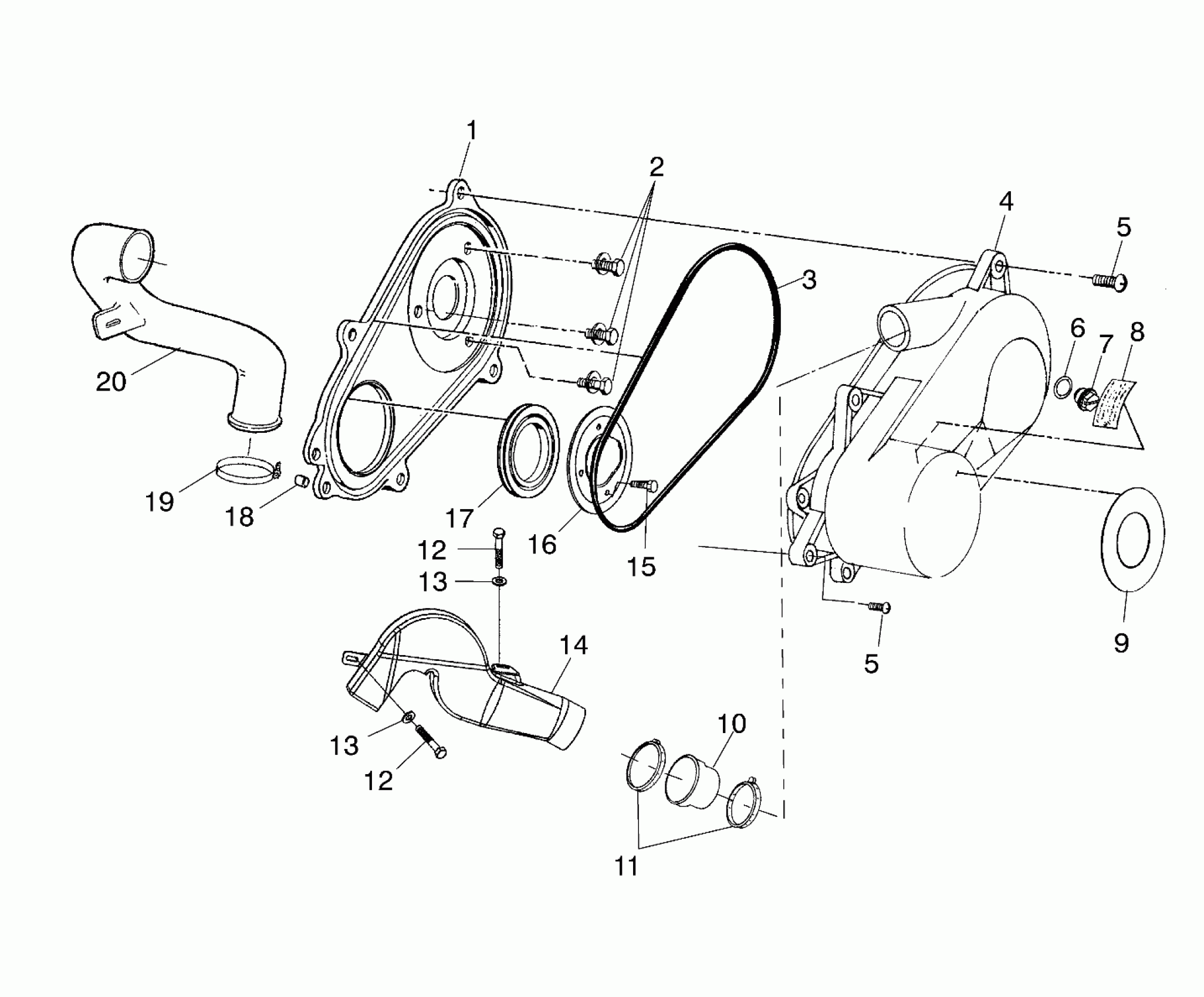

Polaris 500 MAGNUM 4X4 HDS - A03CD50FB CLUTCH COVER - A03CD50FB (4975277527C05) Diagram

#

Description
Price

1

Kit, Inner Clutch Cover [Incl. 3,5,17]

2201678

$155.99

2

SCR-TFHL-1/4-20X0.88 G5 Z SEMS

7517599

$5.59

3

Seal, Cover, Clutch, Outer

5521578

Unavailable

4

Cover, Clutch, Outer

5434255

Unavailable

5

SCREW

7512094

$1.59

5

SCREW

7512094

$1.59

6

O RING-.364X.504X.07

5410542

Unavailable

7

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

8

Decal, Warning, Clutch Cover

7078689

Unavailable

9

Decal, "Automatic EBS"

7077666

Unavailable

10

Boot, Duct

5411489

Unavailable

11

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

12

SCREW

7517386

$1.49

12

SCREW

7517386

$1.49

13

Washer, Flat

7558301

$1.49

13

Washer, Flat

7558301

$1.49

14

Duct, Air Outlet

5434213

Unavailable

15

SCREW AND WASHER [SEE CRANKCASE PG. D6, REF. 6]

-------

Unavailable

16

Bracket, Clutch Seal

5242046

$35.99

17

Seal, Cover Case

5410575

Unavailable

18

Stopper

5411908

Unavailable

19

Clamp, Narrow Band

7080511

$4.79

20

Duct, Inlet, Down Tube

5432698

Unavailable
