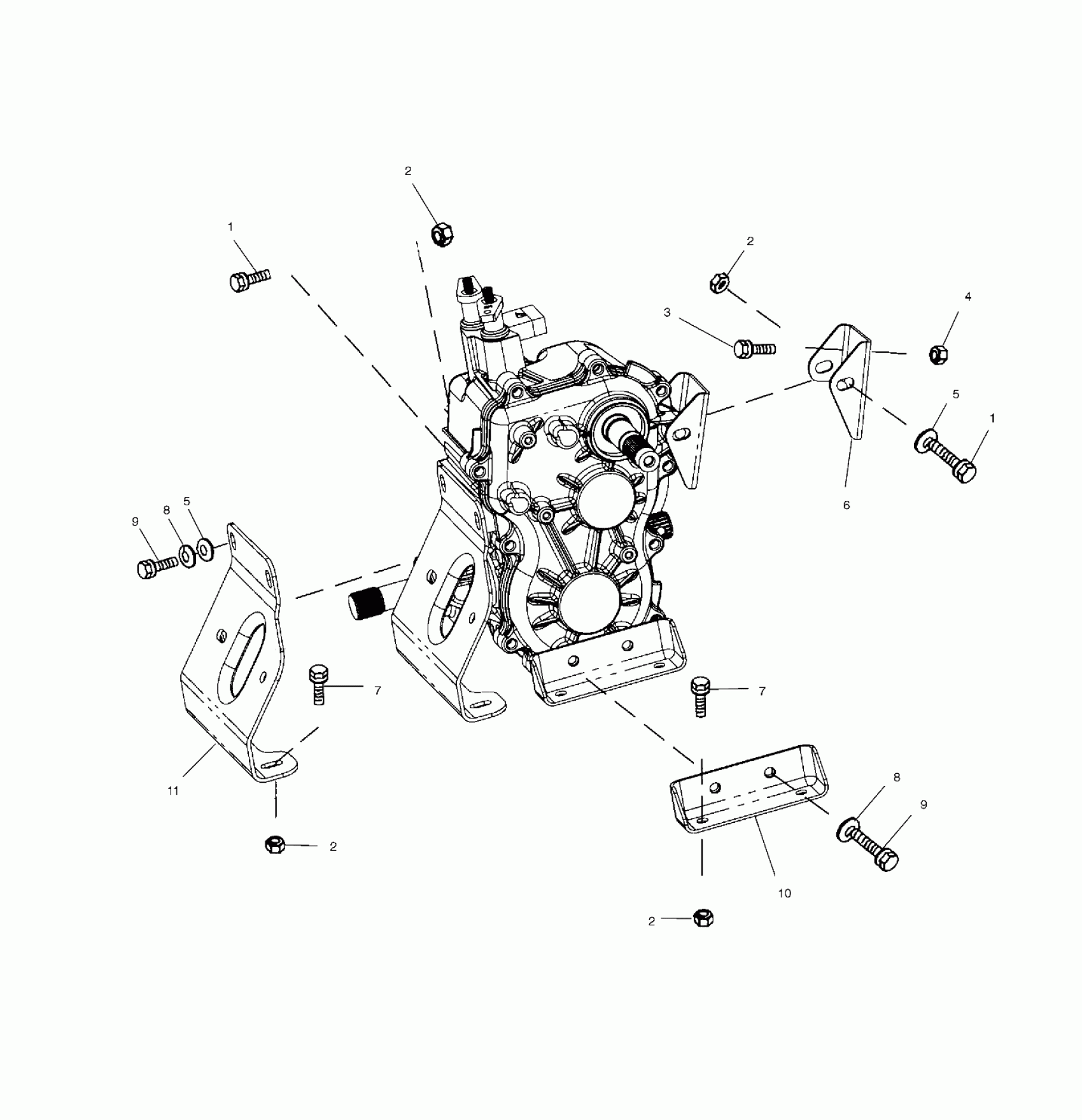

Polaris 500 MAGNUM 4X4, HDS - A00CD50FA TRANSMISSION MOUNTING - A00CD50FB (4954885488D004) Diagram

#

Description
Price

-

Asm., Main Gearcase (See Footnote) (See Main Gearcase Pg. C10 for Details)

-------

Unavailable

1

BOLT(10)

7515417

$4.79

1

BOLT(10)

7515417

$4.79

2

NUT

7547108

$4.79

2

NUT

7547108

$4.79

2

NUT

7547108

$4.79

2

NUT

7547108

$4.79

3

SCREW(10)

7515398

$2.39

4

NUT LOCK(10)

7542321

$1.49

5

WASHER ,(10)

7555976

$3.99

5

WASHER ,(10)

7555976

$3.99

6

MOUNT,R.TRANSMISSION

5242819-067

Unavailable

7

SCREW ,(10)

7517289

$4.79

7

SCREW ,(10)

7517289

$4.79

8

WASHER(10)

7552603

$1.49

8

WASHER(10)

7552603

$1.49

9

BOLT(10)

7515522

$3.99

9

BOLT(10)

7515522

$3.99

10

MOUNT,TRANSMISSION,BLK

5242820-067

$7.43

11

MOUNT,ENGINE,REAR 500,BLK (If built after 1/01/00)

1013134-067

$114.39

11

MOUNT,REAR MOTOR,BLK (If built before 1/01/00)

1012975-067

$13.52
