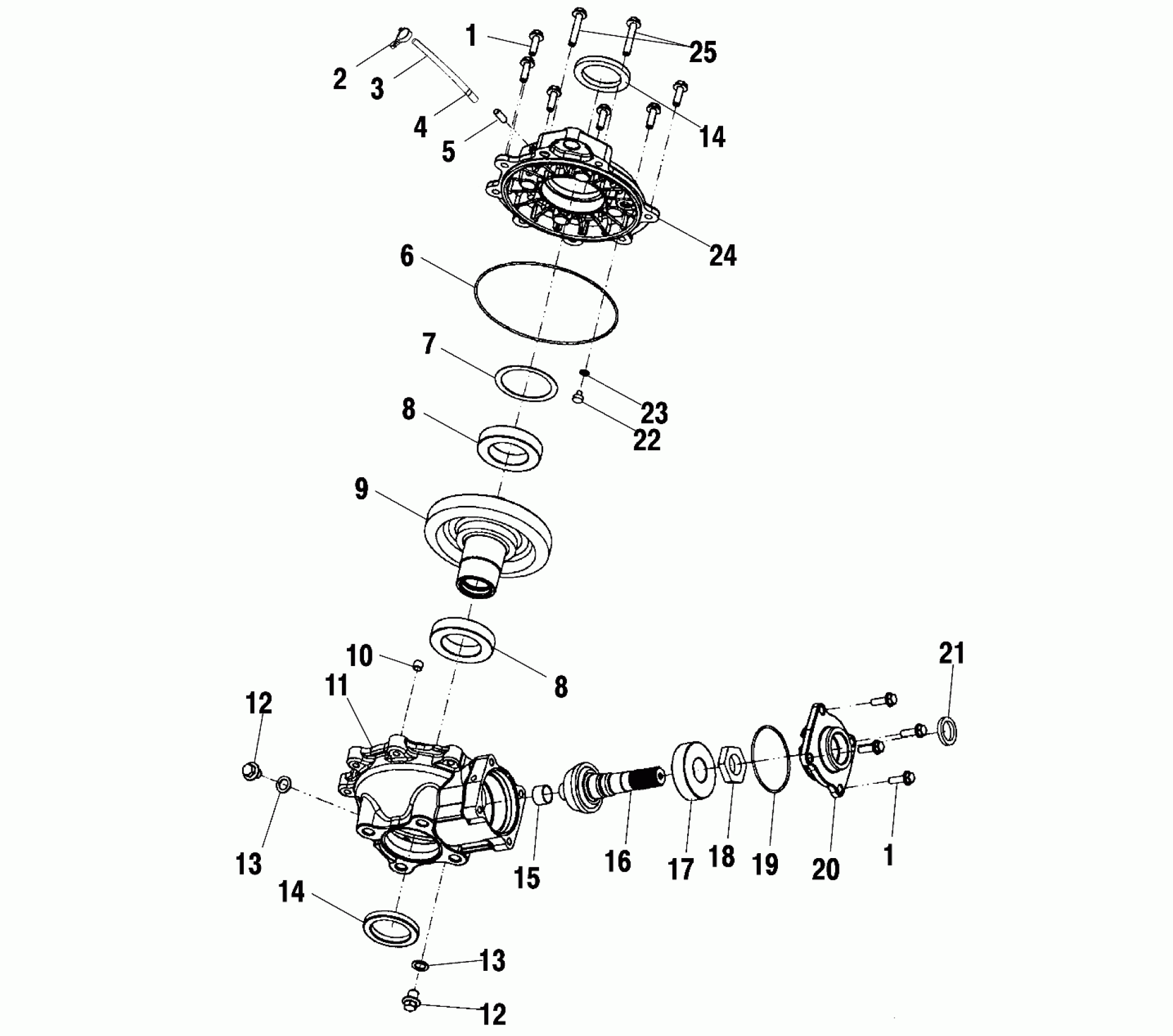

Polaris 500 MAGNUM 4X4, HDS - A00CD50FA REAR HOUSING - A00CD50AA (4954885488C013) Diagram

#

Description
Price

-

GEARCASE,REAR,ASM. (Incl. 1,5-25)(If built after 7/01/99)

1341321

Unavailable

1

Screw

3233252

$5.27

1

Screw

3233252

$5.27

2

CLIP,SILENCER,(10)

7670102

$2.39

3

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

4

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

5

TUBE,VENT

3233524

$7.19

6

O-RING 166

3233587

$32.37

7

SHIM 3.1 X 2.5

3233581

Unavailable

8

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

8

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

9

GEAR,31T

3233740

Unavailable

10

PIPE,KNOCK

3233529

$7.99

11

GEARCASE,REAR HOUSING

3233739

Unavailable

12

PLUG,OIL FILL

3233711

Unavailable

12

PLUG,OIL FILL

3233711

Unavailable

13

Washer

3233324

$8.99

13

Washer

3233324

$8.99

14

Seal

3233256

Unavailable

14

Seal

3233256

Unavailable

15

Bushing

3233577

$19.99

16

SHAFT,PINION,10T

3233738

$242.84

17

BEARING-BALL

3233714

$31.99

18

NUT

3233574

Unavailable

19

O-RING 151

3233588

$10.55

20

GEARCASE,COVER

3233573

Unavailable

21

Seal

3233319

$27.99

22

THRUST BUTTON

3233582

$7.91

23

SHIM .450 X .265

3233583

Unavailable

24

COVER,OUTPUT

3233741

Unavailable

25

Screw

3233585

Unavailable
