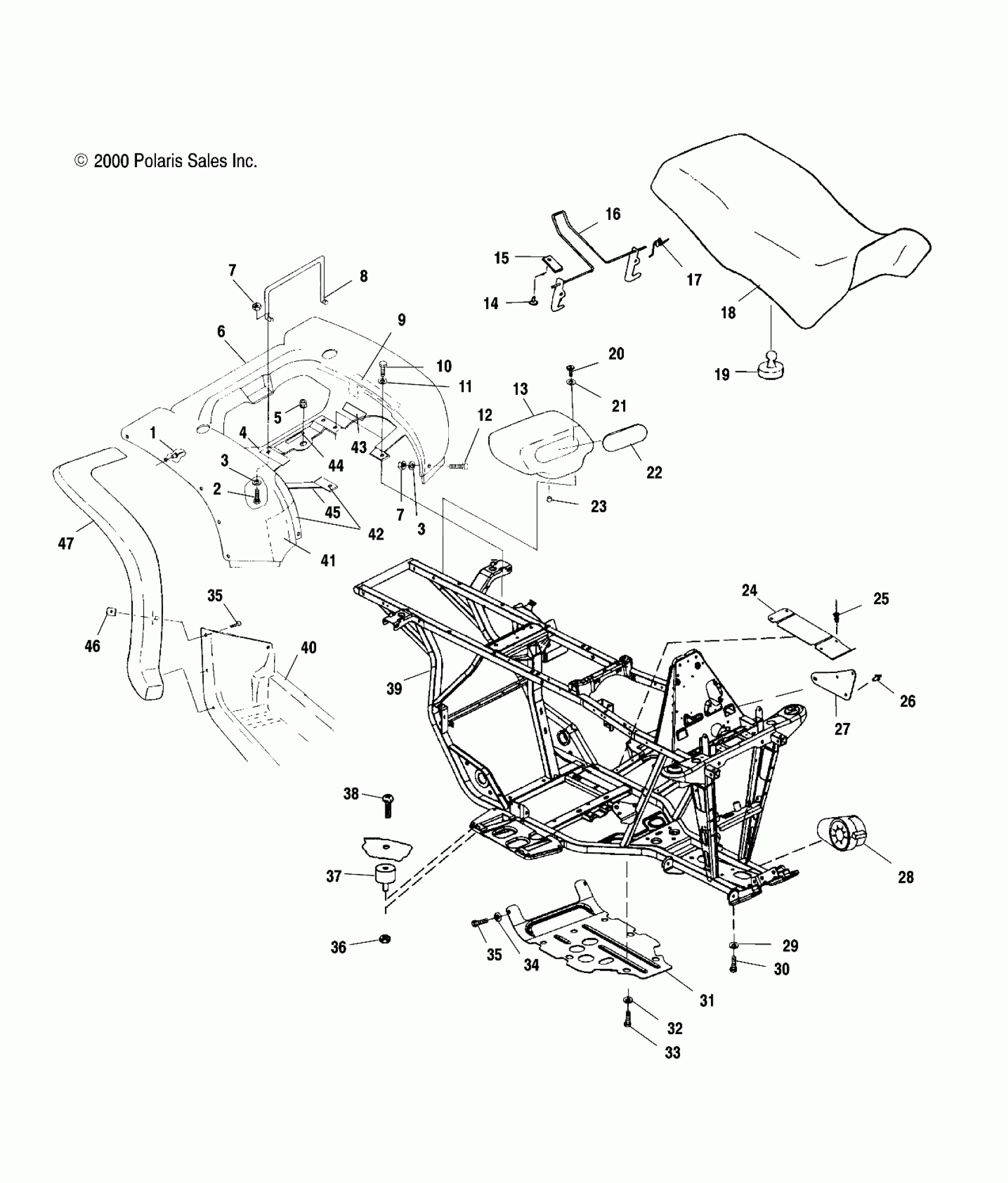

Polaris 500 MAGNUM 4X4, HDS - A00CD50FA REAR CAB and SEAT - A00CD50AA (4954885488A005) Diagram

#

Description
Price

1

RIVET(50)

7661645

Unavailable

2

SCREW(10)

7511930

$2.38

3

WASHER(10)

7555792

$4.76

3

WASHER(10)

7555792

$4.76

4

FOIL,REAR CAB,REAR

5811107

Unavailable

5

Grommet

5411042

$6.35

6

CAB,REAR,GEN 4,EB.GRN.

5432117-195

Unavailable

7

NUT(10)

7541925

$0.79

7

NUT(10)

7541925

$0.79

8

RETAINER,SEAT LATCH

5224592

Unavailable

9

FOIL,TAPE,3 X 12

5811308

$12.94

10

SCREW(10)

7512242

$2.38

11

WASHER, FLAT(10)

7555859

$1.19

12

SCREW(10) Substituted by 7511989

7512085

Unavailable

13

TOOLBOX

5431786

$53.17

14

BLIND RIVET(50)

7621403

$1.19

15

BRACKET,LEVER RETAINER

5211033

$34.99

16

LATCH,SEAT

1040387

$48.56

17

SPRING, LATCH

7041370

$9.52

18

COVER,SEAT,BLK.

2681747-070

$149.75

18

SEAT,BLK

2682441-070

$445.22

18

FOIL,SEATBASE,LG.

5811104

Unavailable

18

FOIL,SEATBASE,SM.

5811105

$9.84

19

Bumper, Rubber

5410414

$3.17

20

SCR-TFHL-1/4-20X0.88 G5 Z SEMS

7517599

$5.56

21

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

22

COVER, TOOLBOX

5431787

Unavailable

23

CAP,DRAIN

5410896

$5.65

24

GUARD-CLUTCH,BLK

5243188-067

$5.71

25

RIVET,INTERLOCK,B(50)

7661638

$1.19

26

RIVET,PLASTI-LOC.(50)

7621509

$1.19

27

STRAP-FUEL PUMP,MTG,BLK

5243829-067

Unavailable

28

Asm., Gearcase (See Front Housing Pg. C11 for Details)

----

Unavailable

29

WASHER(10)

7552603

$0.79

30

SCREW(10)

7512492

$1.19

31

GUARD-ROCK

5433435

Unavailable

32

WASHER-SKID PLATE

7556065

$4.76

33

SCREW,(10)

7517386

$1.19

34

WASHER(10)

7558301

$1.19

35

BOLT(10)

7512232

$1.19

35

BOLT(10)

7512232

$1.19

36

NUT-LOCK(10)

7542122

$1.19

37

MOUNT,RUBBER

5411548

$28.32

38

Screw

7517264

$3.97

39

FRAME,MAIN,4X4 MAG,BLK

1012764-067

Unavailable

40

FOOTWELL,LH,BLK,NYLON

5432221-070

$230.70

40

FOOTWELL-NYLON,RH,BLK

5433219-070

$230.70

41

FOIL FOAM

5811111

Unavailable

42

FOIL,FR,REAR CAB

5811106

Unavailable

43

DECAL,CARB.INFO.

7073761

Unavailable

44

DECAL,FILT.ELEMENT,4-S

7077446

Unavailable

45

FOIL-FOAM,(6X1)

5811087

Unavailable

46

NUT, SPEED(10)

7670057

$1.19

47

MUDGUARD,LH,R.BLK. Substituted by 5431796-070

5431796

Unavailable

47

MUDGUARD,RH,R.BLK. Substituted by 5431797-070

5431797

Unavailable

47

KIT-MUDSKIRT,FULLSET,GEN IV [Item NotAvailable]

2873213

Unavailable
