Description

Price

1

Pin

1930860

Unavailable

1

KIT,BRAKEPAD,R.AXLE,WW (Incl. Spacer and Pin)

2201189

$31.75

1

SPACER,PAD

1910339

Unavailable

2

BLEEDER REPLACEMENT,KIT

2201428

$27.99

2

PISTON-RR CALIPER,DH2P

2201467

$89.03

2

KIT,SEAL,CALIPER

2201385

$64.75

2

CALIPER ASM.BRAKE,DH2P

1910367

$250.96

3

SCREW CAP(10)

7515406

$7.19

4

WASHER(10)

7555806

$1.49

5

Seal

5410988

$4.84

5

Seal

5410988

$4.84

5

Seal

5410988

$4.84

6

LINE-BRAKE,FRT HAND,MAST CYL

1910286

Unavailable

7

LINE-BRAKE,REAR FOOT,MAST CYL

1910288

Unavailable

7

LINE-BRAKE,REAR FOOT,MAST CYL

1910288

Unavailable

8

CLAMP,RUBBER-COATED,.562(10)

7080573

$7.19

9

BOLT(10)

7512232

$1.49

9

BOLT(10)

7512232

$1.49

10

CLIP,BRAKELINE,(.250 ID)

7080762

Unavailable

11

WASHER, FLAT(10)

7558201

$5.79

12

RIVET(50) (If built before 11/15/99)

7661048

Unavailable

13

CLIP-T,DUAL 3/16" LINE (If built before 11/15/99)

7080816

$5.43

13

CLIP,RETAINING,DUAL 3/16" LINE (If built after 11/15/99)

7670113

Unavailable

14

BOLT,BANJO,BRAKE

1930674

Unavailable

14

BOLT,BANJO,BRAKE

1930674

Unavailable

15

NUT LOCK(10)

7542403

$3.99

16

NUT(10)

7542153

$1.59

17

RESERVOIR ASM,R.BRAKE

1930854

$35.99

18

HOSE CLAMP, RED

7080003

$1.49

18

HOSE CLAMP, RED

7080003

$1.49

19

HOSE-RESERVOIR,HB

1910331

$4.95

19

HOSE-RESERVOIR,HB

1910331

$4.95

20

SCREW(10)

7515158

$4.79

20

SCREW(10)

7515158

$4.79

20

SCREW(10)

7515158

$4.79

21

WASHER(10)

7558301

$1.49

22

MT,PIVOT,R.BRAKE,BLK.

1012753-067

Unavailable

23

NUT-LOCK(10)

7542122

$1.49

23

NUT-LOCK(10)

7542122

$1.49

24

BOLT(10)

7512240

$3.99

25

BRAKE ROD,HB,PVT,BLK

1012752-067

Unavailable

26

SPRING-TORSION,BRAKE

7041750

$8.79

27

WASHER(10)

7555919

$4.99

28

BUSHING-PEDAL PIVOT

5433189

$3.99

28

BUSHING-PEDAL PIVOT

5433189

$3.99

29

WASHER,SPRING

7556090

$2.63

30

COTTER PIN(10)

7661401

$1.49

31

BRAKE MSTR CYL,FOOT,BANJO

1910311

$166.01

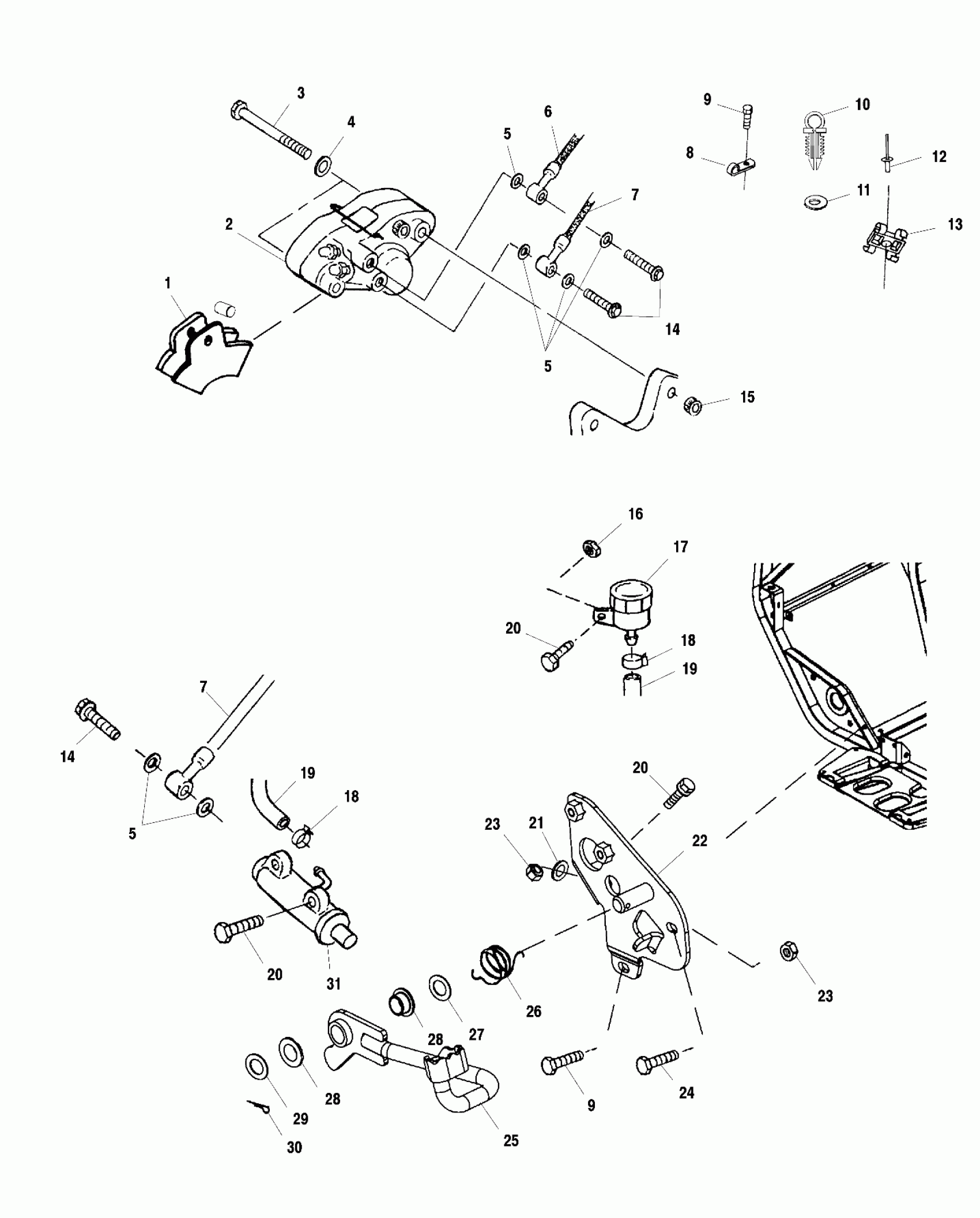

Polaris 500 MAGNUM 4X4, HDS - A00CD50FA REAR BRAKE - A00CD50AA (4954885488C007) Diagram

Pin

KIT,BRAKEPAD,R.AXLE,WW (Incl. Spacer and Pin)

SPACER,PAD

BLEEDER REPLACEMENT,KIT

PISTON-RR CALIPER,DH2P

KIT,SEAL,CALIPER

CALIPER ASM.BRAKE,DH2P

SCREW CAP(10)

WASHER(10)

Seal

Seal

Seal

LINE-BRAKE,FRT HAND,MAST CYL

LINE-BRAKE,REAR FOOT,MAST CYL

LINE-BRAKE,REAR FOOT,MAST CYL

CLAMP,RUBBER-COATED,.562(10)

BOLT(10)

BOLT(10)

CLIP,BRAKELINE,(.250 ID)

WASHER, FLAT(10)

RIVET(50) (If built before 11/15/99)

CLIP-T,DUAL 3/16" LINE (If built before 11/15/99)

CLIP,RETAINING,DUAL 3/16" LINE (If built after 11/15/99)

BOLT,BANJO,BRAKE

BOLT,BANJO,BRAKE

NUT LOCK(10)

NUT(10)

RESERVOIR ASM,R.BRAKE

HOSE CLAMP, RED

HOSE CLAMP, RED

HOSE-RESERVOIR,HB

HOSE-RESERVOIR,HB

SCREW(10)

SCREW(10)

SCREW(10)

WASHER(10)

MT,PIVOT,R.BRAKE,BLK.

NUT-LOCK(10)

NUT-LOCK(10)

BOLT(10)

BRAKE ROD,HB,PVT,BLK

SPRING-TORSION,BRAKE

WASHER(10)

BUSHING-PEDAL PIVOT

BUSHING-PEDAL PIVOT

WASHER,SPRING

COTTER PIN(10)

BRAKE MSTR CYL,FOOT,BANJO
