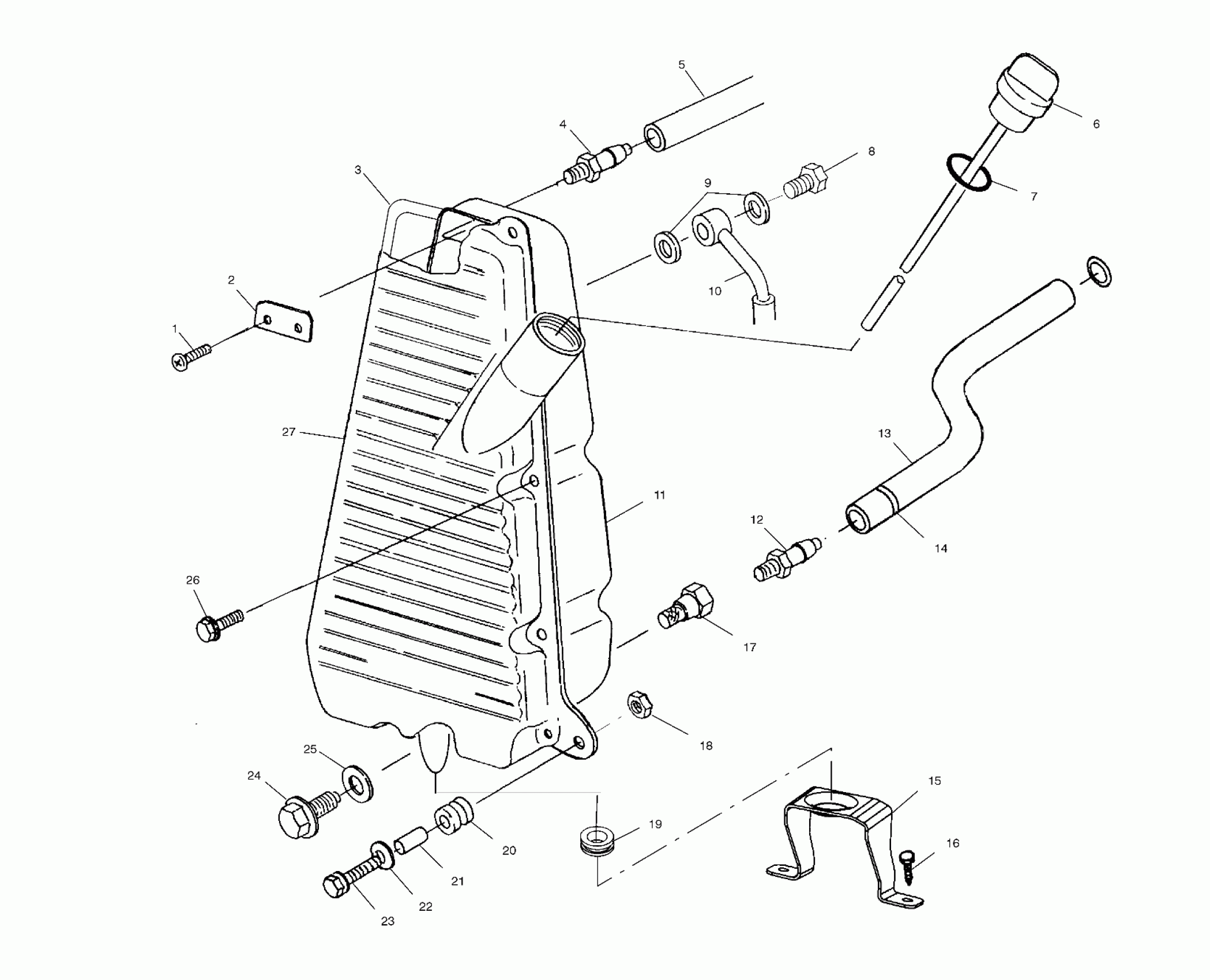

Polaris 500 MAGNUM 4X4, HDS - A00CD50FA OIL TANK - A00CD50AA (4954885488B013) Diagram

#

Description
Price

1

SCREW-SEMS(10)

7511848

$3.99

2

PLATE,VENT,OIL TANK

5211523

$13.99

3

GASKET,OIL RESERVOIR

5830053

$54.99

4

Fitting

7052163

Unavailable

5

DESC NOT_AVAILABLE

8450073-85

Unavailable

6

DIPSTICK

5432289

Unavailable

7

O RING

5410889

Unavailable

8

BOLT

7517102

Unavailable

9

WASHER,COPPER,14MM.

7555896

$1.49

10

TUBE BANJO RETURN

7052240

Unavailable

11

TANK,LH,OIL

5131785

$131.99

12

FITTING,HOSE BR

7052106

$6.23

13

HOSE, 3/8"ID

5411036

Unavailable

14

CLAMP-HOSE,.875-SS

7080474

$8.40

15

BRKT,OIL TANK SUPPORT,BLK

5242817-067

$3.52

16

SCREW,(10)

7517386

$1.49

17

SCREEN,OIL FILTER

2530014

$9.91

18

NUT-LOCK(10)

7542122

$1.49

19

Grommet

5411042

Unavailable

20

GROMMET,MTG,RESERVOIR (10)

5410828

$3.99

21

BUSHING,MTG.

5333204

$26.39

22

WASHER(10)

7558301

$1.49

23

BOLT(10)

7512130

$3.99

24

PLUG,MAG.12 M.

7051524

$27.99

25

WASHER

5850135

$3.19

26

SCREW(10)

7515158

$4.79

27

TANK,OIL,RH

5131255

Unavailable
