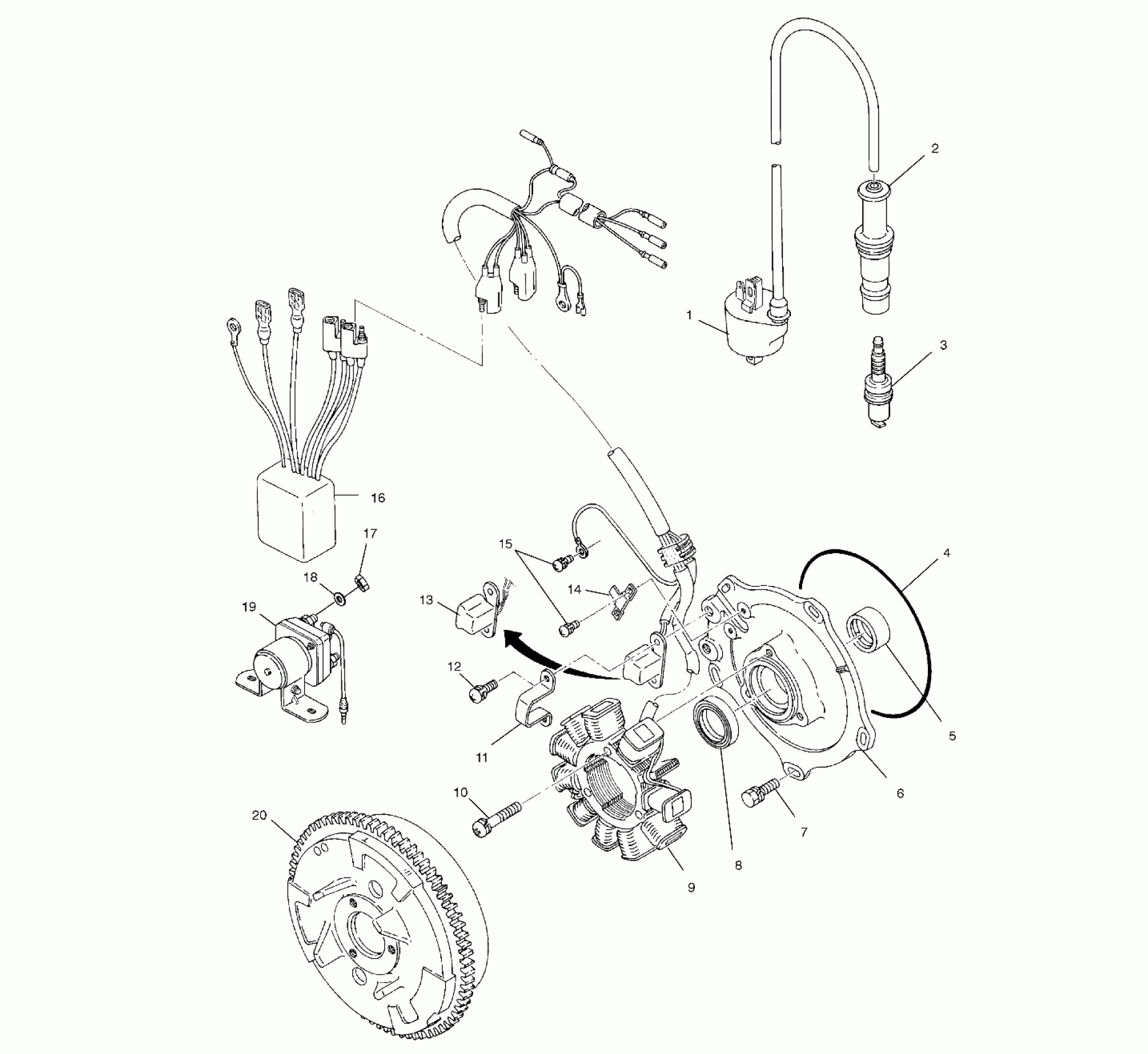

Polaris 500 MAGNUM 4X4, HDS - A00CD50FA MAGNETO - A00CD50FB (4954885488E002) Diagram

#

Description
Price

1

COIL ASM,IGNITION (Incl. 1,2)

3084690

Unavailable

1

COIL,IGNITION

3084979

Unavailable

2

CAP, SPARKPLUG *

3084980

$59.99

3

SPARKPLUG, BKR5E(4)

3070175

$3.99

4

O-RING

3084978

$35.99

5

BEARING, METAL

3084972

Unavailable

6

ASM-PLATE (See Footnote) (Incl. 5,6,8-12,14,15) (S#00-01961 & after)

3086980

Unavailable

6

PLATE (S#00-01961 & after)

3086981

Unavailable

6

PLATE (Up to S#00-01961)

3085560

Unavailable

6

PLATE,ASM. * (See Footnote) (Incl. 5,6,8-12,14,15) (Up to S#00-01961)

3086820

Unavailable

7

BOLT&WASHER ASM.

3081657

$4.79

8

SEAL, OIL

3084973

$27.99

9

STATOR (Incl. 13)(S#00-01961 & after)

3086984

Unavailable

9

STATOR (Incl. 13)(Up to S#00-01961)

3086821

Unavailable

10

SCREW&WASHER ASM. (Up to S#00-01961)

3085563

Unavailable

10

SCREW & WASHER (S#00-01961 & after)

3086985

Unavailable

11

Band, Pulse

3085554

Unavailable

12

SCREW&WASHER ASM.

3084976

Unavailable

13

COIL,PULSER

3085360

Unavailable

14

Clamp

3084977

Unavailable

15

SCREW&WASHER ASM(10)

3081256

$3.19

16

CDI SYSTEM * (Up to S#00-01961)

3085639

Unavailable

16

CDI-SYSTEM (S#00-01961 & after)

3086982

Unavailable

17

Nut

3083073

$2.39

18

WASHER SPRING(10)

3080077

$2.39

19

SWITCH,MAGNETIC *

3085521

$60.70

20

FLYWHEEL (S#00-01961 & after)

3086983

Unavailable

20

FLYWHEEL-W/RING GEAR Substituted by 3086983 (Up to S#00-01961)

3086819

Unavailable
