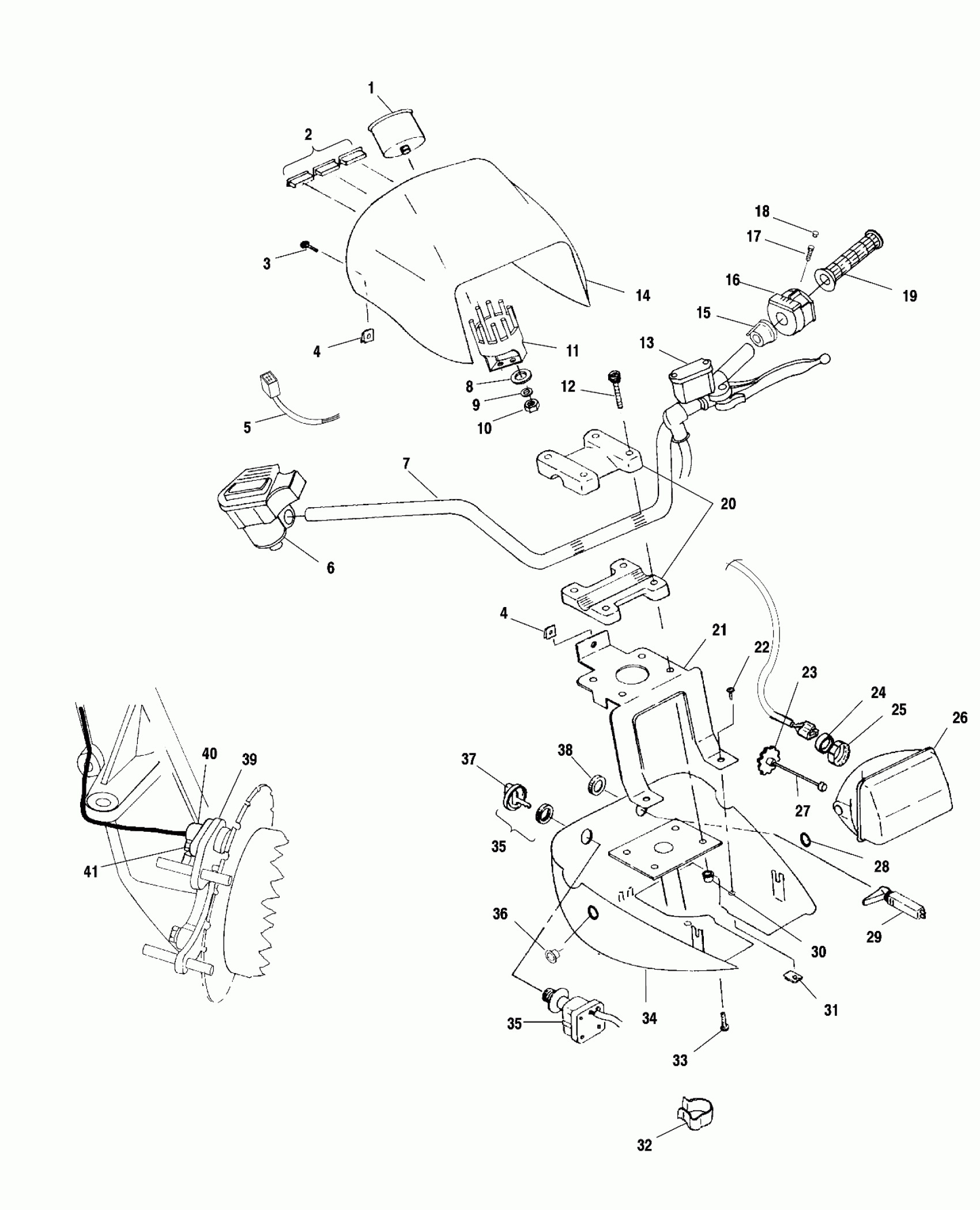

Polaris 500 MAGNUM 4X4, HDS - A00CD50FA HANDLEBAR and HEADLIGHT POD - A00CD50AA (4954885488B011) Diagram

#

Description
Price

1

SPEEDO ASM,3.38",6-PULSE Substituted by 3280363

3280290

Unavailable

1

SPEEDO,ASM,KILO,3.38" 6-PULSE Substituted by 3280358 (FA)

3280312

Unavailable

2

PLUG,INDIC.HOLE

5430967

$5.65

2

INDIC"HOT TEMPERATURE"

4040053

$31.99

2

INDIC"NEUT./REV."

4040054

$31.99

2

INDICATOR,"P",PARK (FA)

4010313

$15.08

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

4

NUT

7670086

$3.99

4

NUT

7670086

$3.99

5

HARNESS-HEADLIGHT POD

2460714

$14.87

5

HARNESS,HDLGHT POD,INT'L (FA)

2460840

Unavailable

6

Asm., Throttle Control (See Controls - Throttle Asm./Cable Pg. B8, Ref. 5)

-------

Unavailable

7

TUBE-HANDLEBAR,GEN 4,POD,BLK

5242987-067

$114.99

8

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

9

WASHER, LOCK,(S.S.)(10)

7555868

Unavailable

10

NUT, BRASS(10)

7541933

$4.99

11

CLAMP,BACK,ELEC.SPEEDO,3.38"

3280291

Unavailable

12

SCREW(10)

7515189

Unavailable

13

Asm., Master Cylinder (See Controls - Master Cylinder/Brake Line Pg. B9 for details)

-------

Unavailable

14

POD,HEADLIGHT,UPPER,EB GREEN

5433042-195

Unavailable

15

SPACER,SWITCH,LH

5432926

$2.63

16

SWITCH-HANDLEBAR,H/L/O,REV/OR

4010262

$203.99

17

SCREW,SET

7517625

$4.79

18

PLUG,HOLE(10)

5432952

$5.59

19

GRIP, HANDLEBAR

5431030

$24.27

20

KIT,H'BAR BLOCK (Incl. Blocks and 12,20,30)

2200774

Unavailable

20

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable

21

BRKT,POD MTG,BLK.

5240586-067

Unavailable

22

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

23

KNOB,ADJUSTING

4032079

$23.99

24

BOOT, HEADLIGHT

5411120

$27.99

25

COLLAR,LOCK

4032077

$27.99

26

BULB,QUARTZ.H/L,INDY

2870448

$24.99

26

LENS&REFLECTOR ASM.

4032075

Unavailable

27

ROD,ADJUSTING

4032078

Unavailable

28

O RING

5410163

$1.60

29

KIT-CHOKE CONTROL

2200188

$24.27

29

CABLE,CHOKE,W/ADJUSTER

7080726

$99.99

30

NUT-LOCK(10)

7542122

$1.49

31

NUT,U-TYPE(10)

7670089

$5.59

32

CLIP,CABLE RETAIN,(10)

7080631

$6.29

33

SCREW(10)

7522021

$3.99

34

POD,H/L,LOW,BLK.

5431811-070

Unavailable

35

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 Your key can be diplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010278

Unavailable

35

Blank, Key, Series 2200, 2300, 2700, 2800. Your key can be diplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010321

Unavailable

35

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

35

SWITCH,IGNITION (Incl. Key)

4110264

$104.24

35

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 Your key can be diplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010278

Unavailable

35

Blank, Key, Series 2200, 2300, 2700, 2800. Your key can be diplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010321

Unavailable

35

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

35

SWITCH,IGNITION (Incl. Key)

4110264

$104.24

36

CAPLUG,#BPF-7/8"-6 BLACK

7080936

$2.39

37

KEY SWITCH KEY COVER

5433534

$12.35

38

Nut

7080229

$19.99

39

SENSOR,HALLEFFECT (If built after 8/09/99)(Incl. 40)

4010298

$111.99

39

SENSOR,HALL EFFECT Substituted by 2201625 (If built before 8/09/99)

4040081

Unavailable

40

CAP-HALL SENSOR (Used with 4010298 only)

5132382

$23.99

41

Screw

7517658

$5.59
