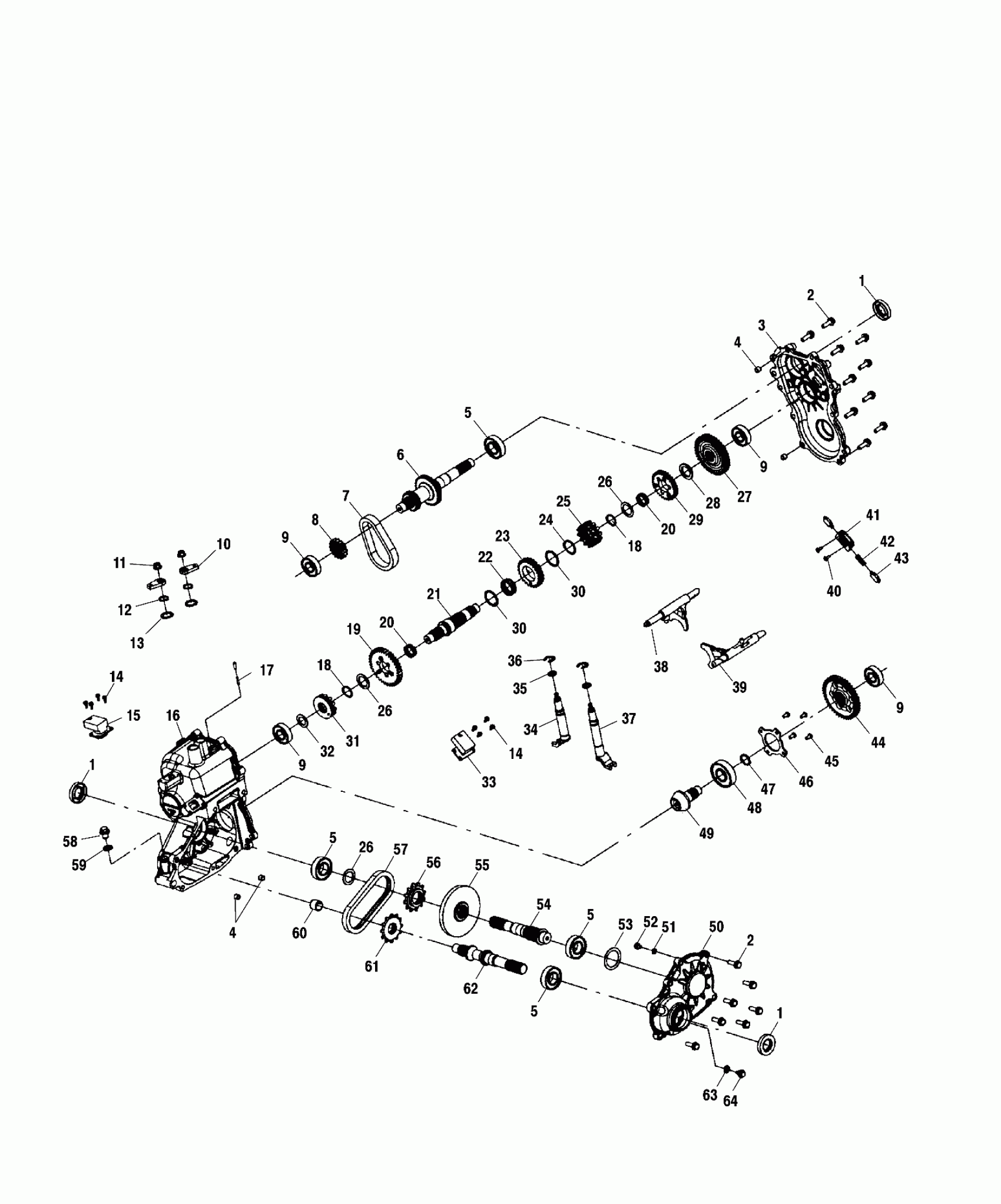

Polaris 500 MAGNUM 4X4, HDS - A00CD50FA GEARCASE - A00CD50AA (4954885488C009) Diagram

#

Description
Price

-

Asm., Gearcase, Main (Incl. 1-64)(AA/AB/FB)(See Gearcase Pg. E7 for FA Model Information) (Incl. 1-64)(AA/AB/FB)(See Gearcase Pg. E7 for FA Model Information)

1341252

Unavailable

1

Seal

3233788

$32.37

1

Seal

3233788

$32.37

1

Seal

3233788

$32.37

2

Screw

3233252

$5.69

2

Screw

3233252

$5.69

3

Gearcase, LH

3233610

Unavailable

4

Pipe, Knock

3233529

$10.99

4

Pipe, Knock

3233529

$10.99

5

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

5

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

5

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

5

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

6

Shaft, Input, 31T

3233604

$188.40

7

Chain, Silent

3233036

Unavailable

8

Gear, 16T w/22T Spline

3233603

$81.75

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

10

Bellcrank

3233153

$32.37

11

NUT

3233961

$3.32

12

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

13

Washer

3233040

$9.52

14

SCREW

3233749

$5.65

14

SCREW

3233749

$5.65

15

Switch, 3 Position

3234019

Unavailable

16

Gearcase, RH

3233902

Unavailable

17

Vent, Tube

3233037

Unavailable

18

RING, RETAINING

3233306

$4.76

18

RING, RETAINING

3233306

$4.76

19

Gear

3233631

$132.54

20

BEARING, NEEDLE

3233103

$31.75

20

BEARING, NEEDLE

3233103

$31.75

21

Shaft, Reverse

3233598

Unavailable

22

BEARING, NEEDLE

3233014

$43.65

23

Sprocket, 24T

3233599

Unavailable

24

Ring, Retaining

3233029

Unavailable

25

Engagement Dog, H/R

3234020

Unavailable

26

WASHER,THRUST

3233619

$24.99

26

WASHER,THRUST

3233619

$24.99

26

WASHER,THRUST

3233619

$24.99

27

Gear, Helical, 40T

3233601

Unavailable

28

Spacer

3233613

$2.41

29

Gear, 30T

3233600

$210.46

30

WASHER

3233012

Unavailable

30

WASHER

3233012

Unavailable

31

Engagement Dog, Low

3233732

$178.08

32

Washer

3233628

Unavailable

33

Switch, 2 Position

3234001

Unavailable

34

Shaft, Shift, H/R

3233627

Unavailable

35

O-Ring

3233548

$33.24

36

Ring, Retaining

3233618

$1.75

37

Shaft, Shift

3233624

$58.73

38

Fork, Shift, H/R

3233602

Unavailable

39

Fork, Shift, Low

3233605

Unavailable

40

Screw, Tapping

3233747

Unavailable

41

Bracket, Interlock

3233309

$20.48

42

Spring

3233032

$13.75

43

Pin, Interlock

3233308

Unavailable

44

Gear, Helical, 44T

3233612

Unavailable

45

Screw

3233608

$5.99

46

Cover, Bearing

3233609

$19.99

47

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

48

Bearing, Ball

3233607

$36.41

49

Subasm., Ground Spiral Bevel [Incl. 55]

3234912

Unavailable

50

Cover, Output

3233781

Unavailable

51

SHIM

3233583

$33.24

52

THRUST BUTTON

3233582

$8.99

53

SHIM

3233611

$34.99

54

Shaft, Rear Output

3233622

Unavailable

55

Subasm., Ground Spiral Bevel [Incl. 49]

3234912

Unavailable

56

Sprocket, 12T w/18T Spline

3233620

Unavailable

57

Chain, Roller

3233626

Unavailable

58

Plug

3233711

Unavailable

59

Washer

3233324

$8.54

60

BUSHING-GARLOCK

3233552

$23.81

61

Sprocket, 12T

3233093

Unavailable

62

SHAFT,FRONT OUTPUT

3233625

$141.65

63

Washer

3233254

$8.08

64

Plug, Drain

3233777

$34.99
