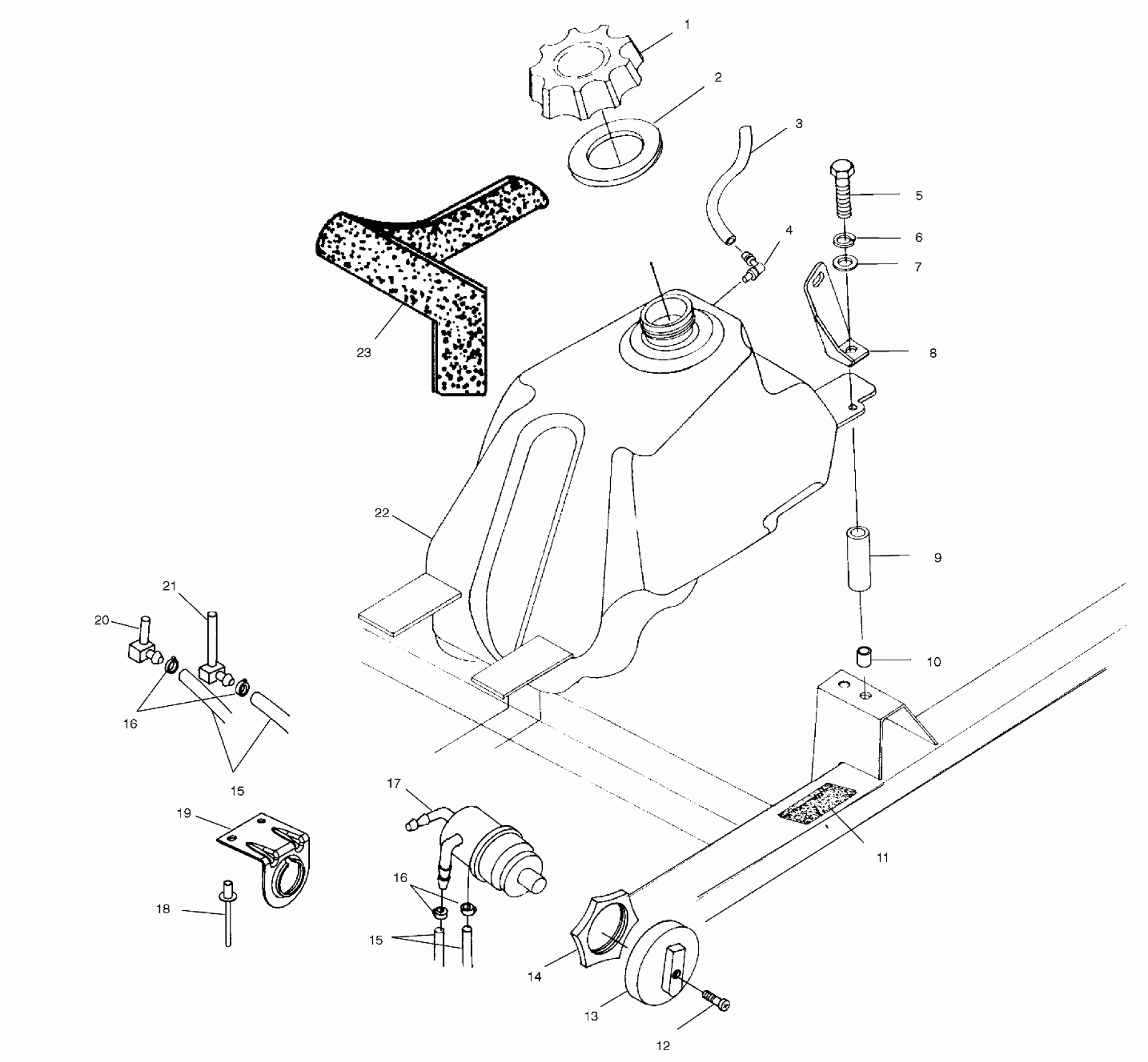

Polaris 500 MAGNUM 4X4, HDS - A00CD50FA FUEL TANK - A00CD50AA (4954885488B001) Diagram

#

Description
Price

1

CAP, GAS, (BLACK)

5430725

$24.27

2

GASKET-GAS CAP

5810144

$5.59

3

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

4

Vent, Tank

5431053

$19.99

5

Bolt

7517451

$5.59

6

LOCK WASHER(10)

7552801

$1.59

7

WASHER(10)

7558301

$1.49

8

BRKT,LH.R.FUELCOVER,BLK.

5222154-067

Unavailable

8

BRKT,RH.R.FUELCOVER,BLK.

5222155-067

Unavailable

9

Spacer

5332457

Unavailable

10

NUTSERT,HEX(10)

7547069

$3.99

11

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

12

SCREW(10)

7517505

$1.59

13

KNOB,FUEL VALVE

5432559

$10.39

14

NUT,FUELVALVE,ATV

5432733

Unavailable

15

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

15

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

16

HOSE CLAMP, RED

7080003

$1.49

16

HOSE CLAMP, RED

7080003

$1.49

17

VALVE,3-WAY

7052161

$39.99

18

RIVET-3/16-.090-.290

7661637

$1.49

19

BRKT,FUELVALVE,BLK

5240577-067

Unavailable

20

FITTING,FUEL OUT,MAIN,4",Y

7052150

$27.99

21

FITTING,FUEL OUT,RES.,Z

7052149

$23.99

22

TANK ASM,FUEL Substituted by 2520174 (Incl. 4,20,21)

2520143

Unavailable

23

FOAM,SEAL,25"

5811942

Unavailable
