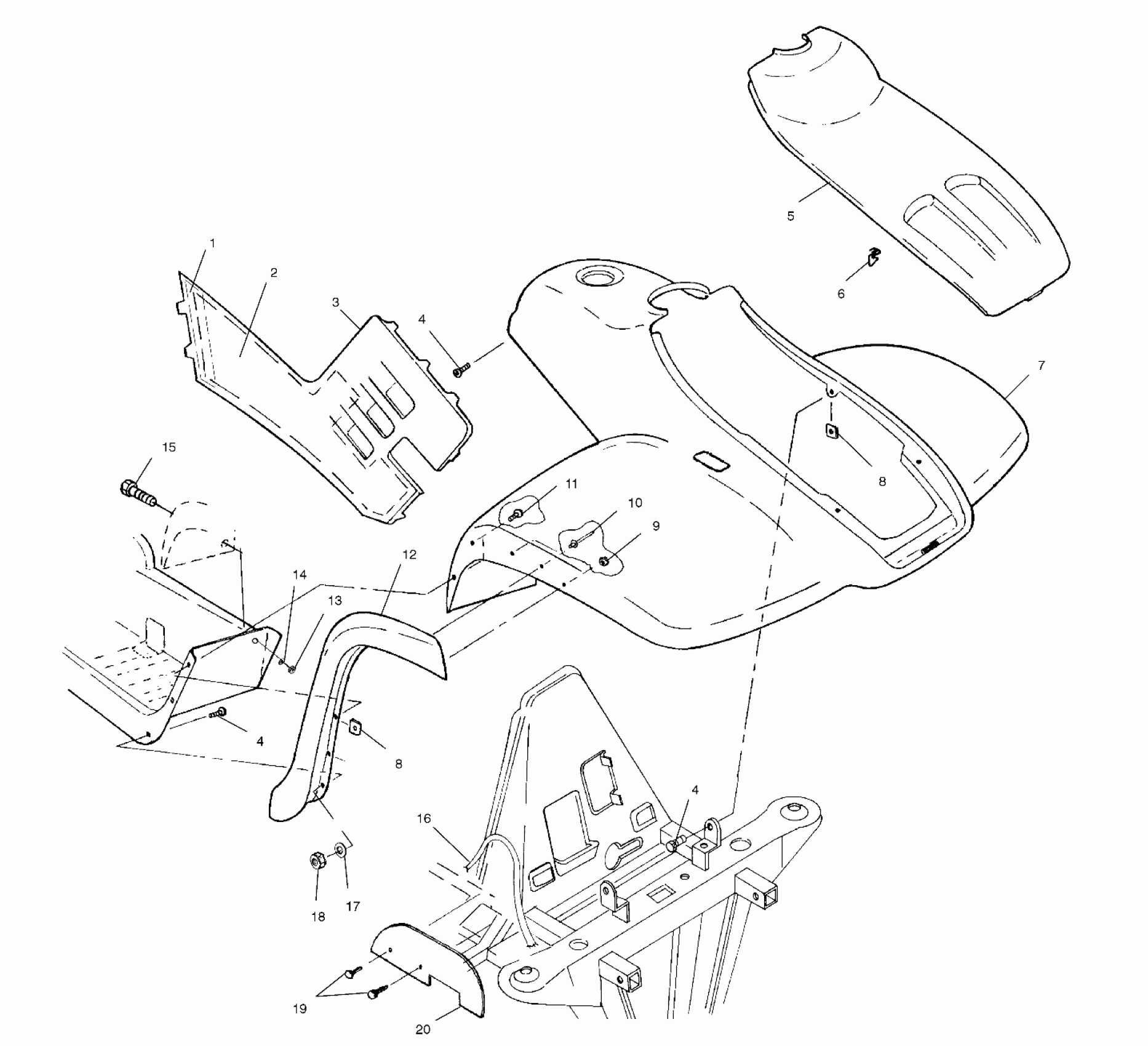

Polaris 500 MAGNUM 4X4, HDS - A00CD50FA FRONT CAB - A00CD50AA (4954885488A007) Diagram

#

Description
Price

1

FOIL,RH,SIDEPANEL,GEN IV

5811491

Unavailable

2

FOIL,FOAM,SIDEPANEL(300)

5811210

$34.92

3

PANEL/FOIL,RH,E.B.GR.

2631977-195

Unavailable

3

PANEL-SIDE,LH,MODIFIED,EB GRN (If built before 3/13/00)

5433263-195

$87.30

3

PANEL ASM/FOAM,LH,EB GREEN (If built after 3/13/00)

2632285-195

Unavailable

4

BOLT(10)

7512232

$1.19

4

BOLT(10)

7512232

$1.19

4

BOLT(10)

7512232

$1.19

5

COVER,FRONT,E.B.GRN.

5432088-195

Unavailable

6

CLIP,SPRING(10)

7670085

$12.34

7

CAB,FRONT,SVC,E.B. GREEN Substituted by 2631990-195

2632031-195

Unavailable

8

NUT, SPEED(10)

7670057

$1.19

8

NUT, SPEED(10)

7670057

$1.19

9

NUT, PUSH-ON(10)

7670068

$2.38

10

RIVET(50)

7661645

Unavailable

11

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.19

12

MUDGUARD,LH,FRT.BLK. Substituted by 5431798-070

5431798

$79.99

12

MUDGUARD,RH,FRT.BLK. Substituted by 5431799-070

5431799

$84.99

13

NUT(10)

7541925

$0.79

14

WASHER(10)

7555792

$4.76

15

SCREW(10) Substituted by 7511989

7512085

Unavailable

16

LINE,BREATHER,3/8 ID.

8450073-600

Unavailable

17

WASHER(10) Substituted by 7558221

7555931

$2.38

18

NUT-LOCK(10)

7542122

$1.19

19

RIVET,PLASTI-LOC.(50)

7621509

$1.19

20

SHIELD-DEFLECTOR

5811917

$7.38
