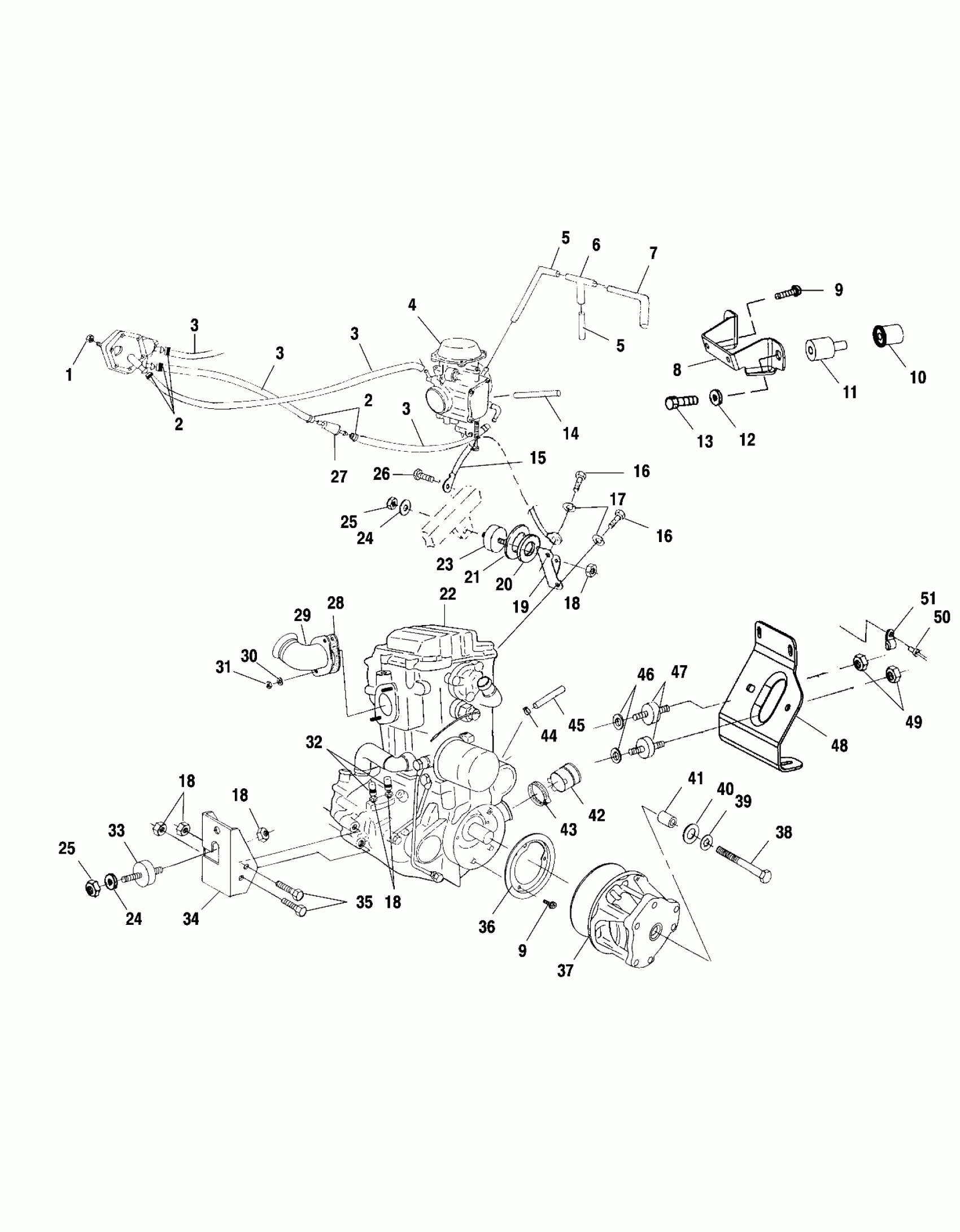

Polaris 500 MAGNUM 4X4, HDS - A00CD50FA ENGINE MOUNTING - A00CD50AA (4954885488A013) Diagram

#

Description
Price

1

NUT-M5X.8,HX NYL-Y

7546601

$1.49

2

HOSE CLAMP, RED

7080003

$1.49

2

HOSE CLAMP, RED

7080003

$1.49

3

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

3

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

3

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

3

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

4

Asm., Carburetor (See Carburetor Pg. D8, Ref. 47)

-------

Unavailable

5

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

5

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

6

FITTING, TEE

7052075

$9.59

7

LINE,BREATHER,3/8 ID.

8450073-600

Unavailable

8

BRKT, CARB.MT.

5240609-067

Unavailable

9

Screw and Washer (See Crankcase Pg. D10, Ref. 6)

-------

Unavailable

9

Screw and Washer (See Crankcase Pg. D10, Ref. 6)

-------

Unavailable

10

NUTSERT,HEX(10)

7547069

$3.99

11

MOUNT,RUBBER,CARB

3021086

$13.99

12

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

13

BOLT(10)

7515106

$2.39

14

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

15

CABLE,GND-ENGINE

4010132

Unavailable

16

BOLT(10)

7512315

$4.79

16

BOLT(10)

7512315

$4.79

17

LOCK WASHER(10)

7552901

$1.49

18

NUT

7547108

$4.79

18

NUT

7547108

$4.79

18

NUT

7547108

$4.79

18

NUT

7547108

$4.79

19

MOUNT,ENGINE,TOP,BLK

5242936-067

$5.75

20

WASHER(10)

7555823

$3.99

21

SPACER-MOTOR MNT TOP

5132007

Unavailable

22

ENG.(S.B.)EH50PLE-01 (EH50PLE08) NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required

3085556

Unavailable

23

MOUNT-RUBBER,TOP,60 DURO

3021045

Unavailable

24

WASHER(10)

7555806

$1.49

24

WASHER(10)

7555806

$1.49

25

NUT LOCK(10)

7542403

$3.99

25

NUT LOCK(10)

7542403

$3.99

26

SCREW,(10)

7517386

$1.49

27

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

28

Gasket, Exhaust (See Cylinder Pg. D6, Ref. 20)

-------

Unavailable

29

MANIFOLD,BLK

1260978-029

Unavailable

30

WASHER LOCK ,(10)

3080530

$3.19

31

NUT(10)

3080285

Unavailable

32

CLAMP-HOSE,.875-SS

7080474

$8.40

33

MOUNT,RUBBER,TOP

3110044

Unavailable

34

MOUNT,LOW.FR.ENGINE,BLK.

5242818-067

$40.19

35

BOLT(10)

7515417

$4.79

36

Bracket, Retainer, Seal (See Clutch Cover Pg. C4, Ref. 18)

-------

Unavailable

37

Asm., Drive Clutch, ATV-06 (See Drive Clutch Pg. C1 for Details)

-------

Unavailable

38

BOLT(10)

7512566

$30.79

39

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

40

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

41

BUSHING-.437 X.770 X.50

5430261

$7.19

42

BOOT,CLUTCH INTAKE

5410421

$11.19

43

CLAMP, NARROW BAND(10)

7080511

$4.79

44

CLAMP,HOSE,SPRING

7080694

$6.53

45

Hose, Breather (See Air Box Pg. B2, Ref. 12)

-------

Unavailable

46

WASHER, FLAT(10)

7555815

$3.99

47

MOUNT,RUBBER,FRONT (If built before 1/01/00)

3110046

Unavailable

47

MOUNT,RUBBER,REAR,60 DURO (If built after 1/01/00)

3021119

Unavailable

48

Mount, Motor, Rear (See Transmission Mounting Pg. D4, Ref.11)

-------

Unavailable

49

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59

50

RIVET(50)

7621462

$1.49

51

CLAMP,NYLON,CABLE(10)

7080539

$4.79
