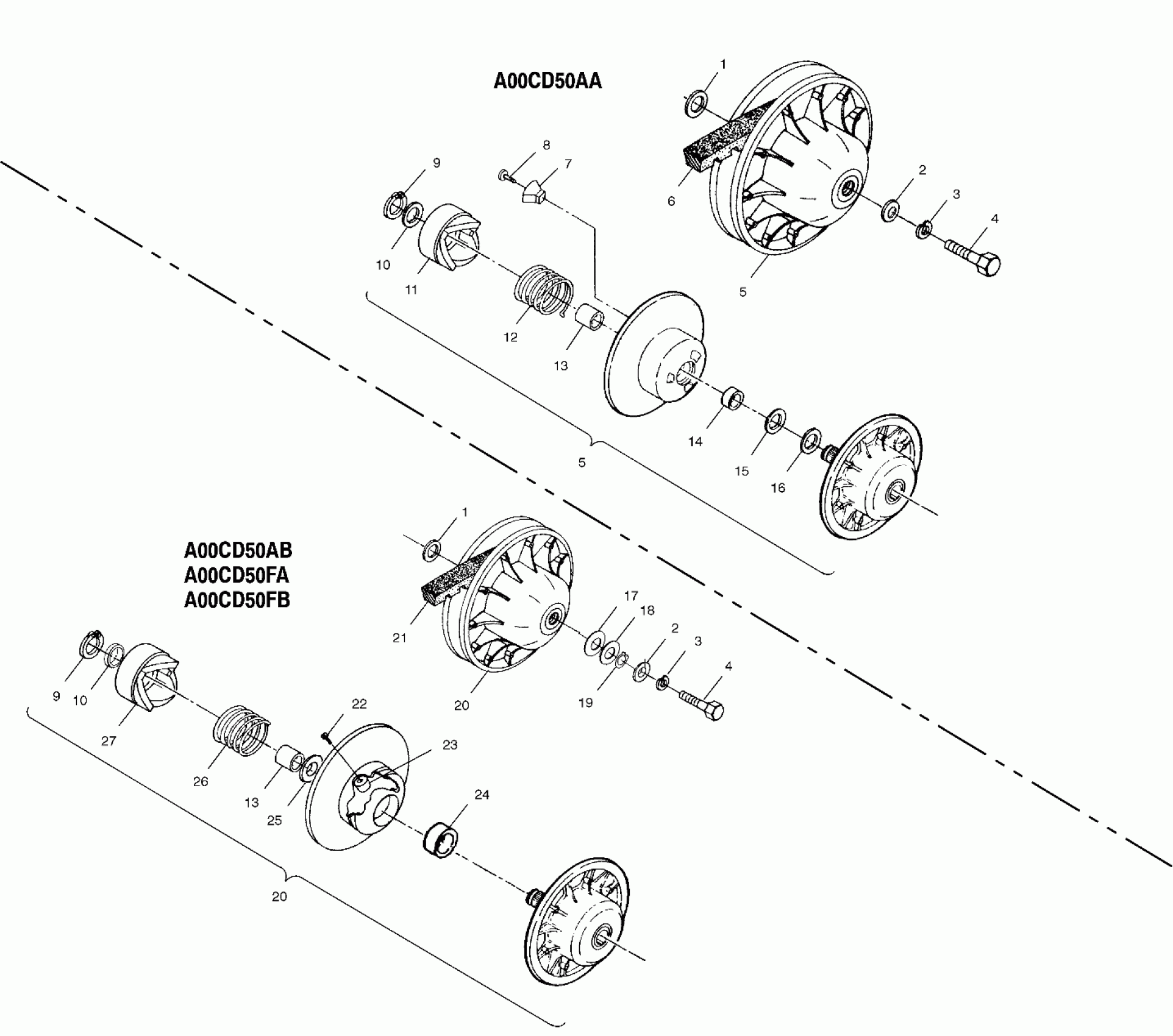

Polaris 500 MAGNUM 4X4, HDS - A00CD50FA DRIVEN CLUTCH - A00CD50AA (4954885488C003) Diagram

#

Description
Price

1

BUSHING-7/8 X 3/8 X 16 GA-Y

7556120

Unavailable

1

BUSHING-7/8 X 3/8 X 16 GA-Y

7556120

Unavailable

2

WASHER, DOMED(10)

5220646

$2.39

2

WASHER, DOMED(10)

5220646

$2.39

3

LOCK WASHER(10)

7552901

$1.49

3

LOCK WASHER(10)

7552901

$1.49

4

BOLT(10)

7515382

$2.39

4

BOLT(10)

7515382

$2.39

5

CLUTCH,DRVN,3-ANGLE,HVY RET (Incl. 7-10,13-16)(A00CD50AA)

1322182

$614.99

5

CLUTCH,DRVN,3-ANGLE,HVY RET (Incl. 7-10,13-16)(A00CD50AA)

1322182

$614.99

6

BELT,DRIVE,ATV,CLOSE TOL(5)

3211077

$63.99

7

BUTTON,RAMP

5430766

Unavailable

8

BOLT(10)

7511854

$1.49

9

RING,RET.

7710448

$3.19

9

RING,RET.

7710448

$3.19

10

SPACER(10)

5210752

$1.59

10

SPACER(10)

5210752

$1.59

11

RAMP,STA,COMP (MACH) (If built before 4/01/00)

5132344

$79.99

11

RAMP,STA.MACH,COMP MOD,HVY RET Substituted by 5132344 (If built after 4/01/00)

5131447

$77.21

12

SPRING,CLUTCH,(RED)

7041198

$52.60

13

BUSHING-MOVEABLE, 1.0 DU (1 Inch)

3576511

$27.99

13

BUSHING-MOVEABLE, 1.0 DU (1 Inch)

3576511

$27.99

14

BUSHING, DRIVEN (1/2 Inch)

3576504

$23.99

15

WASHER(10) (.030)

7556804

Unavailable

16

WASHER(10) (.020)

7555898

Unavailable

16

WASHER(10) (.025)

7556076

Unavailable

17

Washer

7556013

Unavailable

18

Bushing

7556010

Unavailable

19

RING,RETAIN.HD.

7710461

Unavailable

20

CLUTCH,DRVN,BRKG,4-STRK. (Incl. 9,10,13,22-25)(AB)(FA)(FB)

1322190

Unavailable

20

CLUTCH,DRVN,BRKG,4-STRK. (Incl. 9,10,13,22-25)(AB)(FA)(FB)

1322190

Unavailable

21

BELT,DRIVE,ENG.BRK.(5)

3211069

$67.99

22

SCREW, SPECIAL

7517323

$13.59

23

ROLLER-TAPER,SP-21,MACH

1321977

$31.99

24

Bearing

3585710

$19.99

25

WASHER-2.06X2.62X.105-Y

5211115

$3.99

26

SPRING,DRVN,4-STK,WHT/GRN

7041636

Unavailable

27

RAMP,STA.BRAKE,4STRK,MACH

5131674

$83.99
