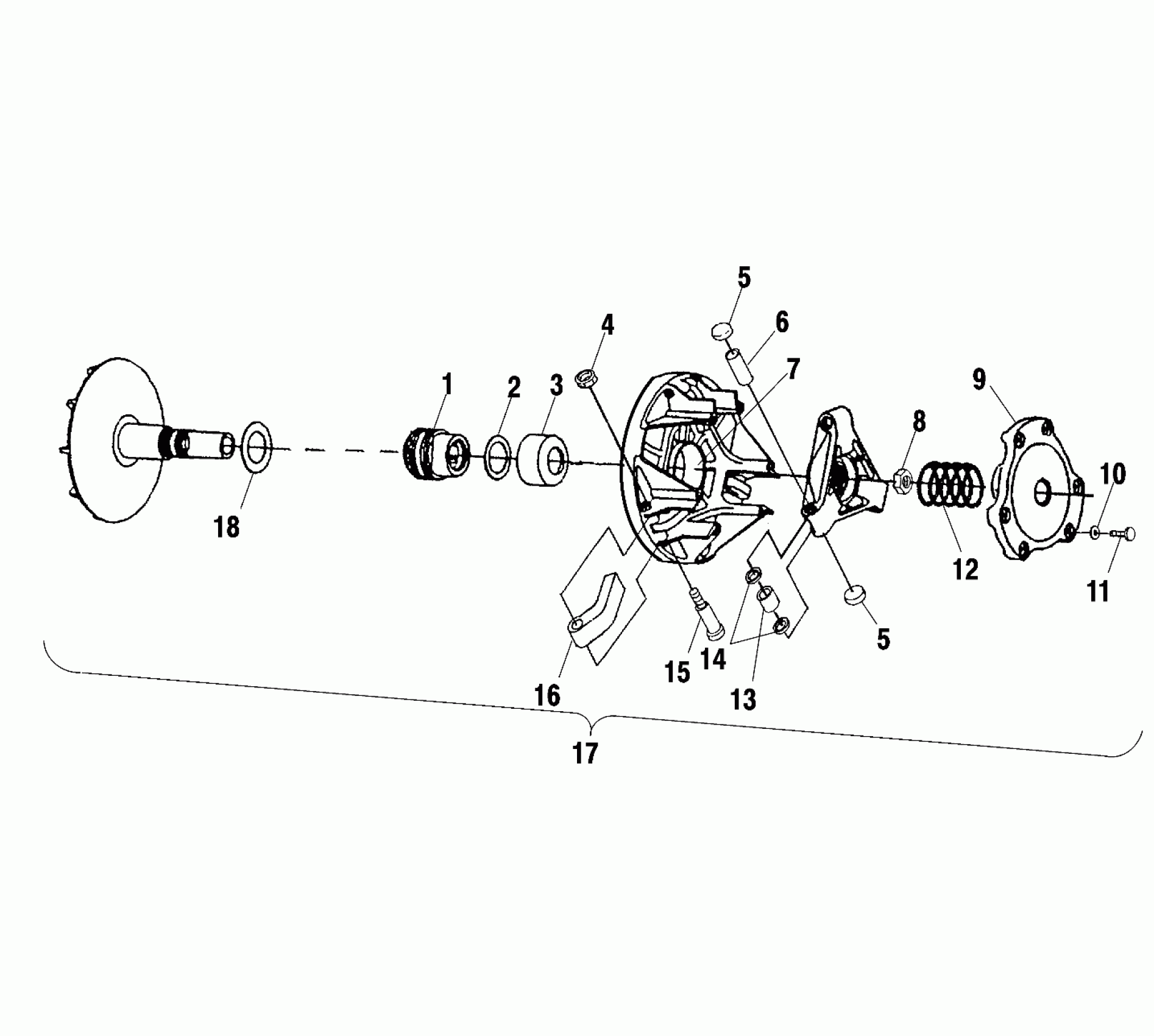

Polaris 500 MAGNUM 4X4, HDS - A00CD50FA DRIVE CLUTCH - A00CD50AB (4954885488C002) Diagram

#

Description
Price

1

CLUTCH,DRIVE,1-WAY,HLRD

1520231

$294.99

2

WASHER Substituted by 7556202

7556009

$6.17

3

SPACER-1.25X2.25,PM

5631119

Unavailable

4

NUT FLEX LOC(10)

7541906

$3.19

5

BUTTON,CLUTCH

5431936

Unavailable

5

BUTTON,CLUTCH

5431936

Unavailable

6

PIN-ROLLER

5020422

$2.39

7

Bearing

3585712

$31.99

8

NUT,JAM Substituted by 2201615

7547130

Unavailable

9

BEARING, COVER,(10)

3576510

$9.59

10

LOCK WASHER(10)

7552801

$1.59

11

BOLT(10) Substituted by 7512163

7512176

Unavailable

12

SPRING,CLUTCH

7041157

$47.99

13

ASM-ROLLER AND BUSHING

1321457

$40.46

14

WASHER,MULTILUBE

5430945

$1.59

15

BOLT,SPECIAL(10)

7512266

$3.19

16

WT,SHIFT, 10MH(6)

5630513

$30.88

17

CLUTCH,DRIVE,BRAKING (Incl. All Less 4,12)

1321706

$562.31

18

WASHER Substituted by 7556204

7556008

$10.80
