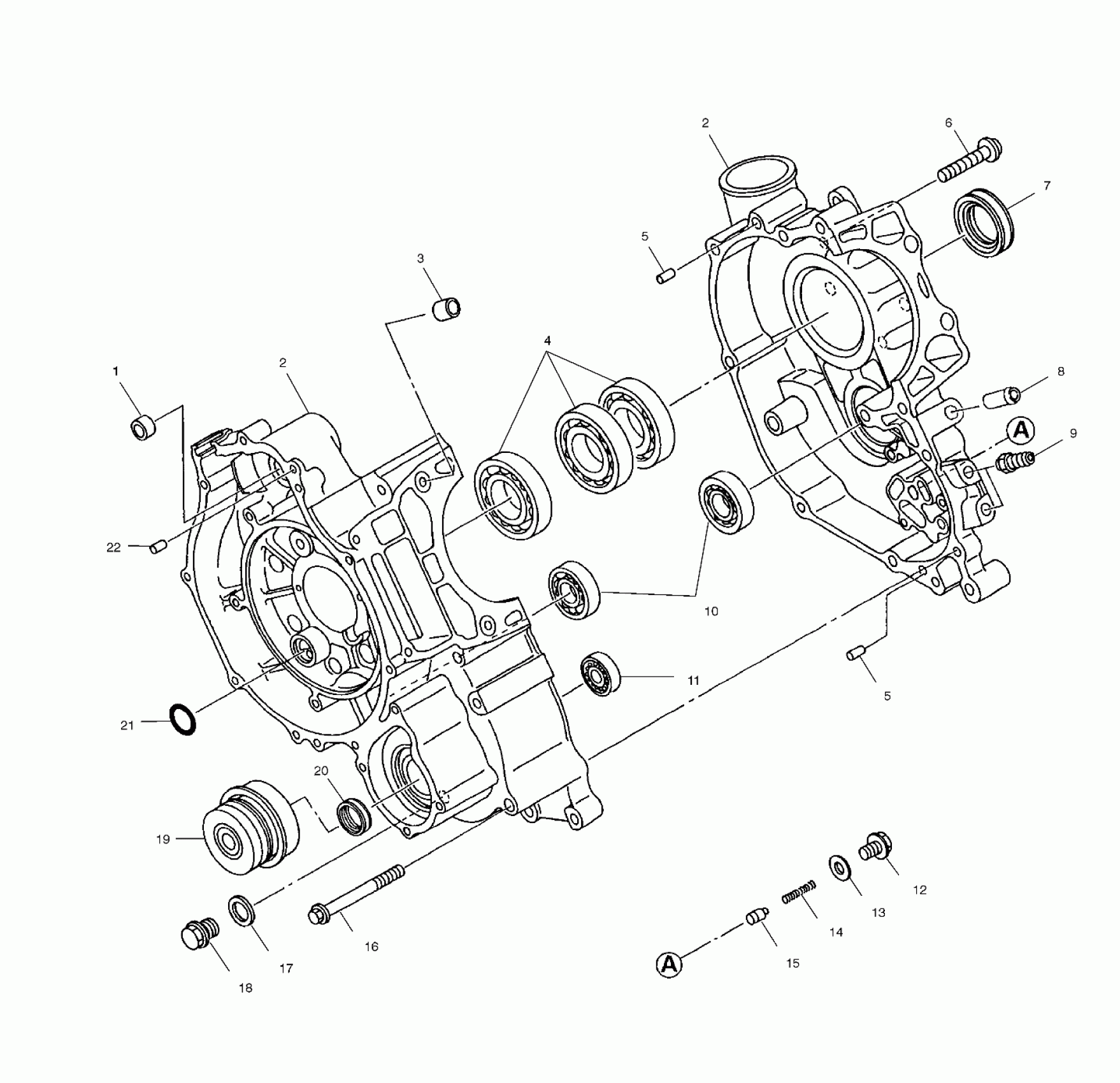

Polaris 500 MAGNUM 4X4, HDS - A00CD50FA CRANKCASE - A00CD50FB (4954885488D010) Diagram

#

Description
Price

1

BUSHING, STARTER

3083669

Unavailable

2

CRANKCASE ASM. (See Footnote) (Incl. 1,4,5,7,10,11,16,19,20,22)

3085633

$591.27

2

CRANKCASE ASM. (See Footnote) (Incl. 1,4,5,7,10,11,16,19,20,22)

3085633

$591.27

3

PIN,STRAIGHT

3084838

Unavailable

4

BEARING, BALL

3080676

Unavailable

5

Pin, Dowel

3084840

$6.46

5

Pin, Dowel

3084840

$6.46

6

SCREW & WASHER(10)

3084205

$3.97

7

SEAL, OIL

3084839

$28.32

8

PIPE,AIR BREATHER

3085525

Unavailable

9

Union

3084842

$32.37

10

BEARING,BALL

3084834

Unavailable

11

BEARING,BALL

3084835

$31.75

12

PLUG

3084845

Unavailable

13

GASKET,(ALUM.)(10)

3084846

$5.65

14

SPRING

3084844

$4.84

15

VALVE-ONEWAY

3086810

Unavailable

16

BOLT,FLANGE

3084841

$3.17

17

GASKET

3082956

$4.84

18

PLUG Substituted by 3086749

3083453

Unavailable

19

SEAL,MECHANICAL

3084837

$68.79

20

SEAL, OIL

3084836

Unavailable

21

O-RING

3084847

$6.46

22

PIN, DOWEL Substituted by 3086838

3080103

$7.14
