- 500 MAGNUM 4X4, HDS - A00CD50FA
CLUTCH COVER - A00CD50AA (4954885488C004)

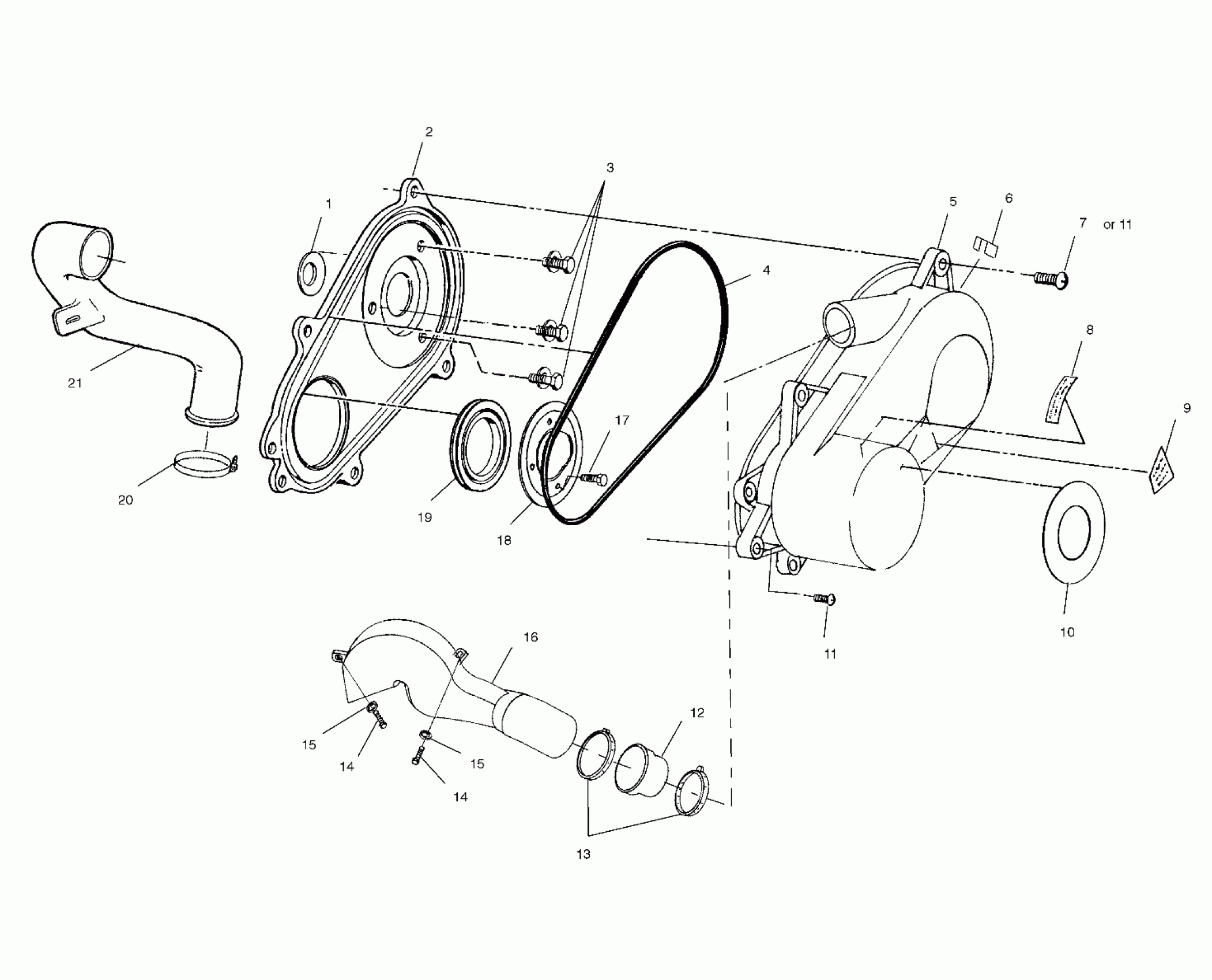

Polaris 500 MAGNUM 4X4, HDS - A00CD50FA CLUTCH COVER - A00CD50AA (4954885488C004) Diagram
#
Description
Price
1
SEAL-CLUTCH COVER,TRANSMISSION
5411901
Unavailable
2
COVER,CLUTCH,INNER,SVC (Incl. 4,7,11,19)(If built before 1/03/00)
2201421
Unavailable
2
INNER CLUTCH CVR,SVC,KIT (Incl. 4,7,19)(If built after 1/03/00)
2201678
$155.99
3
SCR-TFHL-1/4-20X0.88 G5 Z SEMS (With 2201678)
7517599
$5.59
3
BOLT /WASHER,1-1/8 (With 2201520)
7517601
$11.43
4
SEAL,CLUTCHCOVER
5521301
$30.88
5
COVER-CLUTCH OUTER,HV Substituted by 5433451-328 (If built after 1/03/00)
5433451
Unavailable
5
DESC NOT_AVAILABLE (If built before 1/03/00)
5433540-328
Unavailable
6
CLIP,CLUTCH COVER(10) (With 2201520)
7670051
$2.99
7
SCREW(10) (With 2201520)
7512093
$1.49
8
DECAL,WARNING,CLUTCH CVR
7078689
Unavailable
9
DECAL,ENG/CLUTCH MOD. Substituted by 7078689
7077377
Unavailable
10
DECAL"AUTO./EBS",CLUTCH (AB)(FA)(FB)
7077666
Unavailable
11
SCREW(10) (Qty. 2 with 2201520)(Qty. 9 with 2201678)
7512094
$1.59
11
SCREW(10) (Qty. 2 with 2201520)(Qty. 9 with 2201678)
7512094
$1.59
12
BOOT,DUCT,HI-FLOW
5411489
Unavailable
13
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
$2.39
14
SCREW,(10) (Use qty. 2 with 5433744)
7517386
$1.49
14
SCREW,(10) (Use qty. 2 with 5433744)
7517386
$1.49
15
WASHER(10)
7558301
$1.49
15
WASHER(10)
7558301
$1.49
16
DUCT-AIR OUTLET CLUTCH (If built before 11/08.99)
5433172
Unavailable
16
DUCT,AIR OUTLET,CLUTCH (If built after 11/08.99)
5433744
Unavailable
17
Screw and Washer (See Crankcase Pg. D10, Ref. 6)
-------
Unavailable
18
BRKT,RETAINER SEAL,BLK. Substituted by 5242046-067
5240409-067
Unavailable
19
Seal, Cover Case
5410575
Unavailable
20
CLAMP, NARROW BAND(10)
7080511
$4.79
21
DUCT,INLET,DOWN TUBE
5432698
Unavailable
