- 500 MAGNUM 4X4, HDS - A00CD50FA
A-ARM/STRUT MOUNTING - A00CD50AA (4954885488B014)

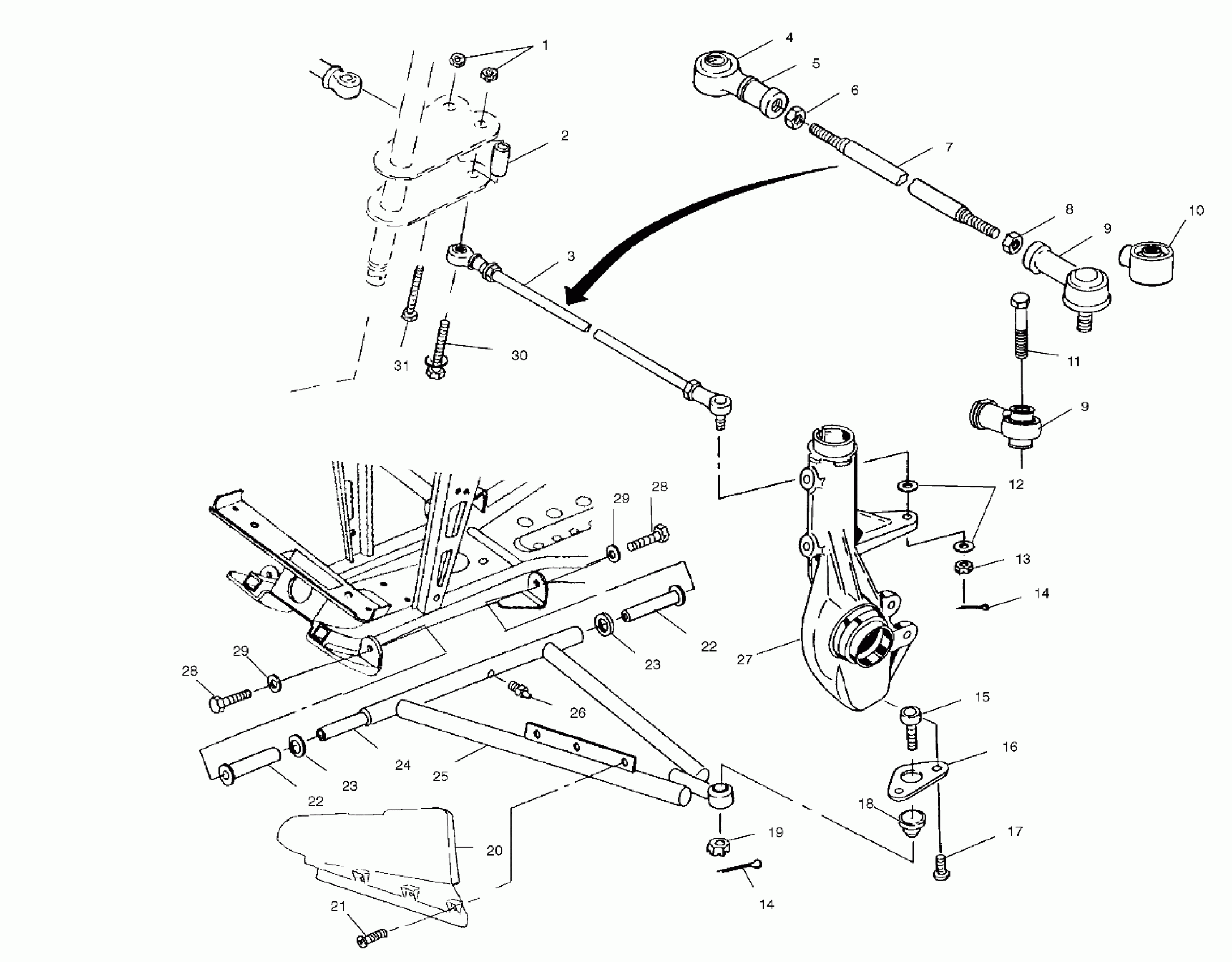

Polaris 500 MAGNUM 4X4, HDS - A00CD50FA A-ARM/STRUT MOUNTING - A00CD50AA (4954885488B014) Diagram
#
1
NUT LOCK(10)
7542403
$3.99
2
BUSHING
5333367
$6.63
3
TIEROD ASM,1/2-20X13.40 Substituted by 2201741 (Incl. 4-9)(If Built before 8/16/99)
1820567
$157.84
3
TIE,ROD,1/2-20X13.4,ASM. (Incl. 4-9)(If Built after 8/16/99)
1820805
Unavailable
4
SEAL,BOOT,ROD END,1/2 IN
5411291
Unavailable
5
ROD END,RH
7061034
$54.04
6
NUT-JAM(10)
7542711
$2.39
7
ROD,TIE
5020926
$39.99
8
NUT,LH,JAM(10)
7547028
$2.39
9
ROD,END,10MM,1/2-20LH,42 DEG (If built after 8/16/99)
7061054
Unavailable
9
ROD END,LH Substituted by 2201743 (If built before 8/16/99)
7061033
$56.65
9
ROD,END,10MM,1/2-20LH,42 DEG (If built after 8/16/99)
7061054
Unavailable
9
ROD END,LH Substituted by 2201743 (If built before 8/16/99)
7061033
$56.65
10
BOOT,SEAL,ROD END,10MM
5411920
Unavailable
11
BOLT-M10X1.25X57 HX WASH HD Substituted by 7517909 (If built after 8/16/99)
7517674
Unavailable
12
WASHER(10) (If built before 8/16/99)
7555806
$1.49
12
WASHER (If built after 8/16/99)
7556099
$1.59
13
NUT, CASTLE(10)
7546904
$4.79
14
PIN COTTER(10)
7661203
$1.49
14
PIN COTTER(10)
7661203
$1.49
15
BALL-JOINT,52 DEG,ATV
7080927
$76.89
16
BRACKET-BALL JOINT
5211121
$31.99
17
SCR-1/4-20X5/8 FL HX SOC CP-Y
7512284
$1.49
18
Boot, Rubber
5410548
Unavailable
19
NUT-3/8-24 HX CA GR5-Y
7542438
$1.59
20
SHIELD,RH CV JOINT Substituted by 5431149-070
5431149
$24.27
20
SHIELD,LH CV JOINT Substituted by 5431150-070
5431150
Unavailable
21
SCREW(10)
7512084
$1.49
22
BUSHING,A ARM,LONG
5433066
$5.01
22
BUSHING,A ARM,LONG
5433066
$5.01
23
BUSHING,A-ARM SPACER(10)
5020677
$10.39
23
BUSHING,A-ARM SPACER(10)
5020677
$10.39
24
Shaft, A-Arm
5020681
Unavailable
25
A-FRAME,KIT,LH (1541444) (If built after 7/01/99)
2201609
$131.43
25
A-FRAME,KIT,RH (1541445) (If built after 7/01/99)
2201610
Unavailable
25
KIT,LH,A FRAME Substituted by 2201603 (If built before 7/01/99)
2201157
Unavailable
25
KIT,RH,A FRAME Substituted by 2201604 (If built before 7/01/99)
2201158
Unavailable
26
ZERK,FITTING,THREADED(10)
7080433
$1.49
27
Asm., Heavy Hubstrut (See Front Strut Pg. B5, Ref. 15)
-------
Unavailable
28
SCREW(10)
7512492
$1.49
28
SCREW(10)
7512492
$1.49
29
WASHER(10)
7552603
$1.49
29
WASHER(10)
7552603
$1.49
30
BOLT (10)
7517527
$29.99
31
BOLT(10)
7515415
$1.49
