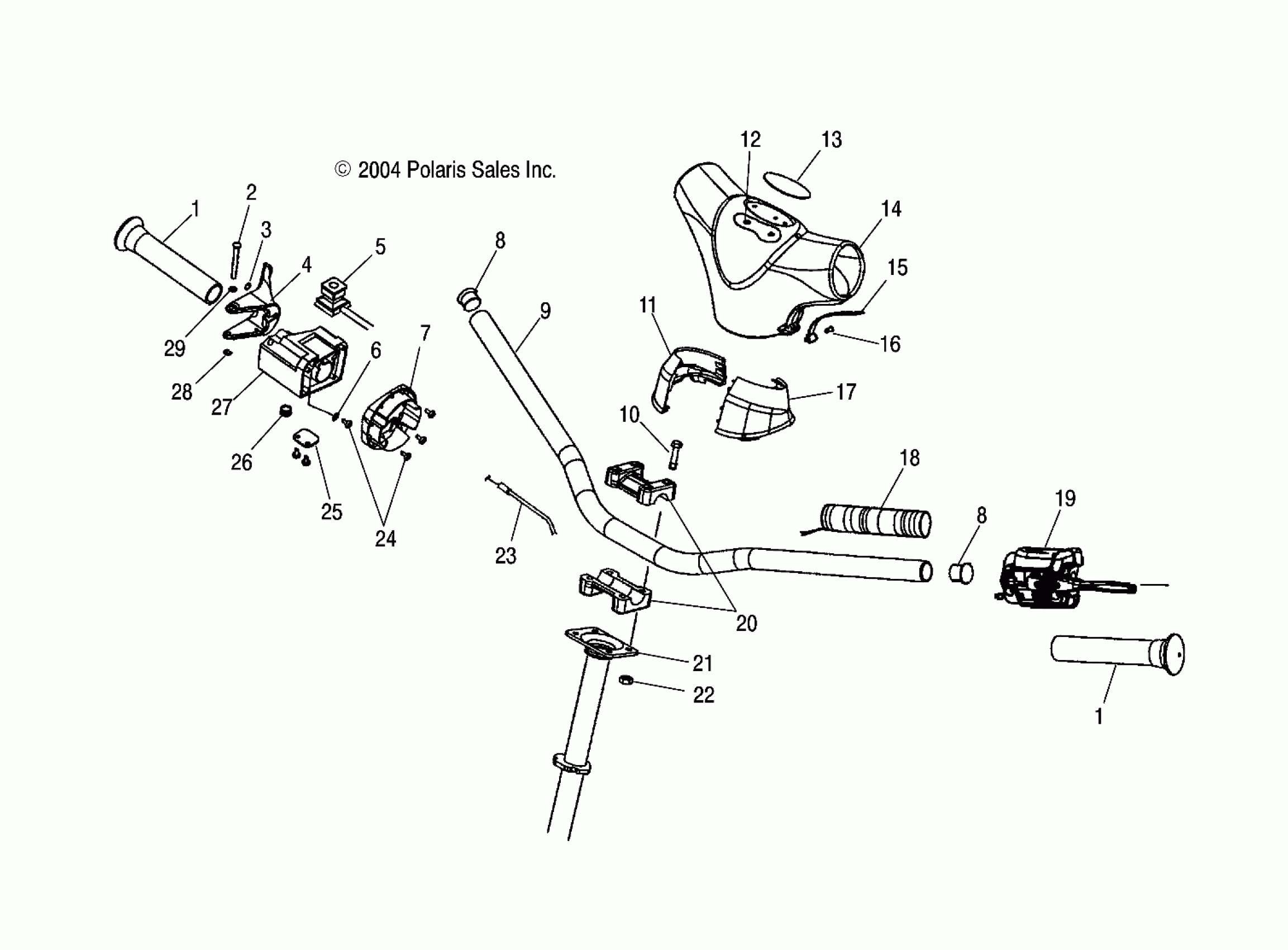

Polaris 500 INDY - S05NB4BS HANDLEBAR - S05NB4BS (4992609260B05) Diagram

#

Description
Price

1

Grip, Handlebar

5432634

$24.27

1

Grip, Handlebar

5432634

$24.27

2

PIN-RETAINING .186X1.780-AL

7661624

$12.79

3

RET.RING-INDUSTRIAL(2000-25)-Z

7710503

$3.99

4

LEVER, THROTTLE

5432970

$29.03

4

ASM., LEVER W/HEATER, HI/LO

2010171

$84.98

5

Switch, Auxiliary Shut-Off, Closed

4110106

$94.99

6

WASHER

7555727

$1.49

7

ADAPTOR, BLOCK, THROTTLE

5433345

$15.99

8

PLUG, OVERFLOW

5431096

$2.02

8

PLUG, OVERFLOW

5431096

$2.02

9

Handlebar

5243355-067

$94.99

10

SCREW

7517238

$4.79

11

Collar, Console, RH

5434488

Unavailable

12

Nut, Push-On

7670106

$2.39

13

Emblem, Star

5434179

Unavailable

14

Cover, Handlebar

5433159-070

$77.99

15

Slide, Handlebar Cover

5433160-070

$28.32

16

Clip, Dart

4010287

$3.99

17

Collar, Console, LH

5434487

$24.99

18

Heater, Grip, Lo/Med/Hi

2460677

$60.70

19

ASM., CONTROL, LH [SEE BRAKE PG.A12 REF. 12]

-------

Unavailable

20

Block, Handlebar

5630187-067

$44.99

21

Post, Steering

1820965-067

Unavailable

22

Nut, Nylok

7542122

$1.49

23

Cable, Throttle

7080770

Unavailable

24

Screw

7511848

$3.99

25

HOLDER, WIRE

5432261

$24.27

26

SCREW, SET

7512465

$3.99

27

BLOCK, THROTTLE/BRAKE

5431592

$49.99

28

RING-RETAINING EXTERNAL

7710401

$3.99

29

WASHER

7555730

$3.99
