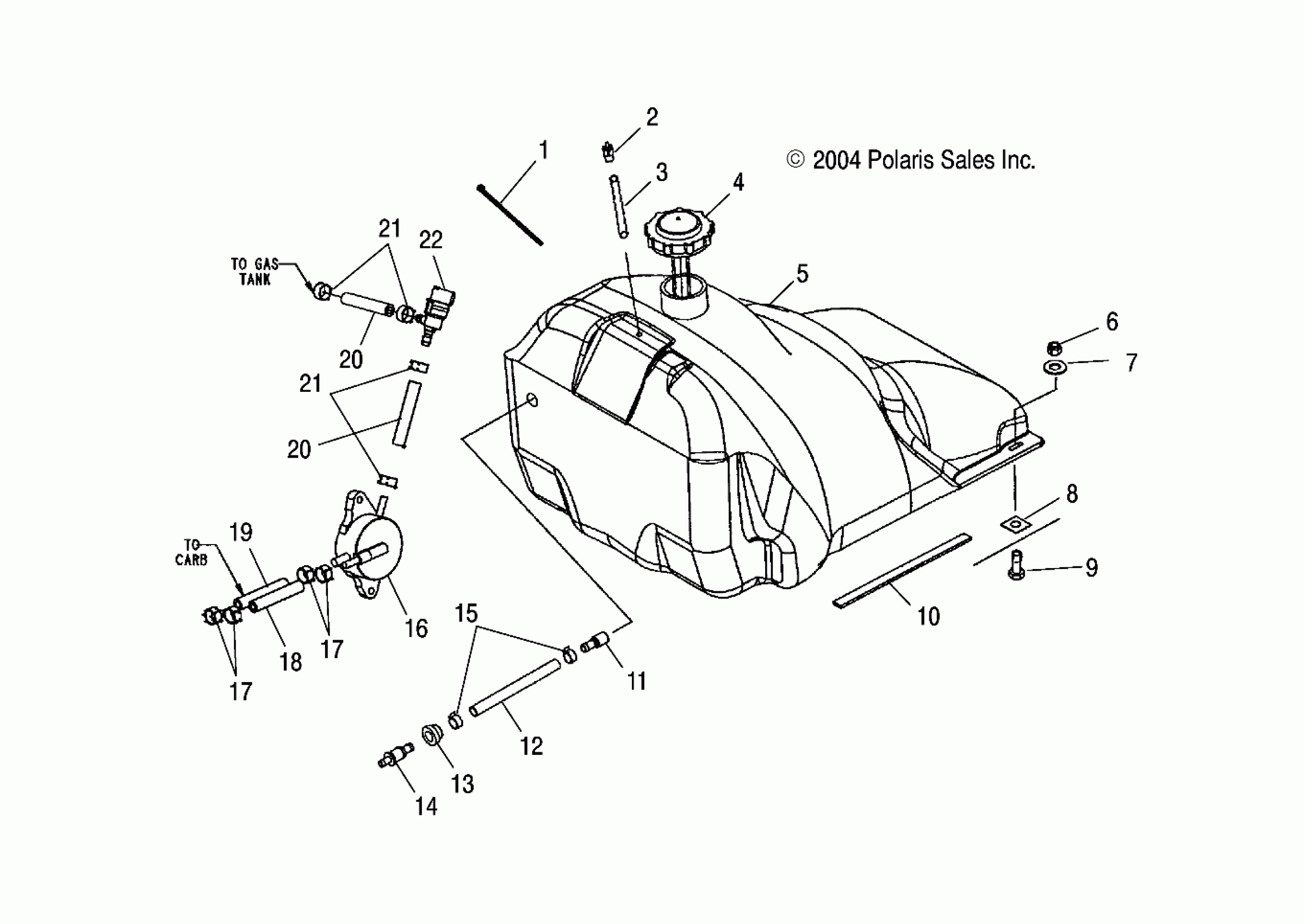

Polaris 500 INDY - S05NB4BS GAS TANK - S05NB4BS (4992609260A05) Diagram

#

Description
Price

1

CABLE TIE, RELEASABLE

7080804

$3.22

2

Fitting, 90 Degree

7052095

$4.79

3

Line

8450061-600

Unavailable

4

Cap, Fuel w/Gauge

2520323

Unavailable

4

Gasket, Fuel Cap

5810512

$9.11

5

Asm., Fuel Tank [Incl. 2, 11-14]

2520276

Unavailable

6

Nut, Nylok

7542122

$1.49

7

WASHER, FLAT

7555960

$3.99

8

Nut, Speed

7670021

$6.99

9

BOLT, CARRIAGE

7512193

$2.39

10

FOAM-SEAL,REAR COOLER

5810947

$4.03

11

Pickup, Fuel, w/Filter

7052301

$12.94

12

Line, Fuel

8350019-160

Unavailable

13

GROMMET, FLANGED

7052028

$6.39

14

Fitting

7052321

$8.79

15

RING, COMPRESSION

7080402

$1.60

16

Asm., Diaphragm Set

3084222

$54.99

16

Screw

3081286

$54.99

16

Asm., Fuel Pump

3086998

Unavailable

17

HOSE CLAMP, RED

7080003

$1.49

17

HOSE CLAMP, RED

7080003

$1.49

18

Line, Fuel

8450040-600

Unavailable

19

Line, Fuel

8350017-600

Unavailable

20

Line, Fuel

8350018-600

Unavailable

20

Line, Fuel

8350018-600

Unavailable

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

22

Valve, Fuel

7052249

$24.27
