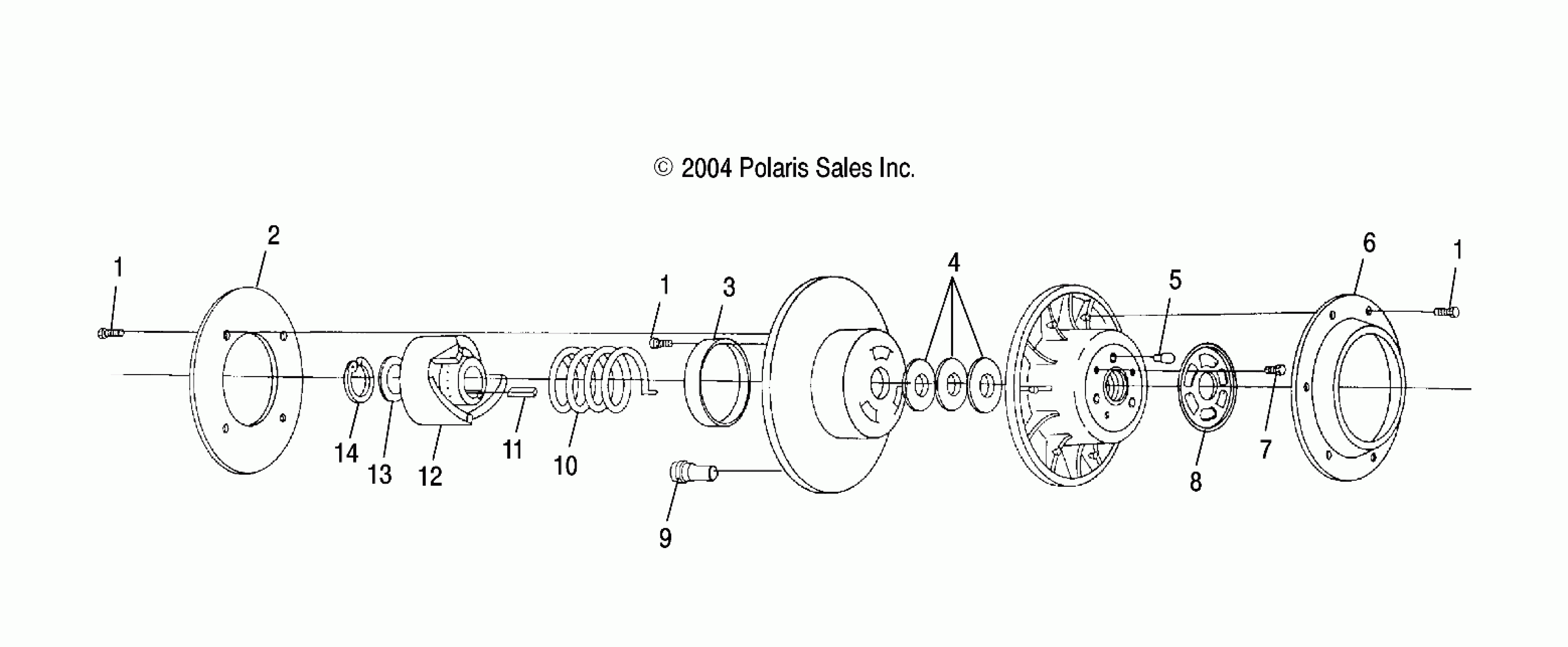

Polaris 500 INDY - S05NB4BS DRIVEN CLUTCH - S05NB4BS (4992609260B14) Diagram

#

Description
Price

-

Asm., Driven Clutch, Basic, 204 (Incl. All Less 2,6,10,12)

1321927

Unavailable

1

Screw

7512048

Unavailable

1

Screw

7512048

Unavailable

1

Screw

7512048

Unavailable

2

Plate, Driven, Vented

5243158

$131.99

3

Bushing, Driven, Large DU

3569803

Unavailable

4

Washer, .030

7556804

Unavailable

4

Washer, .020

7555898

Unavailable

4

Washer, .025

7556076

Unavailable

4

Washer, .075

7555865

Unavailable

5

Pin, Adjustable, Driven

5020653

$34.99

6

Cap, Driven, Vented

5243157

Unavailable

7

BOLT

7515133

$3.99

8

Cam, Adjustable, Driven

5222878

$29.03

9

Button, Ramp

5430466

$6.46

10

SPRING, CLUTCH

7041782

$56.65

11

Key

7721103

$5.65

12

Ramp, Driven, 36D

5130895

$199.99

13

Washer

7556804

$1.49

14

RING, RETAINING

7714804

$9.59
