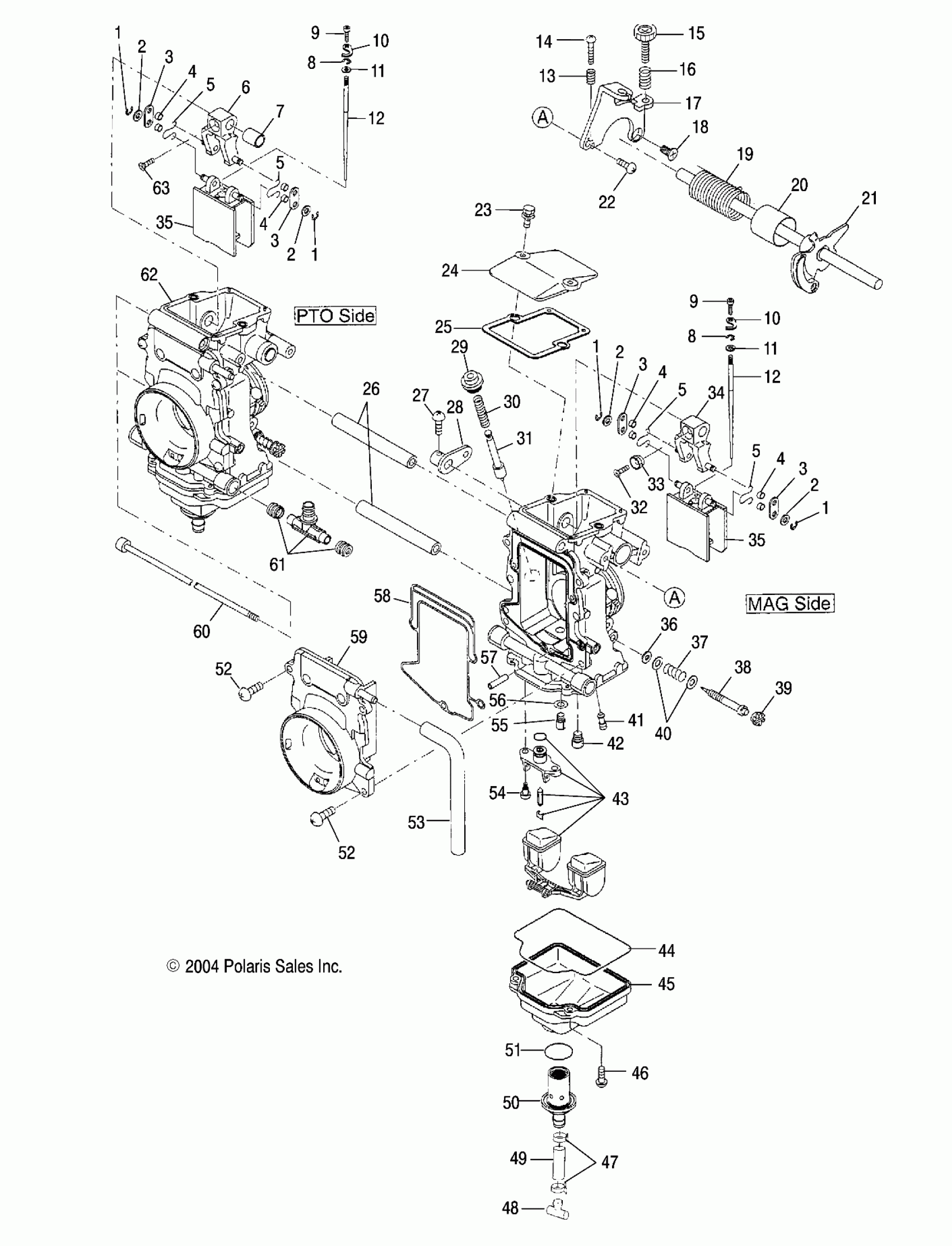

Polaris 500 INDY - S05NB4BS CARBURETOR - S05NB4BS (4992609260C09) Diagram

#

Description
Price

1

E-Ring

3130847

$8.89

1

E-Ring

3130847

$8.89

1

E-Ring

3130847

$8.89

1

E-Ring

3130847

$8.89

2

Washer

3130846

$4.79

2

Washer

3130846

$4.79

2

Washer

3130846

$4.79

2

Washer

3130846

$4.79

3

Plate

3130857

$7.27

3

Plate

3130857

$7.27

3

Plate

3130857

$7.27

3

Plate

3130857

$7.27

4

Ring

3130845

$8.89

4

Ring

3130845

$8.89

4

Ring

3130845

$8.89

4

Ring

3130845

$8.89

5

Clip

3130856

$8.79

5

Clip

3130856

$8.79

5

Clip

3130856

$8.79

5

Clip

3130856

$8.79

6

Asm., Lever

3130855

$64.75

7

Ring

3140032

Unavailable

8

E-Ring

3130868

$8.89

8

E-Ring

3130868

$8.89

9

Screw

3130844

$3.99

9

Screw

3130844

$3.99

10

Plate

3130843

$8.89

10

Plate

3130843

$8.89

11

Packing

3130867

$5.65

11

Packing

3130867

$5.65

12

Needle, Jet [J8-9DFY01-54]

3131273

Unavailable

12

Needle, Jet [J8-9DFY01-54]

3131273

Unavailable

13

Spring

3130817

$6.46

14

Screw

3130816

$6.39

15

Adjuster

3130812

$20.22

16

Spring

3130811

$7.99

17

Bracket

3131380

$36.41

18

Screw

3130810

$3.19

19

Spring

3130950

$36.41

20

Ring

3130853

$7.27

21

Asm., Shaft

3131281

$119.03

22

Screw

3130809

$3.19

23

Screw

3130951

$3.99

24

Cap, Top

3130976

$50.99

25

Gasket

3130871

$20.22

26

Spacer

3131274

$9.99

27

Screw

3130991

$5.43

28

Asm., Lever

3131282

$29.75

29

Holder, Guide

3131276

Unavailable

30

Spring

3131277

Unavailable

31

Asm., Plunger

3131278

Unavailable

32

Screw

3130850

$4.79

33

Ring

3130848

$32.37

34

Asm., Lever

3130849

$64.75

35

Asm., Piston Valve [2.0]

3131252

$134.99

35

Asm., Piston Valve [2.0]

3131252

$134.99

36

Packing

3130835

$2.41

37

SPRING

3130836

$7.27

38

Adjuster

3130987

$20.22

39

Cap

3130986

$9.70

40

Washer

3130837

$3.19

41

Jet, Pilot, #40

3130067

$10.99

42

Jet, Starter, #145

3130769

$8.89

43

Asm., Float

3130859

$94.99

44

O-Ring, Float Bowl

3130861

$12.13

45

Body, Float

3130858

$119.99

46

Screw, Float Bowl

3130824

$3.19

47

HOSE CLAMP, RED

7080003

$1.49

48

Plug, Trap

5431893

$12.94

49

Hose, Watertrap

5411708

Unavailable

50

Nipple, Drain Screw

3130862

Unavailable

51

O-Ring, Drain Screw

3130863

$2.41

52

Screw, Air Funnel

3130825

$3.19

52

Screw, Air Funnel

3130825

$3.19

53

Hose

3131280

$5.56

54

Screw, Valve Seat

3130860

$8.79

55

Jet, Main, #360

3130139

$7.99

56

Washer

3130949

$3.99

57

Jet, Air, Pilot, .9

3131203

$8.89

58

O-Ring, Air Funnel

3130870

$24.27

59

Asm., Funnel

3130975

$53.59

60

Bolt

3131275

$12.39

61

Asm., Nipple

3131279

$32.37

62

Asm., Carburetor [Incl. All]

3131560

$704.99

63

Screw

3130854

$3.19
