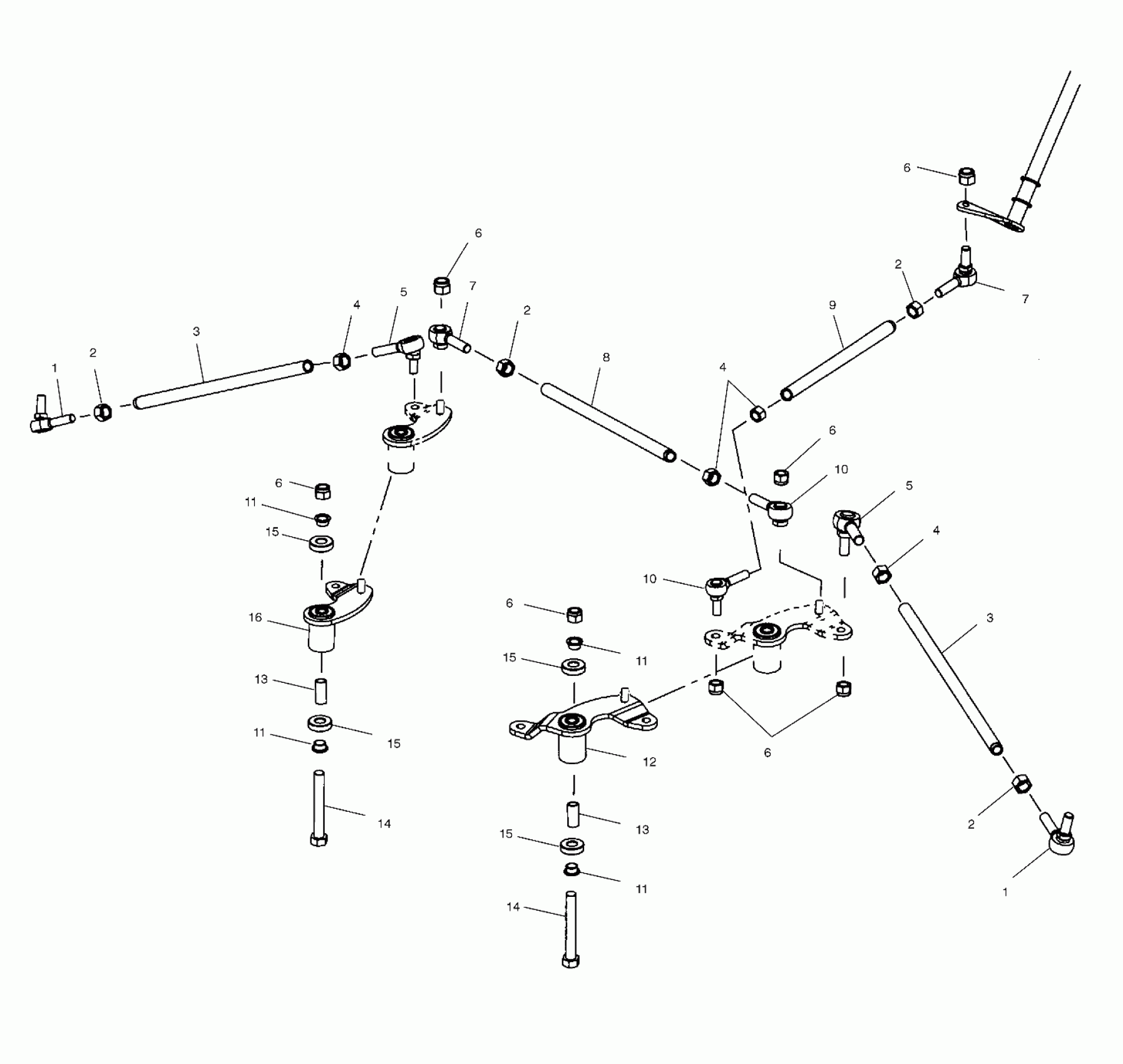

Polaris 500 INDY - S02NB4BS STEERING - S02NB4BS (4970397039B003) Diagram

#

Description
Price

1

ROD,END-3/8,PL,75�,1.00,RH

7061057

$48.56

1

ROD,END-3/8,PL,75�,1.00,RH

7061057

$48.56

2

NUT HEX(10)

7542401

$2.39

2

NUT HEX(10)

7542401

$2.39

2

NUT HEX(10)

7542401

$2.39

2

NUT HEX(10)

7542401

$2.39

3

ROD-TIE,RED

5333949-293

Unavailable

3

ROD-TIE,RED

5333949-293

Unavailable

4

NUT

7542424

$1.49

4

NUT

7542424

$1.49

4

NUT

7542424

$1.49

5

ROD,END-3/8,PL,75� LH,750 STUD

7061055

$48.56

5

ROD,END-3/8,PL,75� LH,750 STUD

7061055

$48.56

6

NUT-LOCK(10)

7542439

$1.49

6

NUT-LOCK(10)

7542439

$1.49

6

NUT-LOCK(10)

7542439

$1.49

6

NUT-LOCK(10)

7542439

$1.49

6

NUT-LOCK(10)

7542439

$1.49

6

NUT-LOCK(10)

7542439

$1.49

7

ROD END-3/8 RH,HI-ANGLE,PR

7061076

$48.56

7

ROD END-3/8 RH,HI-ANGLE,PR

7061076

$48.56

8

STEERING ROD RACK,11.50

5333772

$36.41

9

ROD-DRAGLINK,12.50,STEEL,BLK

5333773-067

$38.71

10

ROD END-3/8 LH,HI-ANGLE,PR

7061075

$48.56

10

ROD END-3/8 LH,HI-ANGLE,PR

7061075

$48.56

11

BUSHING-REDUCER,12MM TO .385

5132106

$7.99

11

BUSHING-REDUCER,12MM TO .385

5132106

$7.99

11

BUSHING-REDUCER,12MM TO .385

5132106

$7.99

11

BUSHING-REDUCER,12MM TO .385

5132106

$7.99

12

ARM-PITMAN ARM,EDGE (Incl. 11,13,15)

1820957

$155.99

13

SPACER-TUBE,PITMAN/IDLER ARMS

5132495

$29.99

13

SPACER-TUBE,PITMAN/IDLER ARMS

5132495

$29.99

14

BOLT(10)

7512435

$3.99

14

BOLT(10)

7512435

$3.99

15

BEARING-BALL, 600ILLU

3514320

$15.99

15

BEARING-BALL, 600ILLU

3514320

$15.99

15

BEARING-BALL, 600ILLU

3514320

$15.99

15

BEARING-BALL, 600ILLU

3514320

$15.99

16

ASM-IDLER ARM,EDGE (Incl. 11,13,15)

1820959

$184.99
