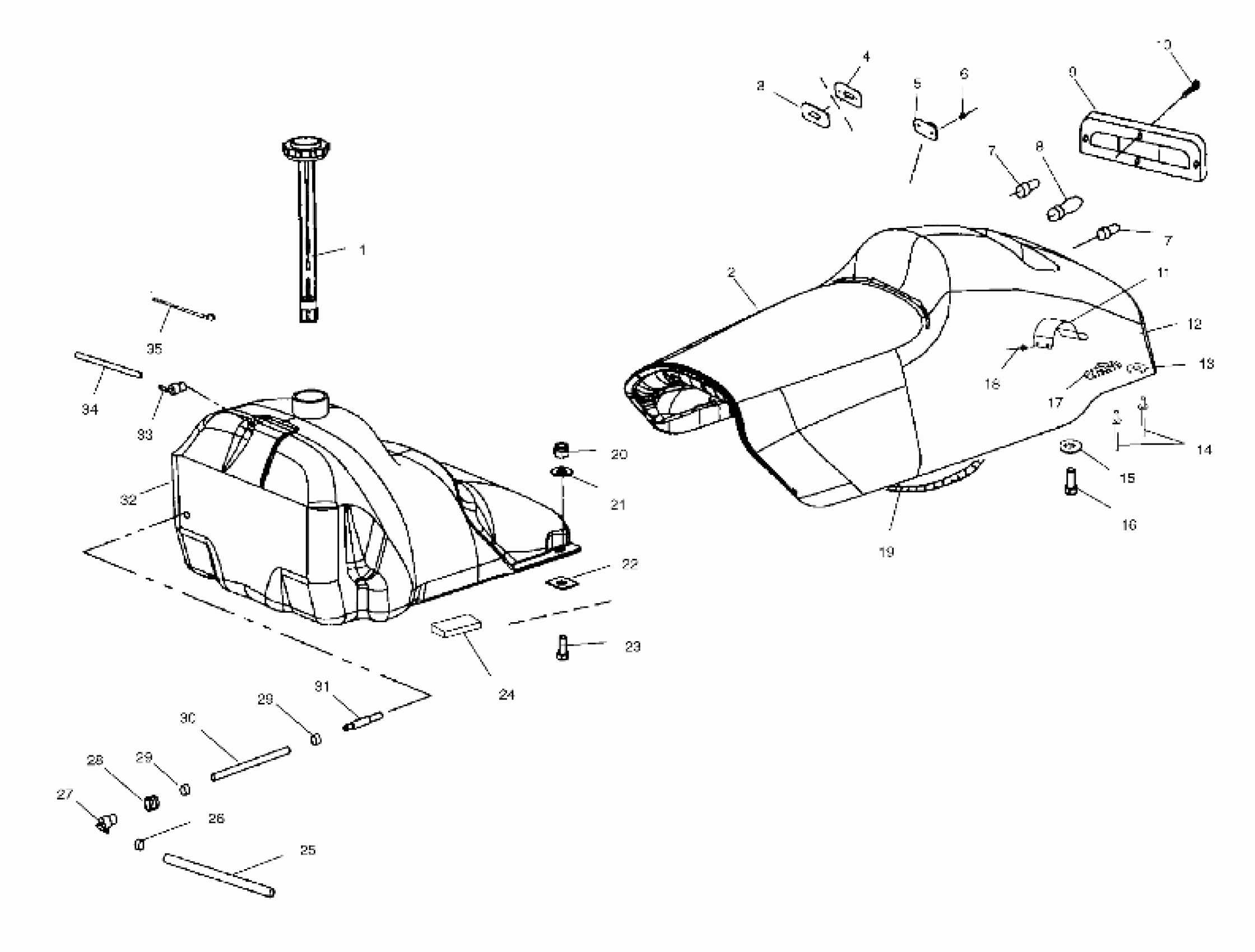

Polaris 500 INDY - S02NB4BS SEAT and GAS TANK - S02NB4BS (4970397039A004) Diagram

#

Description
Price

1

CAP,FUEL,12.5,W/GAUGE

1240066

Unavailable

2

CUSHION,ASM,SEAT (Incl. 2-12,19)

2682587

Unavailable

2

ASM-SEAT COVER

2682588

Unavailable

3

GROMMET,RELATCH,1",BOTT.(10)

7080550

Unavailable

4

GROMMET,RELATCH,1",TOP(10)

7080549

Unavailable

5

TWISTLOCK,RELATCH,1",W/HOLE(10)

7080548

Unavailable

6

RIVET(50)

7621337

$1.49

7

BULB,TAILLIGHT(10)

4030024

$4.84

7

BULB,TAILLIGHT(10)

4030024

$4.84

8

Bulb, Brakelight

4030045

Unavailable

9

LENS,TAILLIGHT

5430423

Unavailable

10

SCREW(10)

7511840

Unavailable

11

RETAINER-CLIP,TOOL POUCH

5243185

$10.63

12

HOUSING-TAILLIGHT

5433341

Unavailable

13

RIVET BURR(50)

7555727

$1.49

14

RIVET,POP,5/32"(50) Substituted by 7621307

7621319

$1.49

15

WASHER(10)

7558301

$1.49

16

SCREW(10)

7515159

$4.79

17

NUT-SEAT

5631194

$4.99

18

RIVET(50)

7621472

$1.49

19

Harness, Taillight

2460399

Unavailable

20

NUT-LOCK(10)

7542122

$1.49

21

WASHER(10)

7555960

$3.99

22

SPEED NUT(10)

7670021

$6.99

23

BOLT(10)

7512193

$2.39

24

FOAM-SEAL,REAR COOLER

5810947

$4.03

25

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

26

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

27

FITTING,1/4" 90� DEX

7052259

Unavailable

28

GROMMET-TANK FITTING(10)

7052028

$6.39

29

RING, COMPRESSION(10)

7080402

$1.60

29

RING, COMPRESSION(10)

7080402

$1.60

30

FUEL LINE-ESTER Substituted by 8350019-160

8350019-600

Unavailable

31

PICK-UP-FUEL,W/FILTER,105MICRN

7052301

$12.94

32

DESC NOT_AVAILABLE (Incl. 31-33)

2520266

$267.99

33

FITTING,90 DEG,1/8,(10)

7052095

$4.79

34

DESC NOT_AVAILABLE

8450061

Unavailable

35

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22
