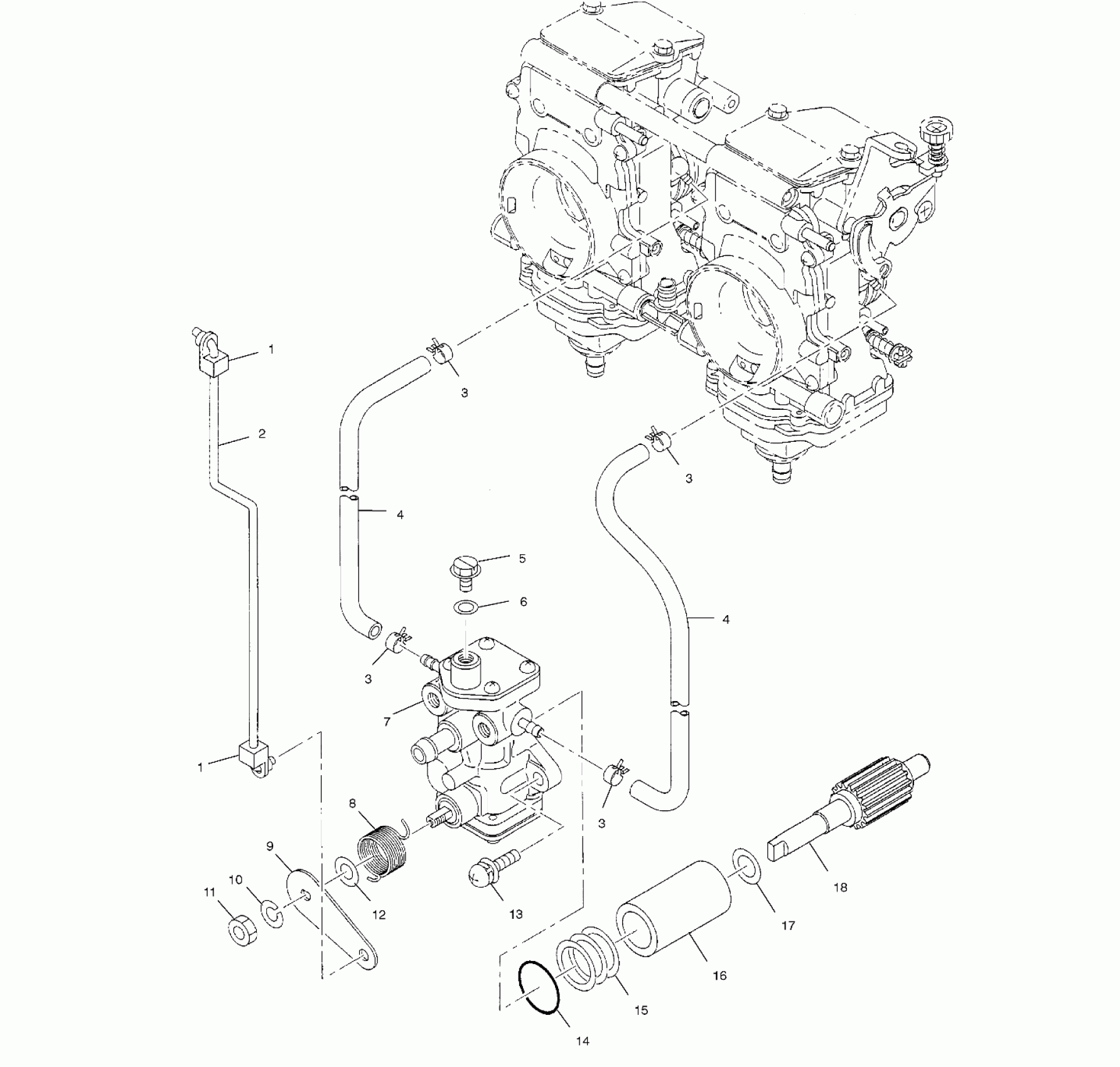

Polaris 500 INDY - S02NB4BS OIL PUMP - S02NB4BS (4970397039C009) Diagram

#

Description
Price

1

BUSHING,LINKAGE

3240234

Unavailable

1

BUSHING,LINKAGE

3240234

Unavailable

2

ROD-FORK

3087002

Unavailable

3

CLAMP-HOSE,(10)

3083141

$1.49

3

CLAMP-HOSE,(10)

3083141

$1.49

3

CLAMP-HOSE,(10)

3083141

$1.49

3

CLAMP-HOSE,(10)

3083141

$1.49

4

PIPE,VINYL 1

3085157

$29.99

4

PIPE,VINYL 1

3085157

$29.99

5

SCREW-AIR VENT

3083125

Unavailable

6

PACKING(10)

3083126

$4.03

7

ASM-OIL PUMP (Incl. 5-12,14)

3086999

$219.03

8

SET-SPRING AND LEVER (Incl. 9)

3087001

$62.39

9

LEVER-CONTROL Substituted by 3087001

3087000

$61.90

10

WASHER-SPRING(10)

3083121

$299.99

11

NUT(10)

3083120

$3.19

12

COLLAR, CAMSHAFT(10)

3083445

$2.39

13

SCREW&WASHER,(10)

3083783

$2.39

14

O RING

3083127

Unavailable

15

SPACER #3 (.6mm)

3083673

Unavailable

15

SPACER #2 (.3mm)

3083672

Unavailable

15

SPACER #1 (.15mm)

3083671

Unavailable

16

BUSHING(OIL PUMP)

3083353

$31.99

17

SPACER

3083130

$1.59

18

GEAR,SMALL,OIL PUMP

3083131

$89.99
