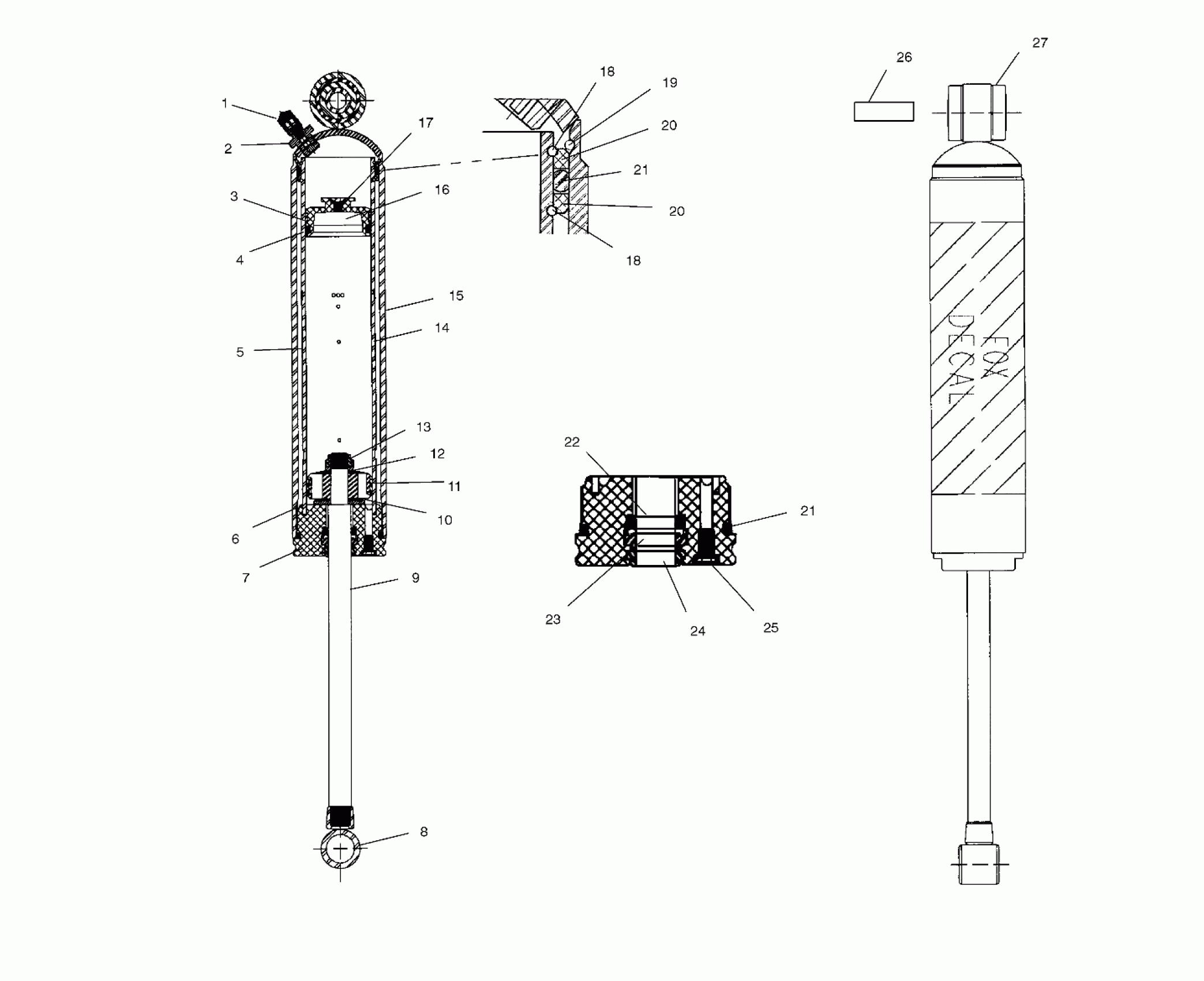

Polaris 500 INDY - S02NB4BS FOX SHOCK - REAR TRACK - S02NB4BS (4970397039B011) Diagram

#

Description
Price

-

SHOCK,R/T,FOX,PPS

7041846

Unavailable

1

CAP,SHRADER VALVE

1500210

Unavailable

2

VALVE-AIR,COMPLETE

1500206

$24.19

3

RING,PISTON,FLOATING,FOX

1500006

$19.99

4

O-RING,ENDCAP,FOX,(10)

1500003

$8.89

5

VALVE,CHECK,NBR DURO A 90

1500306

Unavailable

6

BODY-1.46X6.55 TLG NON/GR

1500459

$5.65

7

BEARING,W/P.S. GROOVE

1500334

Unavailable

8

EYELET-.88W 1.38TLG 808-05-002

1500302

$49.21

9

SHAFT,.5X8.35 TLG

1500333

Unavailable

10

PLATE,TOP OUT

1500017

$20.22

11

DAMPER,PISTONRING,FOX

1500002

$31.99

12

BUSHING,BACKUP

1500015

$6.76

13

NUT,LOCK

1500016

$12.79

14

BODY,ASM,INNER P.S.

1500331

$205.99

15

BODY,ASM,OUTER P.S.

1500332

$140.79

16

PISTON-FLOATING

1500187

$26.98

17

SCREW/O-RING ASM.

1500161

Unavailable

18

RING,RETAIN.(FOX)-ATV

1500097

$4.79

18

RING,RETAIN.(FOX)-ATV

1500097

$4.79

19

RING,RETAINING

1500236

$9.59

20

COLLAR,ALUM

1500336

$27.78

20

COLLAR,ALUM

1500336

$27.78

21

SEAL,O-RING

1500228

Unavailable

21

SEAL,O-RING

1500228

Unavailable

22

SEAL,Q-RING .139CS 035-00-206

1500297

Unavailable

23

WIPER INNER Substituted by 1500266

1500025

$24.27

24

WIPER,CLR,OUTER

1500024

Unavailable

25

O-RING,DRUM OUTER

1500022

Unavailable

25

SCREW-#10-24X.375 800-10-000

1500295

Unavailable

26

SLEEVE,.56X.81X1.28

1500311

Unavailable

27

BUSHING,.35ILG,.63TLG

1500307

$7.99
