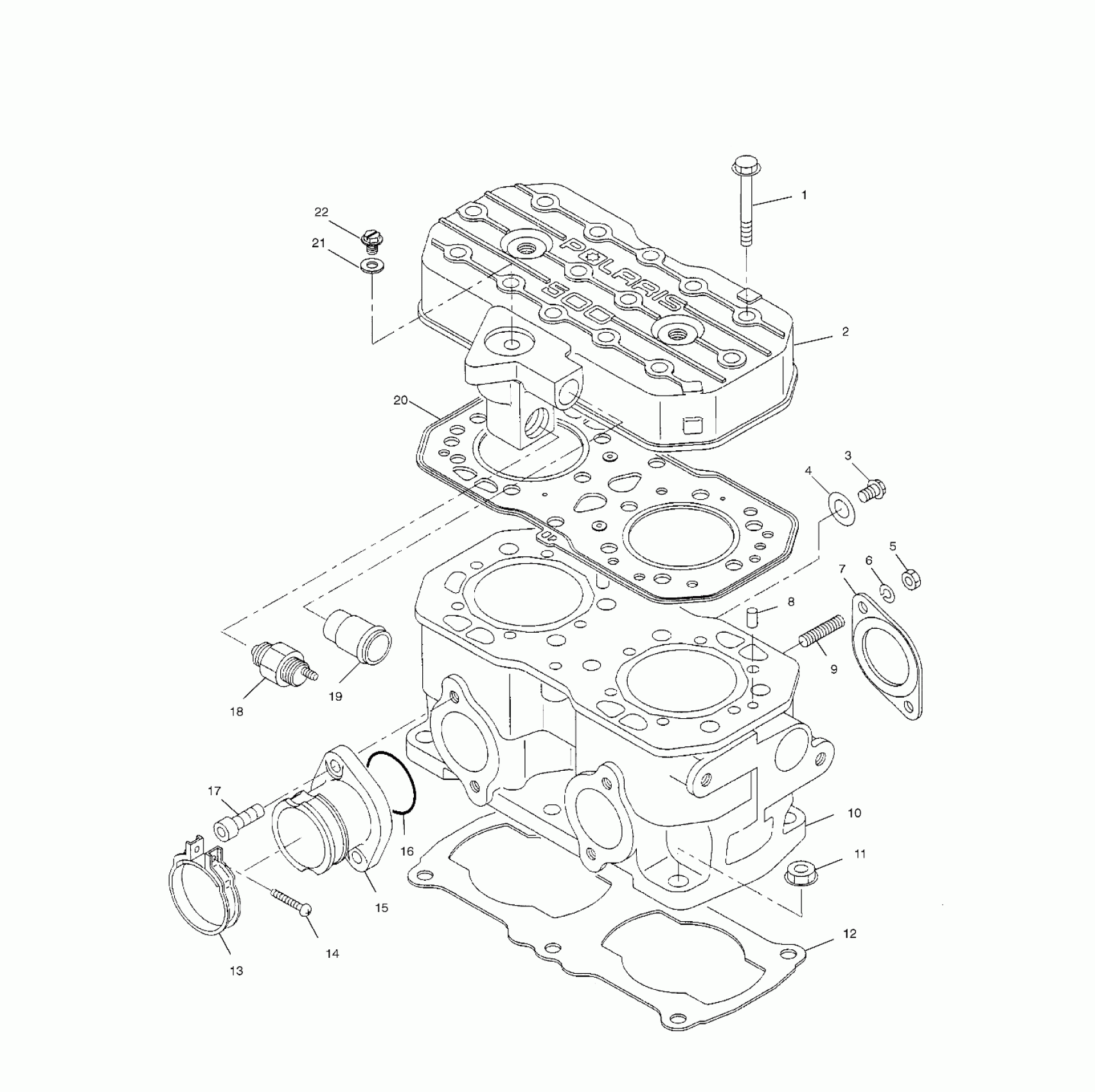

Polaris 500 INDY - S02NB4BS CYLINDER - S02NB4BS (4970397039C004) Diagram

#

Description
Price

1

BOLT,FLANGE

3085582

$3.99

2

HEAD,CYLINDER (Incl. 19)

3087148

$529.99

3

Plug

3084491

Unavailable

4

Gasket, Aluminum

3084492

$4.03

5

NUT(10)

3080285

Unavailable

6

WASHER LOCK ,(10)

3080530

$3.19

7

GASKET-EXHAUST

3086995

Unavailable

8

PIN, DOWEL Substituted by 3086838

3080103

$7.14

9

STUD,(10)

3085326

Unavailable

10

CYLINDER (Incl. 9)

3086993

Unavailable

11

NUT-FLANGE(10)

3082911

$1.99

12

Gasket, Base

3084768

$64.99

13

BAND ASM. (Incl. 14)

3083166

$19.84

14

SCREW,(10)

3081497

$2.39

15

ADAPTER (Incl. 16)

3086994

Unavailable

16

O-Ring

3086996

Unavailable

17

Bolt, Allen

3081330

$3.99

18

SWITCH,THERMAL(93 DEG.C.) (93 Degree C)

3083055

Unavailable

19

Pipe, Water

3083452

Unavailable

20

GASKET 2,HEAD

3085585

Unavailable

21

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

22

PLUG, AIR VENT Substituted by 7517266

3083350

Unavailable
