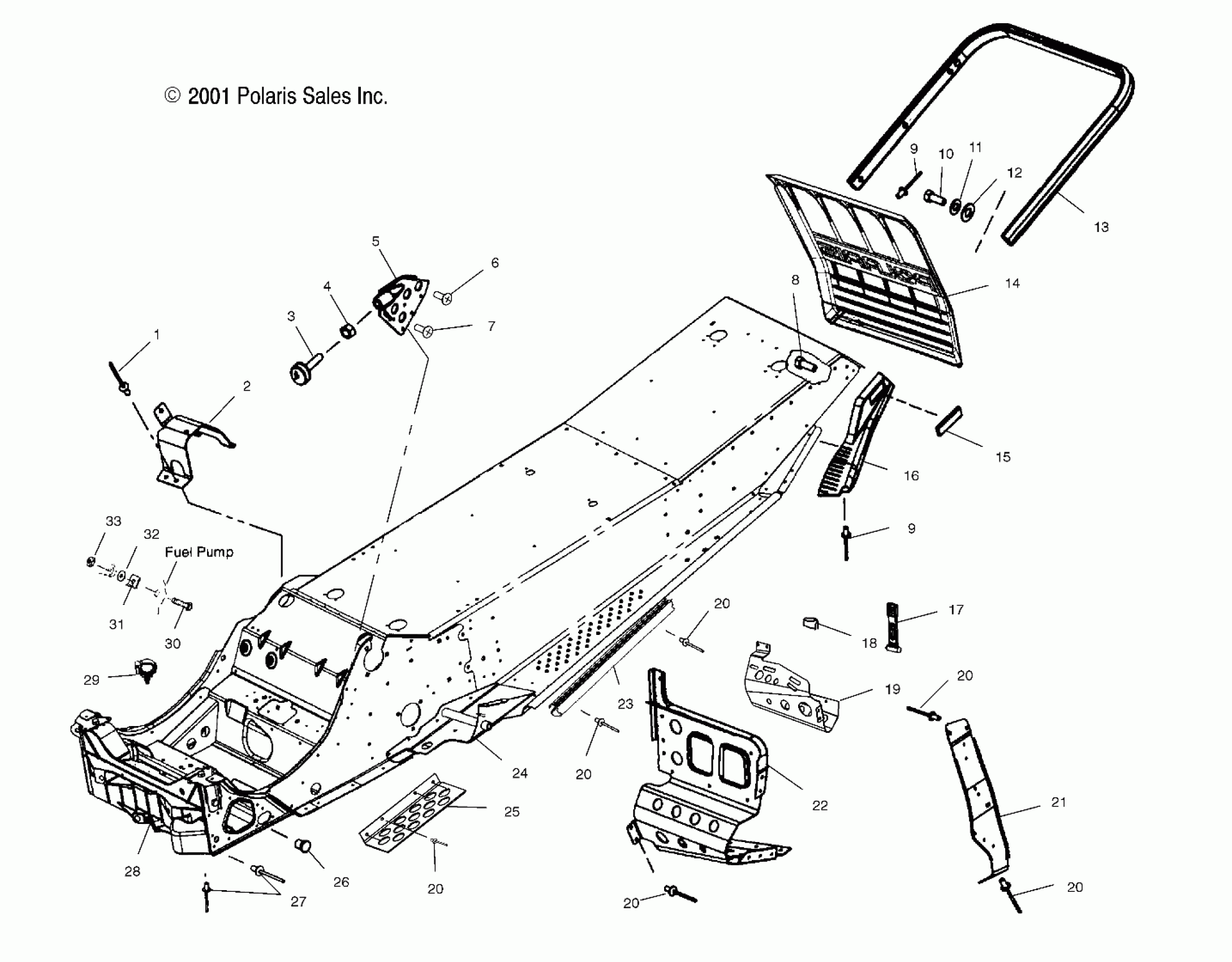

Polaris 500 INDY - S02NB4BS CHASSIS - S02NB4BS (4970397039A003) Diagram

#

Description
Price

-

ASM-CHASSIS,SVC,EDGE,NATURAL

1013686-309

Unavailable

1

RIVET(50)

7621453

$3.19

2

BRKT-JACKSHAFT,SHIELD

5245003

$13.19

3

STOP,TORQUE COURSE 3/8-16

3021104

$20.22

4

NUT(10)

7542404

$1.59

5

WELD-TORQUE STOP,FUJI

1013399

$27.19

6

SCREW

7517632

$5.59

7

SCR-3/8-16X1-P30-SPEC-Y

7517854

$5.59

8

SCREW(10)

7517441

$2.39

9

RIVET(50)

7621472

$1.49

9

RIVET(50)

7621472

$1.49

10

BOLT(10)

7512240

$3.99

11

LOCK WASHER(10)

7552801

$1.59

12

WASHER(10)

7558301

$1.49

13

BUMPER,REAR

2632165-309

Unavailable

14

FLAP,SNOW,EDGE,BLK W/CHROME

5433521-1106

Unavailable

15

REFLECTOR ASM,RED

2670133

$5.75

16

ASM-SNOWSKIRT/REFL,LH,BLK (Incl. 15)

2632443-070

$64.75

16

ASM-SNOWSKIRT/REFL,RH,BLK (Incl. 15)

2632444-070

$55.99

17

STRAP-AIRBOX TOP

5433150

$24.27

18

EXTRUSION,CLUTCHGUARD

5521238

$6.46

19

MOUNT-CONSOLE,TOE CLIP,LH

5245457

Unavailable

19

MOUNT-CONSOLE,TOE CLIP,RH

5245458

Unavailable

20

RIVET-3/16-.090-.290

7661637

$1.49

20

RIVET-3/16-.090-.290

7661637

$1.49

20

RIVET-3/16-.090-.290

7661637

$1.49

20

RIVET-3/16-.090-.290

7661637

$1.49

20

RIVET-3/16-.090-.290

7661637

$1.49

20

RIVET-3/16-.090-.290

7661637

$1.49

21

SUPPORT,FOOTREST,LH,BLK

5242741-067

$19.68

21

SUPPORT,FOOTREST,RH,BLK

5242742-067

Unavailable

22

FOOTREST-LH,12 GUAGE,BLK

5245288-067

Unavailable

22

FOOTREST,RH,BLK

5242740-067

Unavailable

23

BRACE-TUNNEL ROLL

5245118

$23.81

24

KIT-MOUNT,TRAILING ARM,LH

2202059

$213.00

24

KIT-MOUNT,TRAILING ARM,RH

2202060

Unavailable

25

GUARD-BELT,EDGE

5245066

$8.98

26

PLUG, HOLE(10)

7080416

$5.65

27

Rivet

7661639

Unavailable

28

Bulkhead, Front

5132292

$115.99

29

CLIP, PLASTIC(10)

4020139

$4.79

30

BOLT-CARRIAGE(10)

7512275

$3.99

31

SPEED NUT(10)

7670021

$6.99

32

WASHER,NYLON

7555932

$2.39

33

NUT-LOCK(10)

7542122

$1.49
