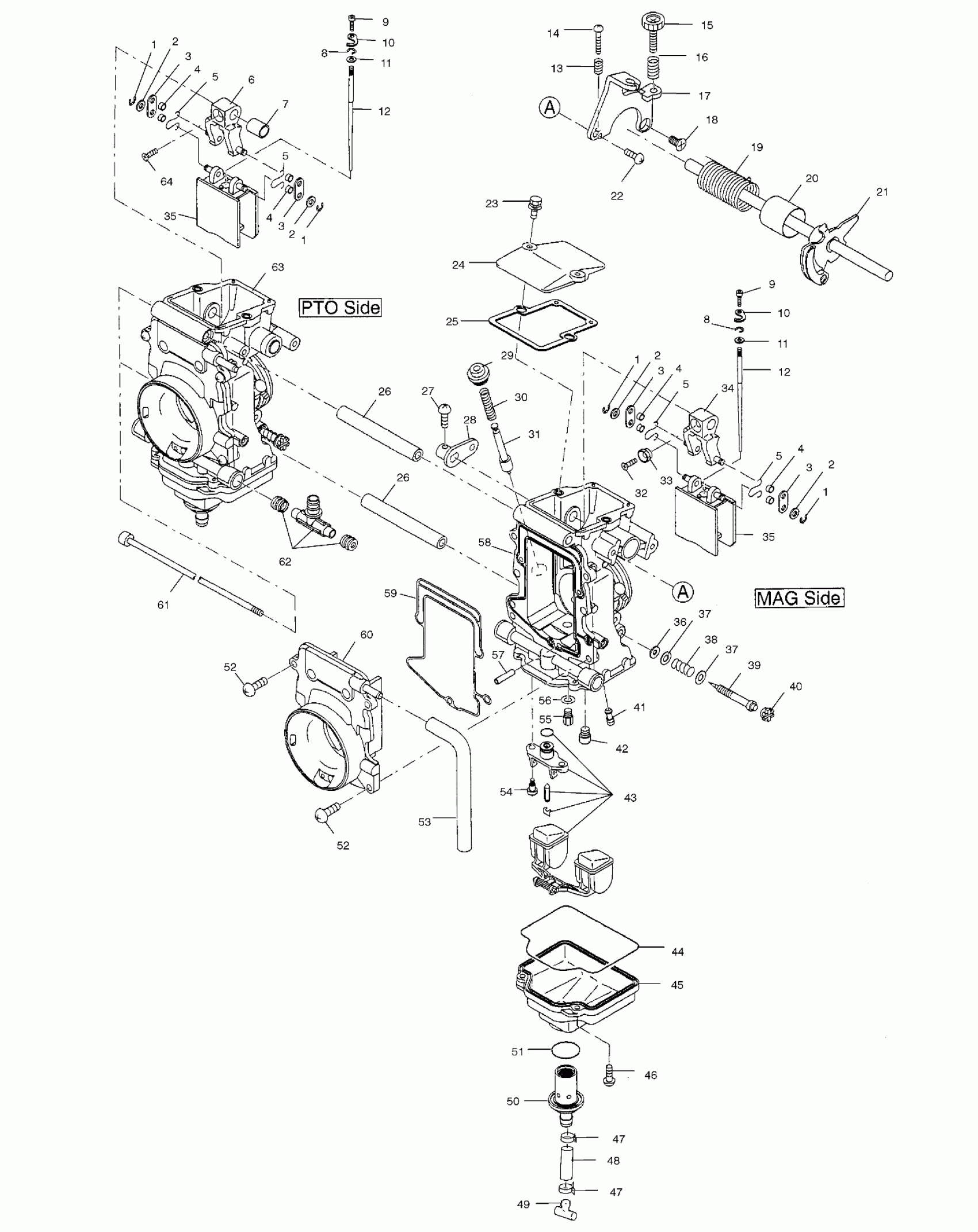

Polaris 500 INDY - S02NB4BS CARBURETOR - S02NB4BS (4970397039C007) Diagram

#

Description
Price

1

E-Ring

3130847

$8.89

1

E-Ring

3130847

$8.89

1

E-Ring

3130847

$8.89

1

E-Ring

3130847

$8.89

2

WASHER Substituted by 3130846

3130981

Unavailable

2

WASHER Substituted by 3130846

3130981

Unavailable

2

WASHER Substituted by 3130846

3130981

Unavailable

3

Plate

3130857

$7.27

3

Plate

3130857

$7.27

3

Plate

3130857

$7.27

3

Plate

3130857

$7.27

4

Ring

3130845

$8.89

4

Ring

3130845

$8.89

4

Ring

3130845

$8.89

4

Ring

3130845

$8.89

5

Clip

3130856

$8.79

5

Clip

3130856

$8.79

5

Clip

3130856

$8.79

5

Clip

3130856

$8.79

6

LEVER ASM.

3130855

$64.75

7

Ring

3140032

Unavailable

8

E-Ring

3130868

$8.89

8

E-Ring

3130868

$8.89

9

Screw

3130844

$3.99

9

Screw

3130844

$3.99

10

Plate

3130843

$8.89

10

Plate

3130843

$8.89

11

Packing

3130867

$5.65

11

Packing

3130867

$5.65

12

DESC NOT_AVAILABLE (9DFY1-54)

3131287

Unavailable

12

DESC NOT_AVAILABLE (9DFY1-54)

3131287

Unavailable

13

Spring

3130817

$6.46

14

Screw

3130816

$6.39

15

Adjuster

3130812

$20.22

16

Spring

3130811

$7.99

17

Bracket

3130815

$29.75

18

Screw

3130810

$3.19

19

Spring

3130950

$36.41

20

Ring

3130853

$7.27

21

ASM-SHAFT

3131281

$119.03

22

Screw

3130809

$3.19

23

Screw

3130951

$3.99

24

CAP-TOP

3130976

$50.99

25

Gasket

3130871

$20.22

26

Spacer

3131274

$9.99

26

Spacer

3131274

$9.99

27

SCREW Substituted by 3130991

3131283

$5.40

28

ASM-LEVER

3131282

$29.75

29

HOLDER-GUIDE

3131276

Unavailable

30

Spring

3131277

Unavailable

31

ASM-PLUNGER

3131278

Unavailable

32

Screw

3130850

$4.79

33

Ring

3130848

$32.37

34

LEVER ASM.

3130849

$64.75

35

PISTON,VALVE 2.0 (2.0)

3130789

$134.99

35

PISTON,VALVE 2.0 (2.0)

3130789

$134.99

36

Packing

3130835

$2.41

37

Washer

3130837

$3.19

37

Washer

3130837

$3.19

38

SPRING

3130836

$7.27

39

Adjuster

3130987

$20.22

40

Cap

3130986

$9.70

41

JET,PILOT,#40(10) (#40)

3130067

$10.99

42

JET,STARTER,#VM11/22-145 (#145)

3130769

$8.89

43

FLOAT,ASM. Substituted by 3130859

3130977

Unavailable

44

O-RING,FLOAT BOWL

3130861

$12.13

45

FLOAT,BODY

3130858

$119.99

46

SCREW,FLOAT BOWL

3130824

$3.19

47

HOSE CLAMP, RED

7080003

$1.49

47

HOSE CLAMP, RED

7080003

$1.49

48

FUEL,LINE,ETHER,RED,5/16" Substituted by 8350017-160

8350017-600

Unavailable

49

PLUG,TRAP

5431893

$12.94

50

NIPPLE,DRAIN SCREW

3130862

Unavailable

51

O-RING,DRAIN SCREW

3130863

$2.41

52

SCREW,AIR FUNNEL

3130825

$3.19

52

SCREW,AIR FUNNEL

3130825

$3.19

53

Hose

3131280

$5.56

54

SCREW,VALVE SEAT

3130860

$8.79

55

JET,MAIN,HX.HD#340(10) (#340)

3130137

$7.99

56

Washer

3130949

$3.99

57

JET Substituted by 3131257 (1.0)

3130993

$20.22

58

ASM-MIXING BODY [No Longer Available] (MAG)

3131272

Unavailable

59

O-RING,AIR FUNNEL

3130870

$24.27

60

FUNNEL

3130975

$53.59

61

Bolt

3131275

$12.39

62

ASM-NIPPLE

3131279

$32.37

63

ASM-CARBURETOR (Incl. 1-46,50-64)

3131349

Unavailable

64

Screw

3130854

$3.19
