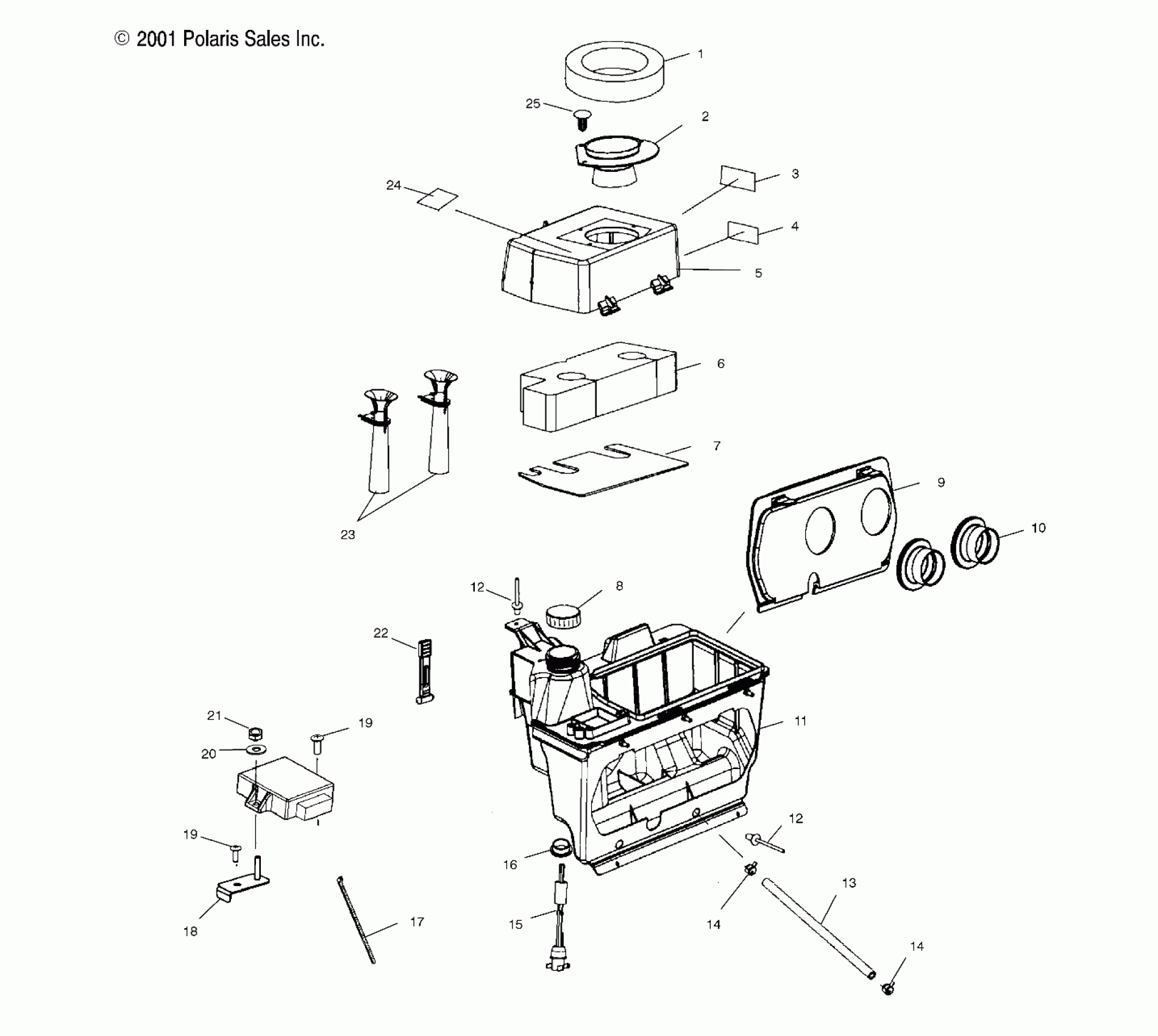

Polaris 500 INDY - S02NB4BS AIR BOX - S02NB4BS (4970397039B014) Diagram

#

Description
Price

1

FOAM,AIRBOX,CHIMNEY,EDGE

5811882

$20.22

2

DUCT,AIR,INLET

5433664

$12.39

3

DECAL,ADJ.DRIVEN CLUTCH

7073820

Unavailable

4

DECAL, GREASING [No Longer Available]

7073426

$7.27

5

COVER,ASM,AIR SILENCER (Incl. 2,3,4,24,25)

1253356

$49.59

6

FOAM,AIRBOX,PLATE

5811979

Unavailable

7

PLATE,INTAKE,EDGE

5433665

Unavailable

8

CAP-OIL,VENTED/CUSTOM COLOR

1240094

$36.41

9

PLATE,CARB ADAPTER

5433760

$27.19

10

BOOT-CARB

5411990

Unavailable

11

AIR SILENCER,ASM (Incl. 15,16)

1253336

Unavailable

12

RIVET(50)

7621472

$1.49

12

RIVET(50)

7621472

$1.49

13

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

14

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

14

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

15

FITTING-OIL SENDER

4010224

Unavailable

16

GROMMET-OIL SENDER

7052305

$4.84

17

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

18

WELD-BRKT,KOKUSAN,CDI,TPS

1013201

$30.32

19

Screw

7512098

$1.59

19

Screw

7512098

$1.59

20

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

21

NUT(10)

7541925

$1.49

22

STRAP-AIRBOX TOP

5433150

$24.27

23

TUBE,INTAKE,OUTER

5433662

Unavailable

24

DECAL,CAUTION,AIRBOX

7075351

Unavailable

25

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49
