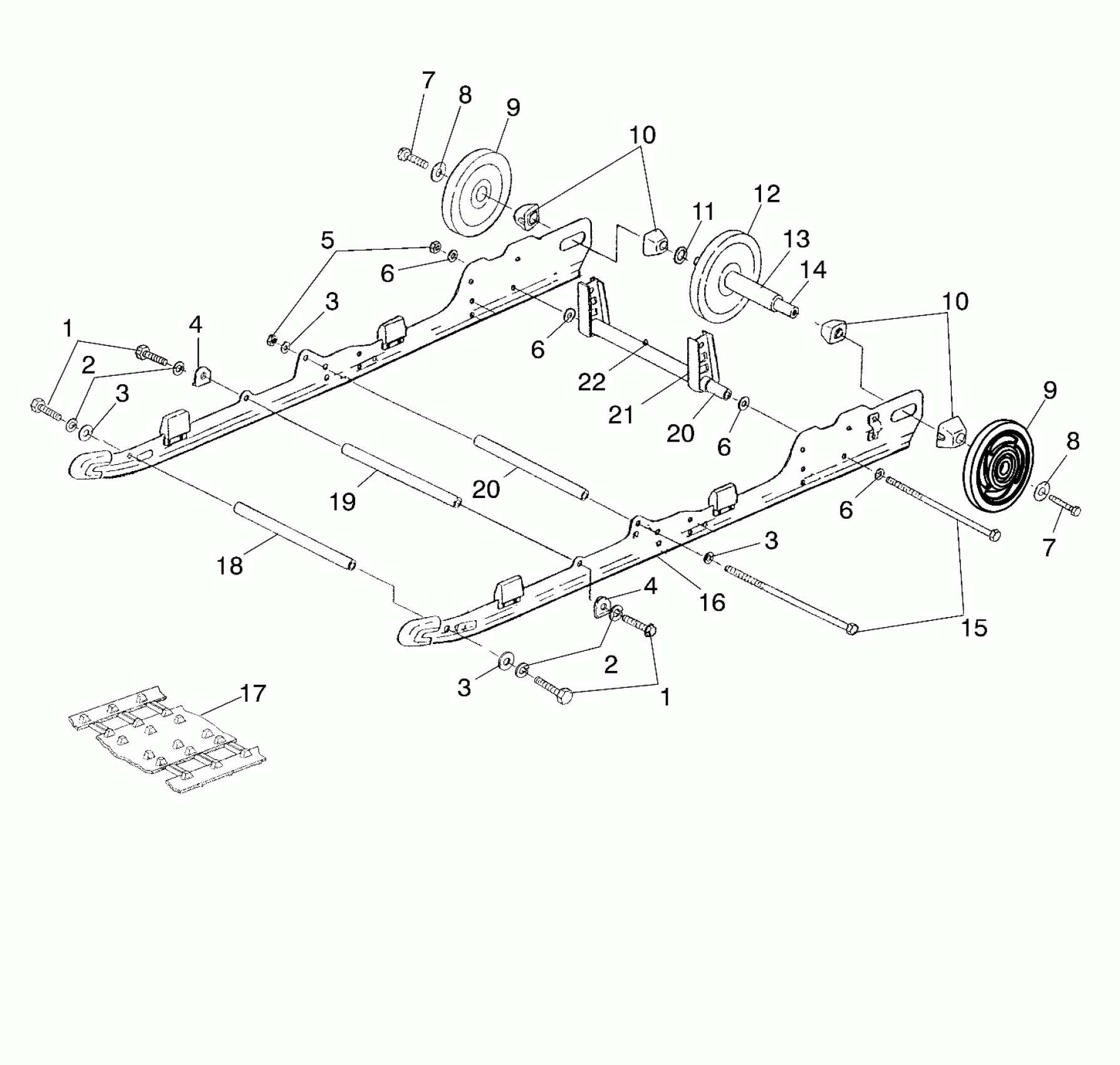

Polaris 500 INDY - S00SB4BS SUSPENSION - S00SB4BS (4952895289b006) Diagram

#

Description
Price

1

SCREW,(10)

7517247

$3.19

1

SCREW,(10)

7517247

$3.19

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

4

BRKT-SHAFT SUPPORT

5241443

Unavailable

4

BRKT-SHAFT SUPPORT

5241443

Unavailable

5

NUT LOCK(10)

7542411

$3.19

6

WASHER(10)

7555893

$1.49

6

WASHER(10)

7555893

$1.49

6

WASHER(10)

7555893

$1.49

6

WASHER(10)

7555893

$1.49

7

BOLT(10)

7515526

$1.19

7

BOLT(10)

7515526

$1.19

8

WASHER(10) Substituted by 7556130

7571629

Unavailable

8

WASHER(10) Substituted by 7556130

7571629

Unavailable

9

WHEEL,IDLER,SCRLLD,INDYRED

1594083-293

Unavailable

9

WHEEL,IDLER,SCRLLD,INDYRED

1594083-293

Unavailable

10

SPACER-IDLER

5432535

$11.99

10

SPACER-IDLER

5432535

$11.99

11

BUSHING(10)

7555918

$1.59

12

RING-RETAINING

7710444

$8.79

12

WHEEL ASM,PLAIN(6.38 O.D.)

1594087

$72.84

12

Bearing

3514012

Unavailable

13

SPACER-IDLER, LONG

5333285

$11.99

14

SHAFT,IDLER

5020744

$59.99

15

Screw

7517353

Unavailable

16

SLIDER,WHI.,(2)

5521452

$40.46

17

CLIP, TRACK(CAMOPLAST),(10)

5222839

Unavailable

17

CLIP,GUIDE,CAMOPLAST,(10)

5222840

Unavailable

17

TRACK,121 CAMO,LTNG. Substituted by 5411057

5411168

Unavailable

18

SHAFT,PIVOT ARM

5020723

$29.99

19

SHAFT,PIVOT ARM

5020724

$29.99

20

SHAFT

5333404

$24.27

20

SHAFT

5333404

$24.27

21

ARM,R.PIVOT

1540982-067

$38.05

22

ZERK,FITTING,THREADED(10)

7080433

$1.49
