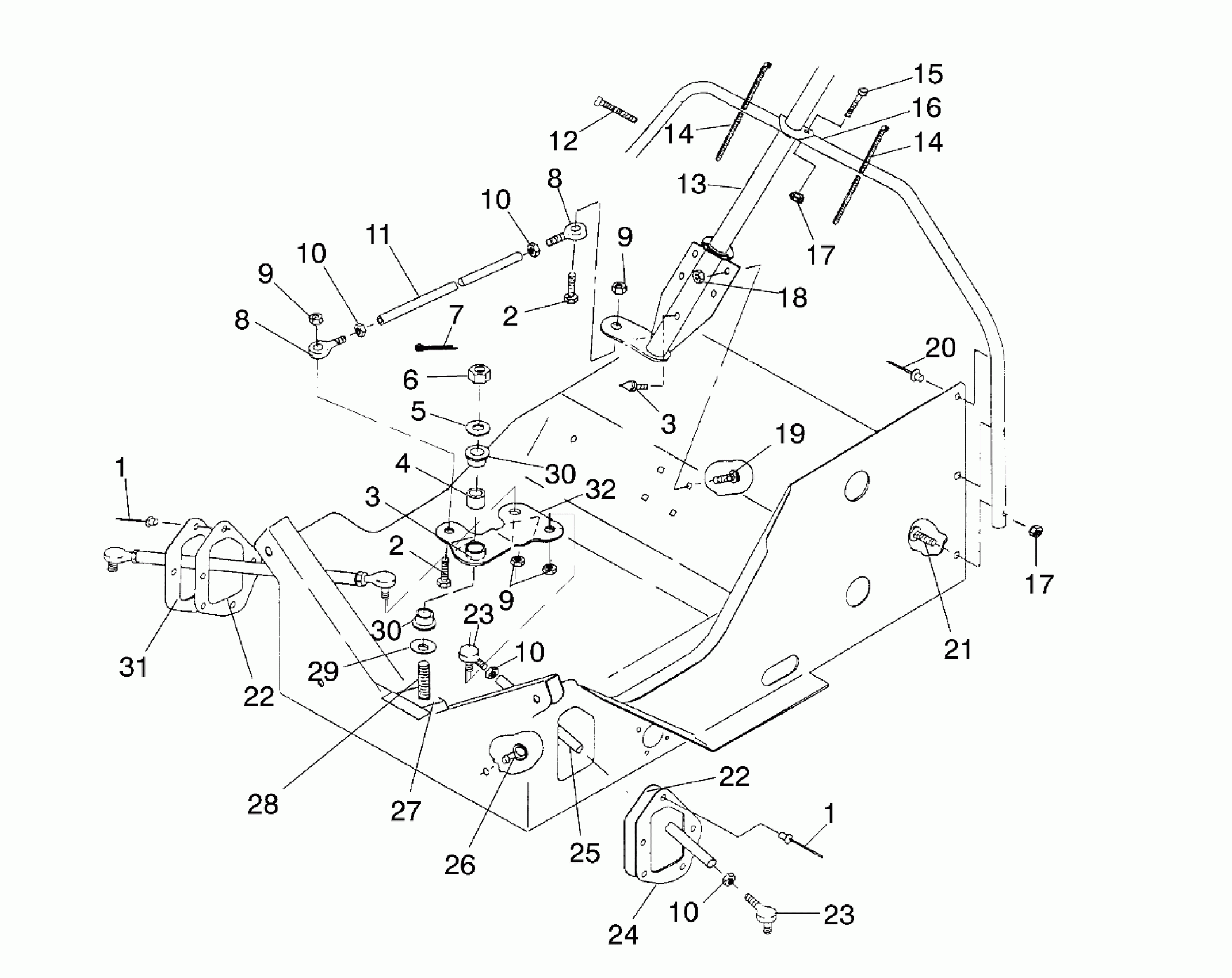

Polaris 500 INDY - S00SB4BS STEERING - S00SB4BS (4952895289b003) Diagram

#

Description
Price

1

RIVET(50)

7621340

$0.56

1

RIVET(50)

7621340

$0.56

2

BOLT(10)

7512404

$3.99

2

BOLT(10)

7512404

$3.99

3

ZERK,FITTING,THREADED(10)

7080433

$1.49

3

ZERK,FITTING,THREADED(10)

7080433

$1.49

4

BUSHING

5010463

$9.70

5

WASHER(10)

7555721

$1.49

6

NUT FLEX,(10)

7542703

Unavailable

7

PIN COTTER(10)

7661203

$1.49

8

ROD END, RH.

7060165

$48.56

8

ROD END, LH.

7060164

$48.56

8

ROD END, RH.

7060165

$48.56

8

ROD END, LH.

7060164

$48.56

9

NUT LOCK(10)

7542403

$3.99

9

NUT LOCK(10)

7542403

$3.99

9

NUT LOCK(10)

7542403

$3.99

10

NUT HEX(10)

7542401

$2.39

10

NUT

7542424

$1.49

10

NUT HEX(10)

7542401

$2.39

10

NUT

7542424

$1.49

10

NUT HEX(10)

7542401

$2.39

10

NUT

7542424

$1.49

10

NUT HEX(10)

7542401

$2.39

10

NUT

7542424

$1.49

11

ROD-DRAG LINK

5332712

Unavailable

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

Post, Steering (See Footnote) (See Steering/Handlebar Pg. B4, Ref. 24)

-------

Unavailable

14

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

14

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

15

SCREW

7517377

$4.79

16

STEERING HOOP,SHORT,BLK

1012887-067

$43.11

17

NUT, LOCK(10)

7542103

$5.59

17

NUT, LOCK(10)

7542103

$5.59

18

NUT FLEX-LOC(10)

7542303

$6.39

19

BOLT,(10)

7517428

$2.39

20

RIVET,INTERLOCK,B(50)

7661638

$1.49

21

BOLT-CARRIAGE(10)

7512275

$3.99

22

BOOT,TIEROD,LH,XTRA

5411122

Unavailable

22

BOOT,TIEROD,RH,XTRA

5411123

$20.22

22

BOOT,TIEROD,LH,XTRA

5411122

Unavailable

22

BOOT,TIEROD,RH,XTRA

5411123

$20.22

23

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

23

ROD END,LH,3/8 HI-ANGLE PRO

7061005

Unavailable

23

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

23

ROD END,LH,3/8 HI-ANGLE PRO

7061005

Unavailable

24

PLATE,BOOTSEAT,BLK.

5211454-067

Unavailable

25

ROD,TIE,BLK.

5020859-067

Unavailable

26

CLIP, PLASTIC(10)

4020139

$4.79

27

BLOCK,STRG,(CAST)

5630563

$32.37

28

BOLT(10)

7512682

Unavailable

29

WASHER,WAVE(10)

7555735

$3.99

30

BUSHING

3563907

$3.99

30

BUSHING

3563907

$3.99

31

PLATE,RH,BOOTSEAL,BLK.

5211453-067

$15.67

32

STRG.ASM,CTR. (Incl. 30)

1822286

$29.60
