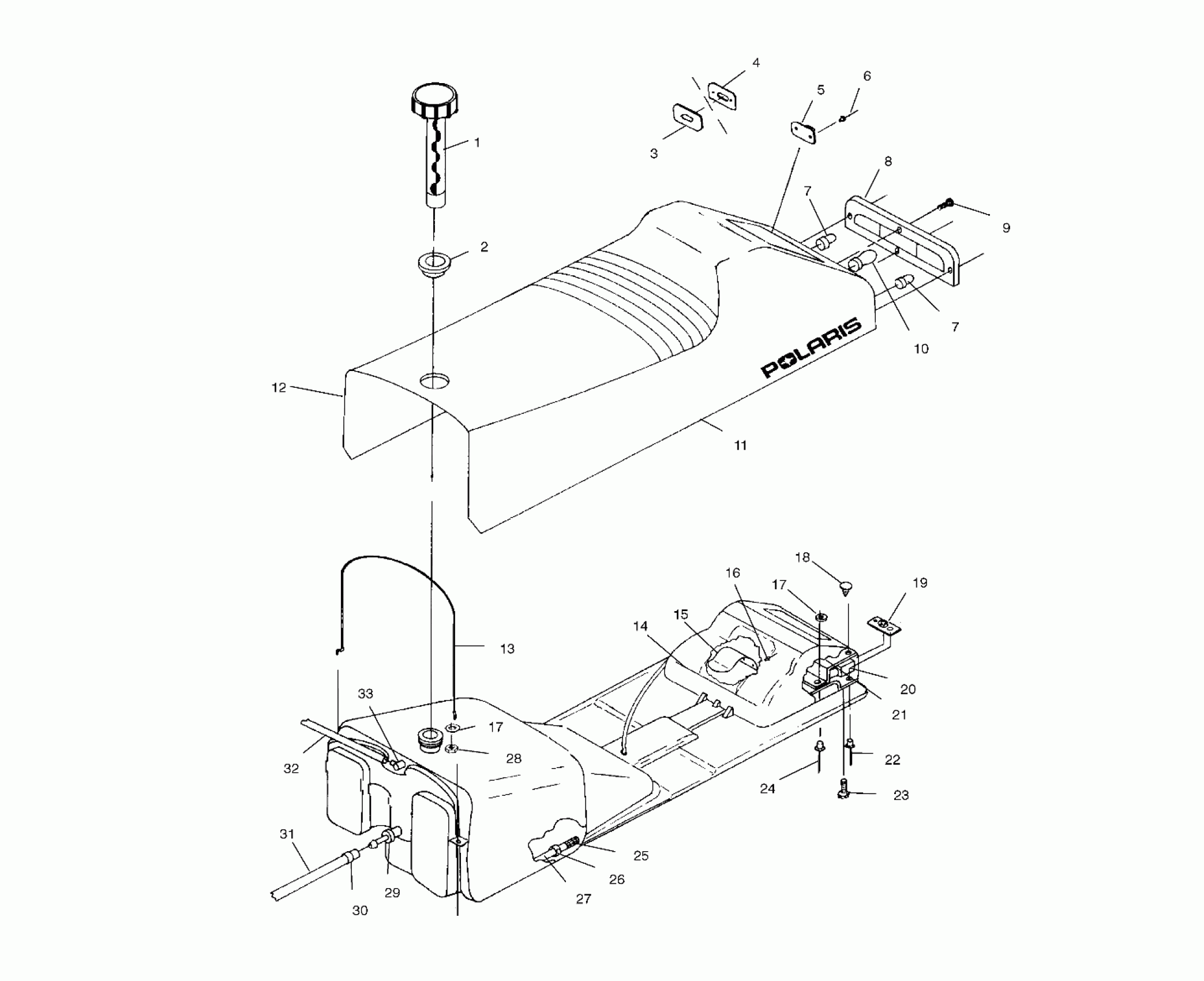

Polaris 500 INDY - S00SB4BS SEAT and GAS TANK - S00SB4BS (4952895289a006) Diagram

#

Description
Price

1

GASKET, GAS CAP

5810513

$8.89

1

CAP,GAS,W/GAUGE

2511248

$44.51

2

GROMMET,FUELTANK

5410842

Unavailable

3

GROMMET,RELATCH,1",BOTT.(10)

7080550

Unavailable

4

GROMMET,RELATCH,1",TOP(10)

7080549

Unavailable

5

TWISTLOCK,RELATCH,1",W/HOLE(10)

7080548

Unavailable

6

RIVET(50)

7621337

$1.49

7

BULB,TAILLIGHT(10)

4030024

$4.84

7

BULB,TAILLIGHT(10)

4030024

$4.84

8

LENS,TAILLIGHT

5430423

Unavailable

9

SCREW(10)

7511840

Unavailable

10

Bulb, Brakelight

4030045

Unavailable

11

COVER ASM,SEAT,LONG

2682412

Unavailable

12

CUSHION,SEAT-ASM (Incl. 3-29,32,33)

2682493

Unavailable

13

CABLE,TANK,RETENTION

7080559

Unavailable

14

HARNESS,TAILLIGHT

2460398

Unavailable

15

RETAINER-CLIP,TOOL POUCH

5243185

$10.63

16

RIVET(50)

7621472

$1.49

17

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

17

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

18

CLIP,DART,(10)

7670097

Unavailable

19

NUT,RETAINER-WELD.(10)

7542147

$17.59

20

HOUSING-TAILLIGHT

5433341

Unavailable

21

COVER,T/L PROTECTOR

5431436

$21.43

22

RIVET(50)

7621301

$3.99

23

SCREW(10)

7512242

$2.39

24

RIVET(50)

7621464

$3.99

25

FUEL PICKUP,W/FILTER Substituted by 7052301

7052243

Unavailable

26

RING, COMPRESSION(10)

7080402

$1.60

27

FUEL LINE-ESTER Substituted by 8350019-160

8350019-600

Unavailable

28

NUT(10)

7541925

$1.49

29

FITTING - OUTLET(10)

7052023

$24.99

30

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

31

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

32

FUELLINE,3MMX7MM

8450061-600

$56.65

33

FITTING,90 DEG,1/8,(10)

7052095

$4.79
