Description

Price

1

SENSOR,OIL LEVEL,W/CONN.

4040040

$72.84

2

CAP,OIL TANK

5430779

$14.56

3

GASKET-OIL CAP

5810141

$2.39

4

WASHER,WROUGHT(10)

7558302

$1.59

4

WASHER,WROUGHT(10)

7558302

$1.59

5

BOLT(10)

7512240

$3.99

6

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

7

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

8

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

9

FITTING, OUTLET

7052042

$8.99

10

Tank, Oil

5431437

Unavailable

11

NUT-LOCK(10)

7542122

$1.49

12

FITTING,90 DEG,1/8,(10)

7052095

$4.79

13

FUELLINE,3MMX7MM

8450061-600

Unavailable

14

BRKT,SIL./REM.FILLER

5241792-067

$24.27

15

SCREW(10)

7512279

$1.49

15

SCREW(10)

7512279

$1.49

16

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

16

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

16

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

17

DECAL,SHUT-OFF VALVE [No Longer Available]

7072151

Unavailable

18

RIVET,INTERLOCK,B(50)

7661638

$1.49

18

RIVET,INTERLOCK,B(50)

7661638

$1.49

19

PLATE,AIR SILENCER

5850075

$24.27

20

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

21

SCREW(10)

7512222

$2.39

22

NUT-WELL(10)

7541923

$5.59

22

NUT-WELL(10)

7541923

$5.59

22

NUT-WELL(10)

7541923

$5.59

23

DECAL,COOL.SYSTEM [No Longer Available]

7075359

Unavailable

24

COVER,SILENCER,DRILLED

5432243

Unavailable

25

CLIP, PLASTIC(10)

4020139

$4.79

26

FOAM,AIRBOX CHIMNEY,HYB.

5811628

$36.41

27

DECAL,CAUTION,AIRBOX

7075351

Unavailable

28

CLIP, AIR BOX,(10)

7670055

$7.99

29

DECAL,ADJ.DRIVEN CLUTCH

7073820

Unavailable

30

BAFFLE ASM.

1253102

$64.75

31

DECAL, GREASING [No Longer Available]

7073426

$7.27

32

BRACKET, SILENCER

5211274

$9.70

33

SILENCER,INTAKE,DRILLED

5432135

Unavailable

34

FITTING,(10)

7052077

$6.39

35

Boot

5410271

Unavailable

36

FITTING, TEE,(10)

7052048

$3.99

37

VENT,CHECKVALVE

7051011

Unavailable

38

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

38

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

39

CONDUIT,CONVOL(6 CM) Substituted by 4010051-15

4010051-06

Unavailable

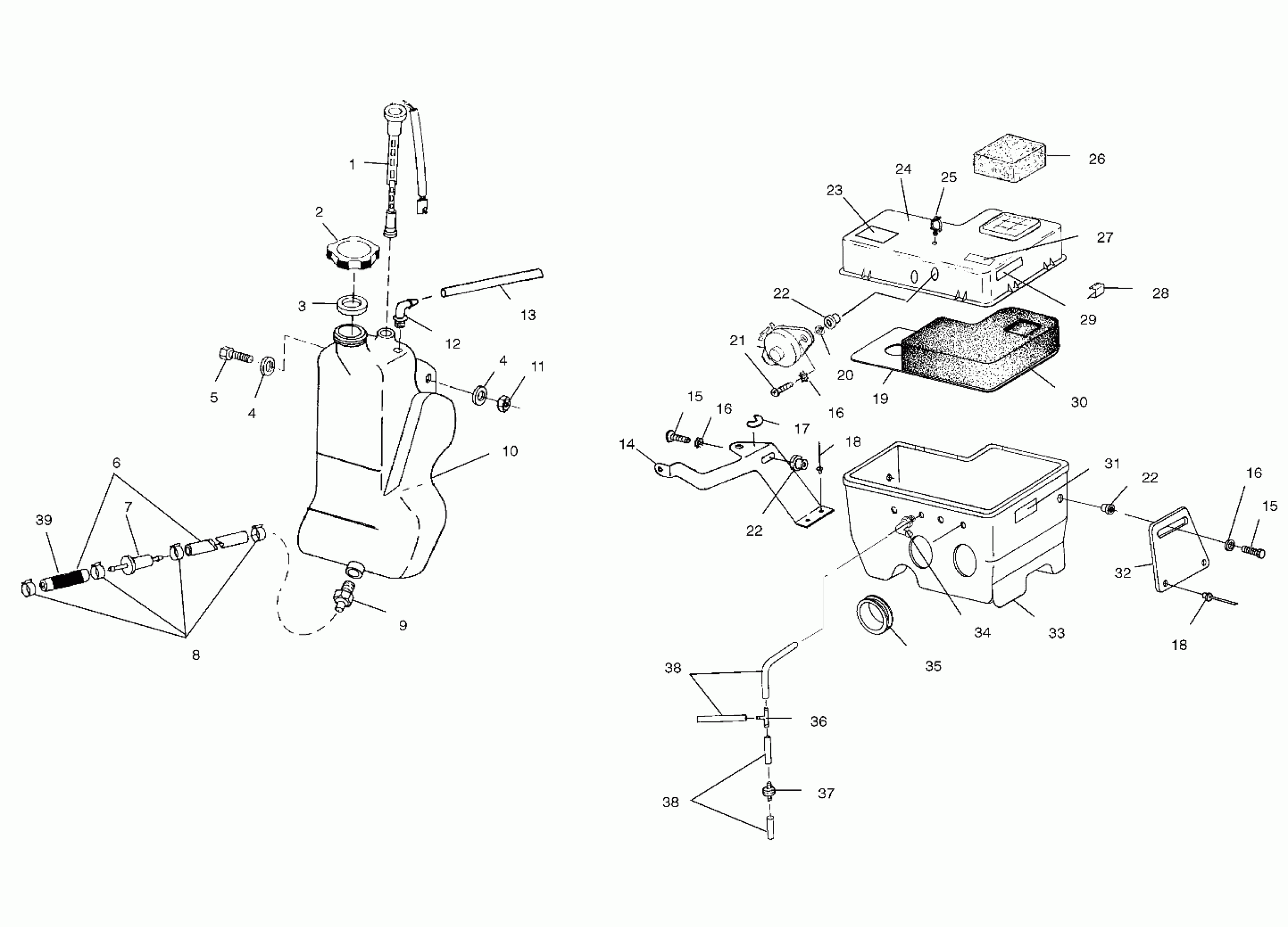

Polaris 500 INDY - S00SB4BS OIL TANK / AIR BOX - S00SB4BS (4952895289c001) Diagram

SENSOR,OIL LEVEL,W/CONN.

CAP,OIL TANK

GASKET-OIL CAP

WASHER,WROUGHT(10)

WASHER,WROUGHT(10)

BOLT(10)

FUEL LINE,1/4 ID(1525 CM.)

FILTER,SMALL,IN-LINE,(10)

CLAMP-HOSE, (LARGE GREEN)

FITTING, OUTLET

Tank, Oil

NUT-LOCK(10)

FITTING,90 DEG,1/8,(10)

FUELLINE,3MMX7MM

BRKT,SIL./REM.FILLER

SCREW(10)

SCREW(10)

WASHER-1/4X1/2X.025 EXT TTH-Y

WASHER-1/4X1/2X.025 EXT TTH-Y

WASHER-1/4X1/2X.025 EXT TTH-Y

DECAL,SHUT-OFF VALVE [No Longer Available]

RIVET,INTERLOCK,B(50)

RIVET,INTERLOCK,B(50)

PLATE,AIR SILENCER

WSHR-FL-.312X.734X.065-Y

SCREW(10)

NUT-WELL(10)

NUT-WELL(10)

NUT-WELL(10)

DECAL,COOL.SYSTEM [No Longer Available]

COVER,SILENCER,DRILLED

CLIP, PLASTIC(10)

FOAM,AIRBOX CHIMNEY,HYB.

DECAL,CAUTION,AIRBOX

CLIP, AIR BOX,(10)

DECAL,ADJ.DRIVEN CLUTCH

BAFFLE ASM.

DECAL, GREASING [No Longer Available]

BRACKET, SILENCER

SILENCER,INTAKE,DRILLED

FITTING,(10)

Boot

FITTING, TEE,(10)

VENT,CHECKVALVE

FUEL LINE,1/8 ID,600 CM.

FUEL LINE,1/8 ID,600 CM.

CONDUIT,CONVOL(6 CM) Substituted by 4010051-15
