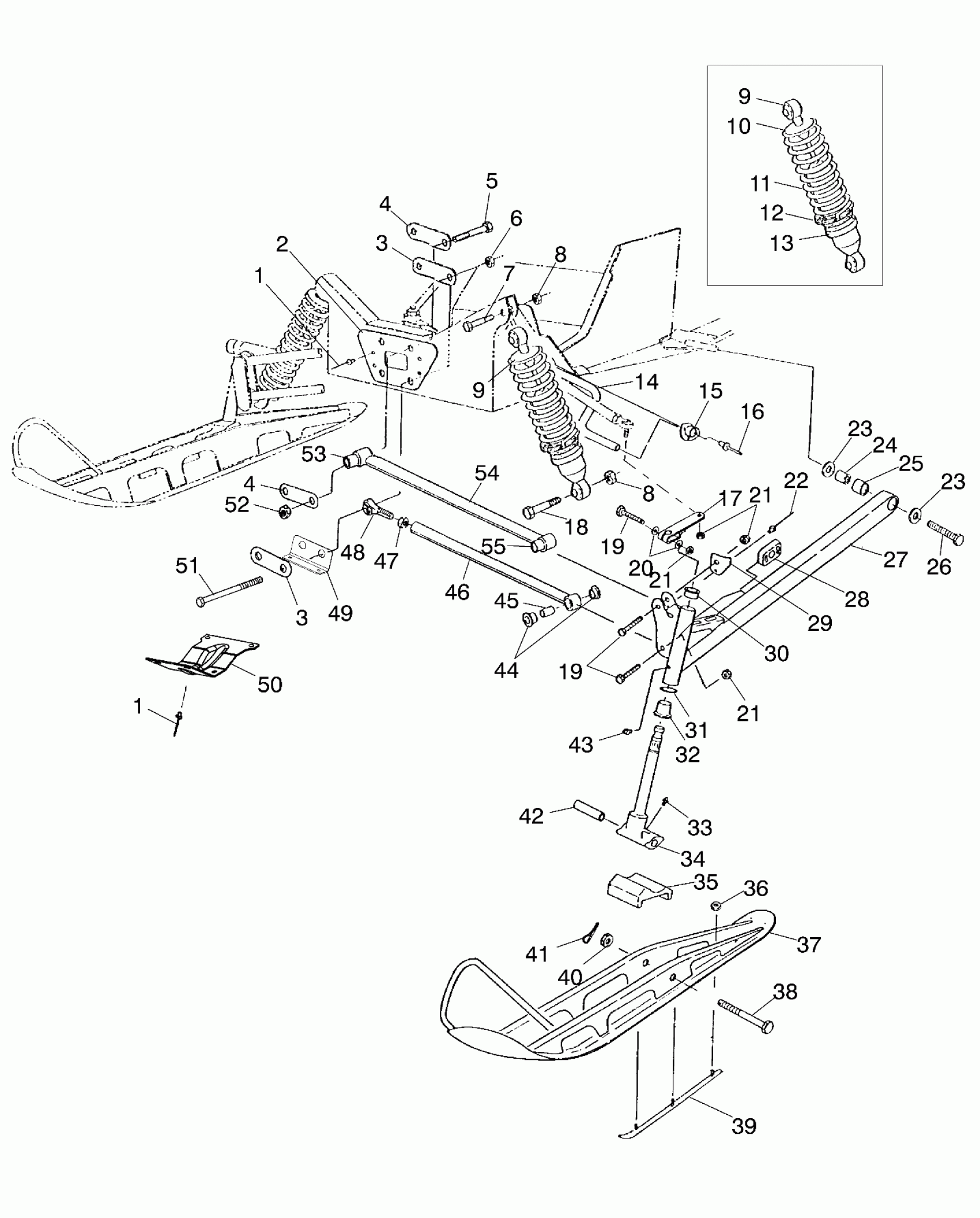

Polaris 500 INDY - S00SB4BS FRONT SUSPENSION and SKI - S00SB4BS (4952895289b001) Diagram

#

Description
Price

1

RIVET,INTERLOCK,B(50)

7661638

$1.49

1

RIVET,INTERLOCK,B(50)

7661638

$1.49

2

BRACE,FR.BULKHEAD

5242117

$16.47

3

STRAP,SPACER BOTTOM

5211345

$12.99

3

STRAP,SPACER BOTTOM

5211345

$12.99

4

STRAP,SPACER TOP

5211344

$7.27

4

STRAP,SPACER TOP

5211344

$7.27

5

BOLT(10)

7512582

$8.79

6

NUT FLEX,(10)

7542703

Unavailable

7

BOLT(10)

7515415

$1.49

8

NUT-LOCK(10)

7542439

$1.49

8

NUT-LOCK(10)

7542439

$1.49

9

SHOCK,GAS,IFS

7041539

Unavailable

9

SHOCK,GAS,IFS

7041539

Unavailable

10

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

11

SPRING,COMP,IFS

7041552-067

$44.51

12

RING,SPRING PRELOAD ADJ.

5431734

$52.60

13

RETAINER,SPRING,BODY,THREADED

1500063

$44.51

14

BAR,SWAY,9/16(X-12)BLK

5224749-067

Unavailable

15

BUSHING,SWAY BAR

5432412

$15.99

16

RIVET(50)

7621433

$1.49

17

ARM,STRG,BLK

5241560-067

Unavailable

18

BOLT Substituted by 7515491

7515433

$1.59

19

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

19

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

20

WSHR-.813X.406X.105-Y

7555832

$2.39

21

NUT LOCK(10)

7542403

$3.99

21

NUT LOCK(10)

7542403

$3.99

21

NUT LOCK(10)

7542403

$3.99

22

RIVET(50) Substituted by 7661130

7661643

Unavailable

23

WASHER(10)

7555721

$1.49

23

WASHER(10)

7555721

$1.49

24

TUBE, BUSHING

5010310

$9.70

25

PIVOT,TRLG.ARM,RUBBER

5410872

$10.99

26

BOLT(10)

7512557

$7.60

27

ARM ASM,TRLG,LH Substituted by 1822506-067 (Incl. 24,25)

1822506

$344.99

27

ARM ASM,TRLG,RH Substituted by 1822507-067 (Incl. 24,25)

1822507

Unavailable

28

SLIDE,SWAYBAR,9/16

5432674

Unavailable

29

STOP,LH,STRG,BLK.

5241569-067

$7.27

29

STOP,RH,STRG,BLK.

5241570-067

$7.27

30

BUSHING-FLANGE

3573909

$2.39

31

WASHER SPECIAL(10)

7556509

$1.59

32

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

33

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

34

SHAFT,SPINDLE,TRLG,BLK

6230102-067

$294.99

35

Stop, Rubber

5411083

$12.94

36

NUT-5/16-18 NYLOK-Y

7542324

$1.49

37

SKI WELD

1820430-067

Unavailable

38

BOLT(10)

7515462

$8.79

39

SKAG,PR.,CARBIDE (Pair)

2870693

$69.99

40

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

41

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

42

BUSHING,PIVOT,(10)

5010158

$19.99

43

ZERK,FITTING,THREADED(10)

7080433

$1.49

44

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

45

BUSHING-RADIUS ROD,(10)

5010127

$7.99

46

ROD,RAD,LOWER,BLK.

1822383-067

Unavailable

47

NUT-JAM(10)

7542711

$2.39

48

RODEND,1/2,W/LINER,1.05 WIDE Substituted by 7061052

7061027

$48.56

49

BRKT,RAD.ROD,BTM.

5242578

$44.99

50

Brace, Pan, Lower (See Nosepan Pg. A7, Ref. 16)

-------

Unavailable

51

BOLT(10)

7512684

Unavailable

52

NUT, LOCK,(10)

7542503

$10.39

53

BUSHING,PIVOT,7/16

5411095

$15.99

54

ROD,RAD,UPPER,FIXED

1822510

$38.89

55

BUSHING,RAD.ROD PIVOT,3/8

5411099

$11.99
