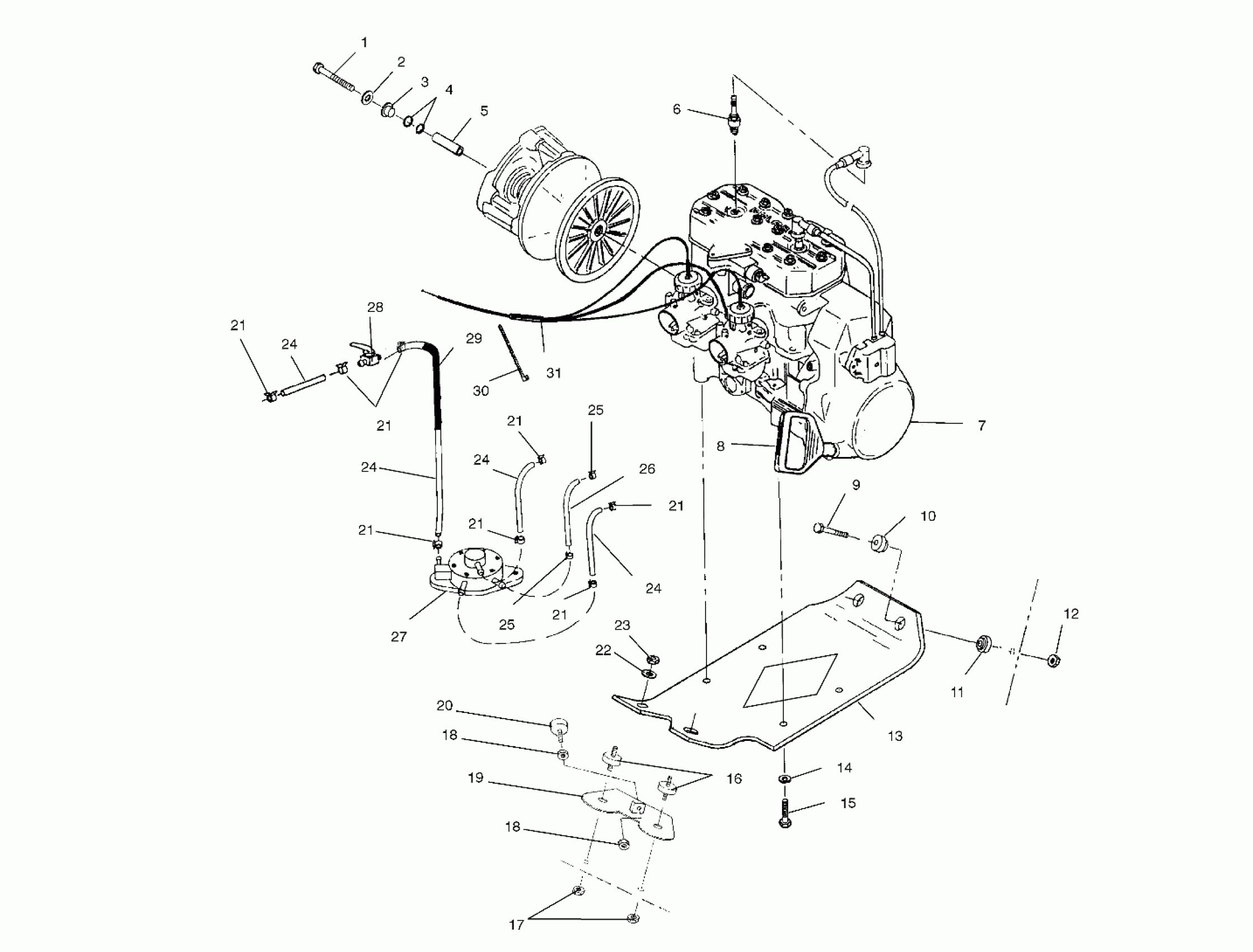

Polaris 500 INDY - S00SB4BS ENGINE MOUNTING - S00SB4BS (4952895289c002) Diagram

#

Description
Price

1

BOLT(10)

7512565

$19.99

2

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

3

WASHER,CLUTCH RETAINER

5010278

Unavailable

4

O RING,(10)

5410507

$1.49

5

SPACER,CLUTCH BOLT

5020513

$44.99

6

SPARKPLUG, RN3C(8)

3070166

$3.99

7

ENG.(S.B.)EC50PL-17/18 [No Longer Available] (EC50PL173) (See Footnote) Note: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft

3085396

Unavailable

8

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

9

SCREW(10)

7512530

$5.59

10

MOUNT-ENGINE RUBBER,TOP

5411685

$24.27

11

MOUNT-ENGINE RUBBER,BOTTOM

5411686

$28.32

12

NUT,FLANGE(10)

7542522

$5.59

13

PLATE,MTR.MT,LWT

5131772

$108.99

14

WASHER LOCK(10)

7553101

$3.99

15

BOLT(10)

7512539

$3.99

16

MOUNT,ENG.

3110061

$84.99

17

NUT,FLEXLOCK,(10)

7547008

$6.39

18

NUT,HEX(10)

7542414

$4.79

18

NUT,HEX(10)

7542414

$4.79

19

LIMITER,TORQUE,TWIN-Z

1012608

$35.51

20

STOP,TORQUE,COARSE,1.94 DIA

3110063

$29.99

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

22

WASHER(10)

7555893

$1.49

23

NUT FLEX LOC,(10)

7542402

$6.39

24

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

24

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

24

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

24

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

25

HOSE CLAMP, RED

7080003

$1.49

25

HOSE CLAMP, RED

7080003

$1.49

26

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

27

Asm., Fuel Pump (See Fuel Pump Pg. C7, Ref. 1)

-------

Unavailable

28

VALVE,FUEL SHUT-OFF

7052060

Unavailable

29

CONDUIT,CONVOL(15 CM) Substituted by 4010051-30

4010051-15

Unavailable

30

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

31

CABLE,THROTTLE,W/OIL

7080520

Unavailable
