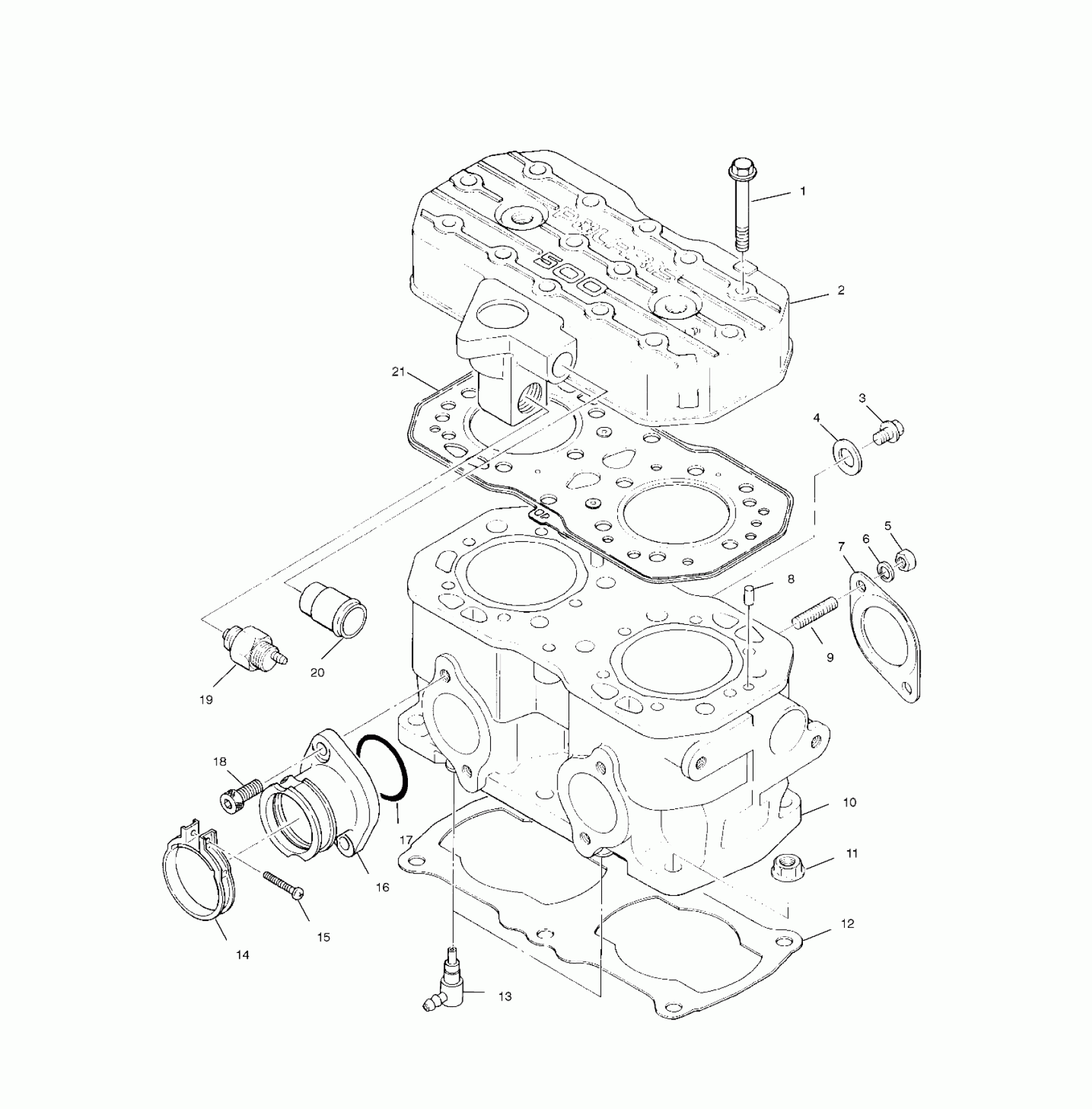

Polaris 500 INDY - S00SB4BS CYLINDER - S00SB4BS (4952895289c004) Diagram

#

Description
Price

1

BOLT,FLANGE

3085582

$3.99

2

HEAD,CYLINDER (Incl. 20)

3085584

$609.99

3

Plug

3084491

Unavailable

4

Gasket, Aluminum

3084492

$4.03

5

NUT(10)

3080285

Unavailable

6

WASHER LOCK ,(10)

3080530

$3.19

7

GASKET,EXHAUST,NA(10) Substituted by 3086757

3084439

Unavailable

8

PIN, DOWEL Substituted by 3086838

3080103

$7.14

9

STUD,(10)

3085326

Unavailable

10

Cylinder (Incl. 9)

3085583

$649.99

11

NUT-FLANGE(10)

3082911

$1.99

12

Gasket, Base

3084768

$64.99

13

VALVE, CHECK Substituted by 3086785

3083337

Unavailable

14

BAND ASM. (Incl. 15)

3083166

$19.84

15

SCREW,(10)

3081497

$2.39

16

ADAPTER (Incl. 17)

3084325

Unavailable

17

O-RING

3085619

$20.22

18

Bolt, Allen

3081330

$3.99

19

SWITCH,THERMAL(93 DEG.C.) (93 Degree C)

3083055

Unavailable

20

Pipe, Water

3083452

Unavailable

21

GASKET 2,HEAD

3085585

Unavailable
