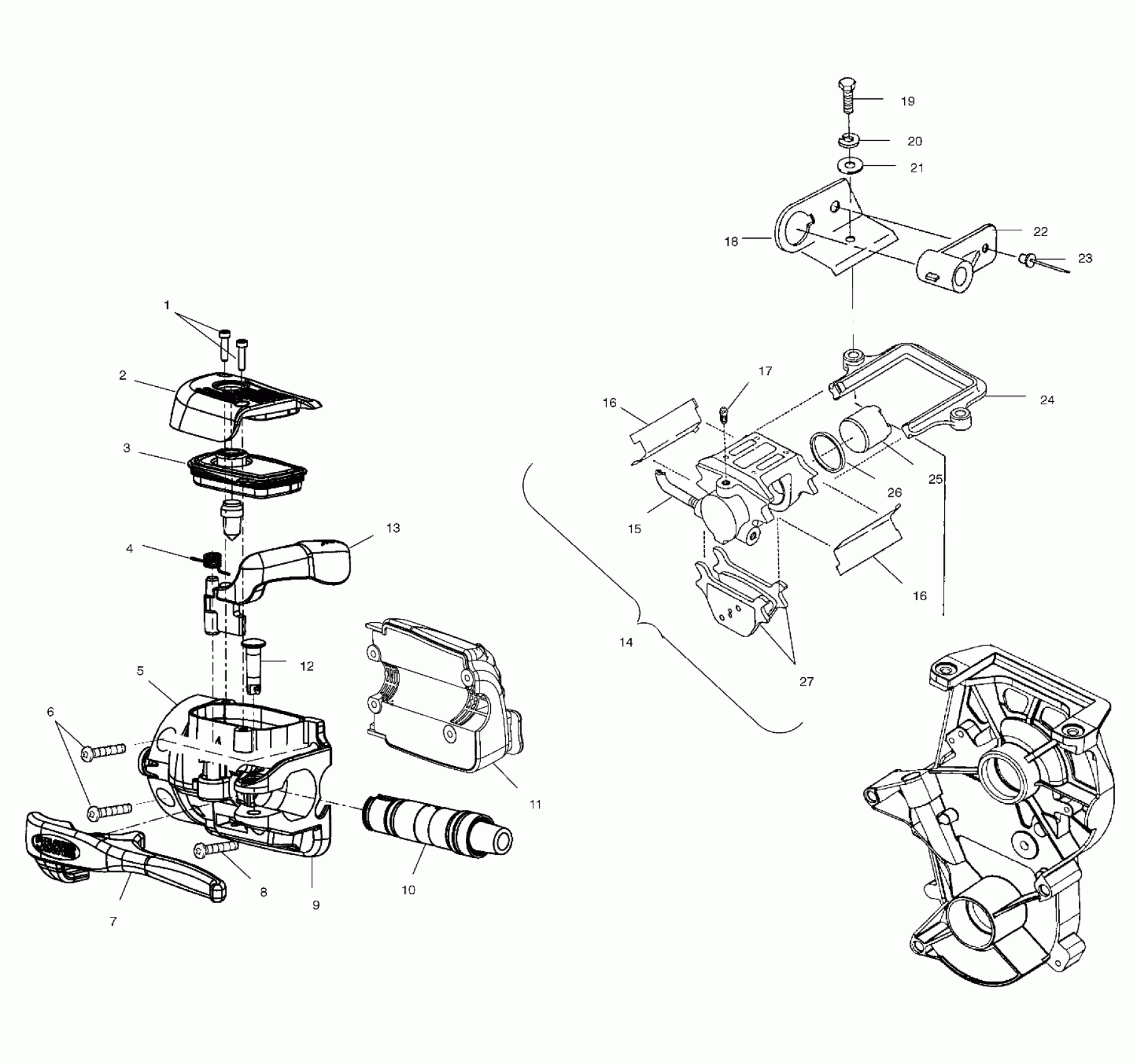

Polaris 500 INDY - S00SB4BS BRAKE - S00SB4BS (4952895289a014) Diagram

#

Description
Price

1

KIT,COVER SCREW,(HAYES)

2201254

$19.99

2

KIT,COVER ASM,(HAYES) (Incl. 1,3)

2201255

$89.03

3

GASKET

-------

Unavailable

4

KIT,PARKLEVER SPRING

2201250

$24.27

5

MASTERCYL ASM,HAYES,5/8 Substituted by 2010209 (Incl. 2,4,7,9,10,12)

2050087

$304.98

6

SCREW(10)

7517441

$2.39

7

LEVER AND PIVOT PIN,HAYES,KIT Substituted by 2201943

2201569

$52.60

8

SCREW(10)

7517566

$3.99

9

KIT,CLAMP BODY/RESERVOIR KIT Substituted by 2201948

2201249

$304.98

9

SWITCH,BRAKE LIGHT

4010157

Unavailable

10

KIT,5/8" CARTRIDGE SUB-ASM.KIT Substituted by 2201944

2201248

Unavailable

11

CONTROL ASM,LH,(BASIC)

2010167

$93.08

12

KIT,PIVOT PIN,(HAYES) Substituted by 2201946

2201252

Unavailable

13

KIT,PARKLEVER & SPRING (Incl. 4)

2201251

$44.51

14

BRAKE CALIPER,TYPE 81,NOSW (Incl. 25,26,27)

1910346

$247.60

15

LINE,BRAKE

1930755

Unavailable

16

KIT,CLIP SPRING (Qty. 2)

2200467

Unavailable

16

KIT,CLIP SPRING (Qty. 2)

2200467

Unavailable

17

KIT, INLET

1930735

$9.11

18

BRKT,ROPE GUIDE,BLK.

5240171-067

Unavailable

19

BOLT(10)

7515521

$3.99

20

WASHER(10)

7552603

$1.49

21

WASHER(10)

7555806

$1.49

22

GUIDE, RECOIL

5431385

$10.51

23

RIVET(50)

7621433

$1.49

24

KIT,CALIPER BRKT.

1930733

Unavailable

25

KIT, PISTON SEAL (Incl. 26)

1930734

Unavailable

26

SEAL

2200466

$32.37

27

KIT,BRAKE,PAD TYPE 81(LARGE) (Incl. 16)

2201430

Unavailable

27

KIT,BRAKE,PAD TYPE 81(SMALL) (Incl. 16)

2201429

Unavailable
