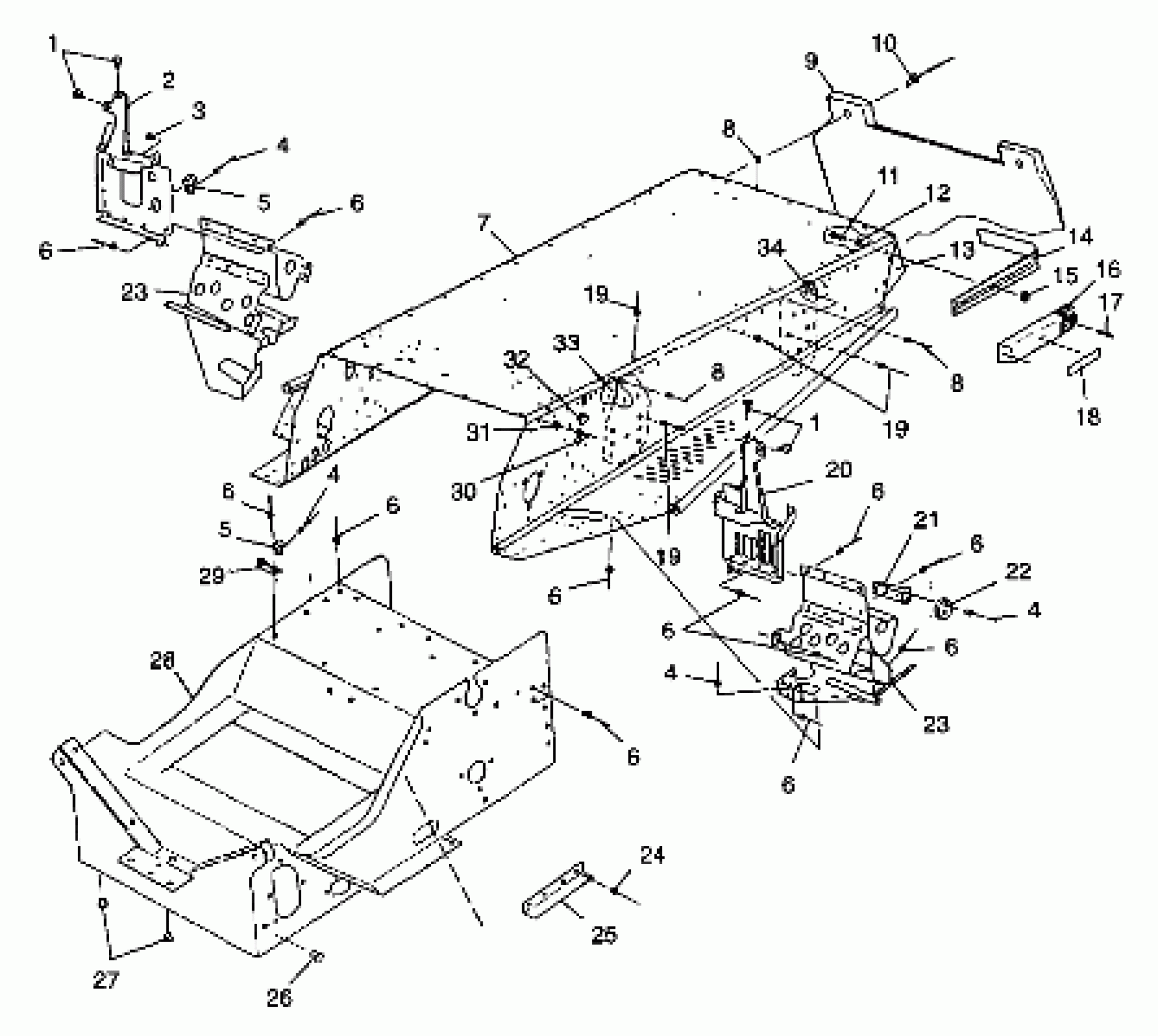

Polaris 500 INDY - 099EB4BS TUNNEL - 099EB4BS (4946834683a005) Diagram

#

Description
Price

1

BUMPER,HOOD

5410768

$2.95

1

BUMPER,HOOD

5410768

$2.95

2

MT,CONSOLE,RH

1011952-067

$339.99

3

SCREW(10)

7512057

$2.38

4

RIVET,3/16X.402(50)

7621432

$1.49

4

RIVET,3/16X.402(50)

7621432

$1.49

4

RIVET,3/16X.402(50)

7621432

$1.49

4

RIVET,3/16X.402(50)

7621432

$1.49

5

GUIDE, RECOIL

5431385

$10.51

5

GUIDE, RECOIL

5431385

$10.51

6

RIVET,INTERLOCK,B(50)

7661638

$1.49

6

RIVET,INTERLOCK,B(50)

7661638

$1.49

6

RIVET,INTERLOCK,B(50)

7661638

$1.49

6

RIVET,INTERLOCK,B(50)

7661638

$1.49

6

RIVET,INTERLOCK,B(50)

7661638

$1.49

6

RIVET,INTERLOCK,B(50)

7661638

$1.49

6

RIVET,INTERLOCK,B(50)

7661638

$1.49

6

RIVET,INTERLOCK,B(50)

7661638

$1.49

6

RIVET,INTERLOCK,B(50)

7661638

$1.49

6

RIVET,INTERLOCK,B(50)

7661638

$1.49

6

RIVET,INTERLOCK,B(50)

7661638

$1.49

7

TUNNEL ASM,LIQ,EVOL,BLK. (Incl. 13,33,34)

1012378-067

$395.99

8

RIVET,SEMI-TUBE,(50)

7661841

$1.49

8

RIVET,SEMI-TUBE,(50)

7661841

$1.49

8

RIVET,SEMI-TUBE,(50)

7661841

$1.49

9

FLAP,SNOW,(XTRA-10) Substituted by 5432149-1106

5432149

Unavailable

10

POP RIVET(50)

7621418

$1.49

11

BOLT(10)

7512240

$3.99

12

WASHER(10)

7558301

$1.49

13

PANEL,TUNNELBACK

5241053-067

$308.99

14

BUMPER,REAR,STD.

5224674-067

Unavailable

15

NUT-LOCK(10)

7542122

$1.49

16

CAP, BUMPER, BLK.

5430930-070

Unavailable

17

SCREW(10)

7511863

$1.99

18

REFLECTOR RED

2670070

$9.91

19

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

19

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

19

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

20

MT,CONSOLE,LH

1011951-067

$35.51

21

SUPPORT,BUMPERSIDE,BLK.

5240294-067

Unavailable

22

STOP,SIDEPANEL BUMPER

5411172

Unavailable

23

FOOTREST ASM,LH,BLK. Substituted by 1012544

1011934

Unavailable

23

FOOTREST ASM,RH,BLK. Substituted by 1012545

1011935

Unavailable

23

FOOTREST ASM,LH,BLK. Substituted by 1012544

1011934

Unavailable

23

FOOTREST ASM,RH,BLK. Substituted by 1012545

1011935

Unavailable

24

RIVET(50)

7621452

$1.49

25

GUARD,ADAPTER GUIDE

5222857

$12.94

26

PLUG, HOLE(10)

7080416

$5.65

27

PLUG-HOLE

7080398

$4.84

28

BULKHEAD ASM,LIQ,BLK.

1012652-067

$436.51

29

BRKT,ROPE GUIDE,BLK.

5222687-067

$59.99

30

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

31

SNAP-MALE(10)

7080227

Unavailable

32

NUT,SERT(10)

7541938

Unavailable

33

PAD,LH,FR.SUSP.MTG. Substituted by 5244287-067

5241303-067

Unavailable

33

PAD,RH,FR.SUSP.MTG. Substituted by 5244287-067

5241304-067

Unavailable

34

PAD,LH,R.SUSP.

5241268-067

Unavailable

34

PAD,RH,R.SUSP.

5241269-067

Unavailable
