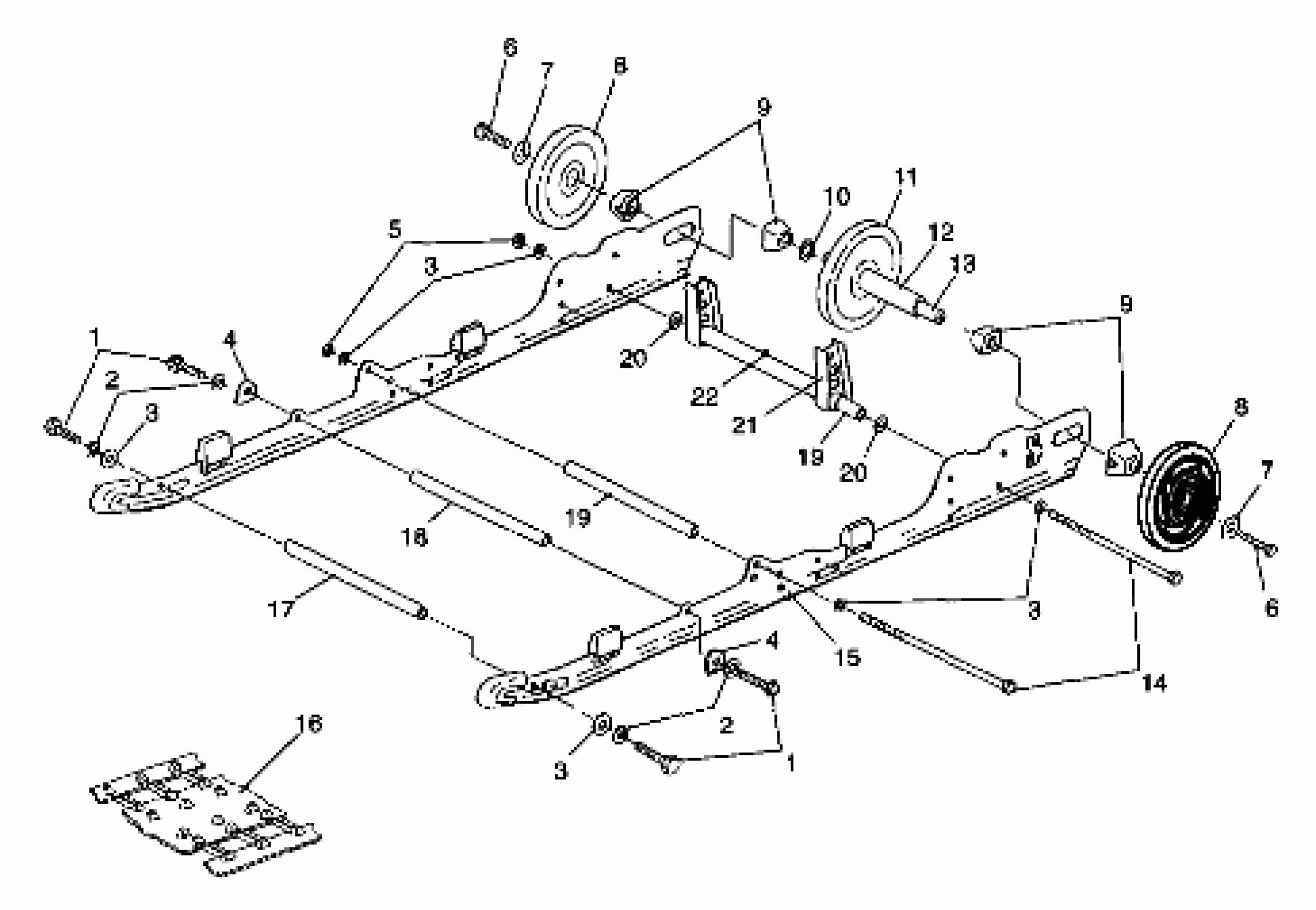

Polaris 500 INDY - 099EB4BS SUSPENSION - 099EB4BSA (4946834683b005) Diagram

#

Description
Price

1

SCREW,(10)

7517247

$3.19

1

SCREW,(10)

7517247

$3.19

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

4

BRKT-SHAFT SUPPORT

5241443

Unavailable

4

BRKT-SHAFT SUPPORT

5241443

Unavailable

5

NUT LOCK(10)

7542411

$3.19

6

BOLT(10)

7515526

$1.19

6

BOLT(10)

7515526

$1.19

7

WASHER(10) Substituted by 7556130

7571629

Unavailable

7

WASHER(10) Substituted by 7556130

7571629

Unavailable

8

WHEEL,IDLER,SCRL,M.BLUE

1594083-107

Unavailable

8

WHEEL,IDLER,SCRL,M.BLUE

1594083-107

Unavailable

9

SPACER-IDLER

5432535

$11.99

9

SPACER-IDLER

5432535

$11.99

10

BUSHING(10)

7555918

$1.59

11

RING,SNAP,(FOX SP)

7710446

$6.23

11

WHEEL ASM,PLAIN(6.38 O.D.)

1594087

$72.84

11

Bearing

3514012

Unavailable

12

SPACER-IDLER, LONG

5333285

$11.99

13

SHAFT,IDLER

5020744

$59.99

14

Screw

7517353

Unavailable

15

SLIDER,WHI.,(2)

5521452

$40.46

16

CLIP, TRACK(CAMOPLAST),(10)

5222839

Unavailable

16

CLIP,GUIDE,CAMOPLAST,(10)

5222840

Unavailable

16

TRACK,121 CAMO,LTNG. Substituted by 5411057

5411168

Unavailable

17

SHAFT,PIVOT ARM

5020723

$29.99

18

SHAFT,PIVOT ARM

5020724

$29.99

19

SHAFT

5333404

$24.27

19

SHAFT

5333404

$24.27

20

WASHER(10)

7555893

$1.49

20

WASHER(10)

7555893

$1.49

21

ARM,R.PIVOT

1540982-067

$38.05

22

ZERK,FITTING,THREADED(10)

7080433

$1.49
