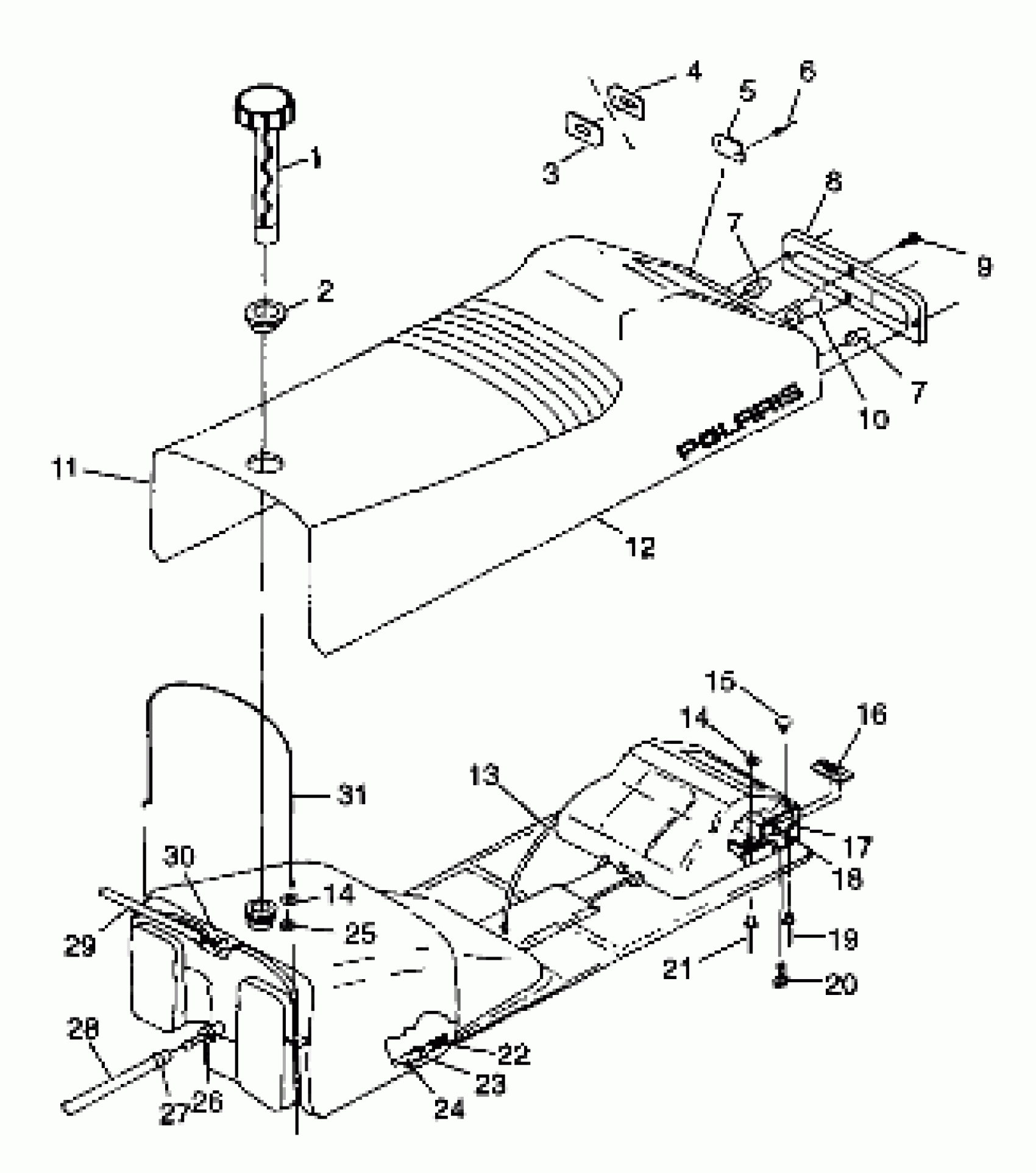

Polaris 500 INDY - 099EB4BS SEAT and GAS TANK - 099EB4BSA (4946834683a006) Diagram

#

Description
Price

1

GASKET, GAS CAP

5810513

$8.89

1

CAP,GAS,W/GAUGE

2511248

$44.51

2

GROMMET,FUELTANK

5410815

Unavailable

3

GROMMET,RELATCH,1",BOTT.(10)

7080550

Unavailable

4

GROMMET,RELATCH,1",TOP(10)

7080549

Unavailable

5

TWISTLOCK,RELATCH,1",W/HOLE(10)

7080548

Unavailable

6

RIVET(50)

7621337

$1.49

7

BULB,TAILLIGHT(10)

4030024

$4.84

7

BULB,TAILLIGHT(10)

4030024

$4.84

8

LENS,TAILLIGHT

5430423

Unavailable

9

SCREW(10)

7511840

Unavailable

10

Bulb, Brakelight

4030045

Unavailable

11

SEAT ASM. (Long)

2682369

Unavailable

11

SEAT ASM. (See Footnote) (Incl. 3-26,29-31) (Model 099EB4BSA)

2682369

Unavailable

11

SEAT ASM.

2682393

Unavailable

11

SEAT ASM. (See Footnote) (Incl. 3-26,29-31) (Model 099EB4BS)

2682393

Unavailable

12

COVER ASM,SEAT,LONG (Long)

2682370

Unavailable

12

COVER ASM,SEAT,LONG (Model 099EB4BSA)

2682370

Unavailable

12

COVER ASM,SEAT

2682386

Unavailable

12

COVER ASM,SEAT (Model 099EB4BS)

2682386

Unavailable

13

HARNESS,TAILLIGHT

2460398

Unavailable

14

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

14

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

15

CLIP,DART,(10)

7670097

Unavailable

16

NUT,RETAINER-WELD.(10)

7542147

$17.59

17

HOUSING,TAILLIGHT Substituted by 5433341

5431545

Unavailable

18

COVER,T/L PROTECTOR

5431436

$21.43

19

RIVET(50)

7621301

$3.99

20

SCREW(10)

7512242

$2.39

21

RIVET(50)

7621464

$3.99

22

FUELPICKUP,W/STRAINER

7052037

$12.94

23

RING, COMPRESSION(10)

7080402

$1.60

24

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

25

NUT(10)

7541925

$1.49

26

FITTING - OUTLET(10)

7052023

$24.99

27

HOSE CLAMP, RED

7080003

$1.49

28

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

29

FUELLINE,3MMX7MM

8450061-600

Unavailable

30

FITTING,90 DEG,1/8,(10)

7052095

$4.79

31

CABLE,TANK,RETENTION

7080559

Unavailable
