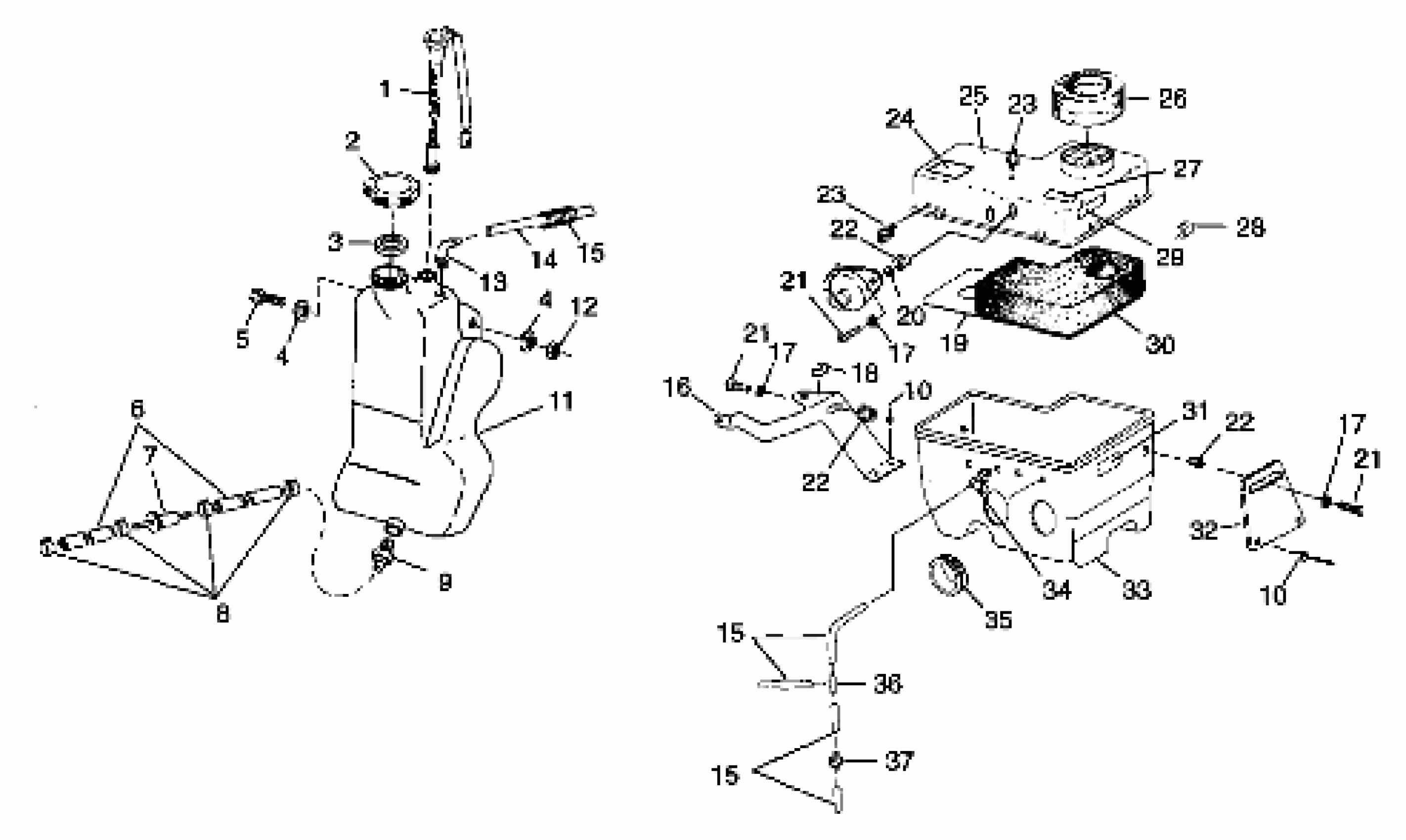

Polaris 500 INDY - 099EB4BS OIL TANK / AIR BOX - 099EB4BS(A) (4946834683c004) Diagram

#

Description
Price

1

SENSOR,OIL LEVEL,W/CONN.

4040040

$72.84

2

CAP,OIL TANK

5430779

$14.56

3

GASKET-OIL CAP

5810141

$2.39

4

WASHER,WROUGHT(10)

7558302

$1.59

4

WASHER,WROUGHT(10)

7558302

$1.59

5

BOLT(10)

7512240

$3.99

6

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

7

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

8

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

9

FITTING, OUTLET

7052042

$8.99

10

RIVET-3/16-.090-.290

7661637

$1.49

10

RIVET-3/16-.090-.290

7661637

$1.49

11

Tank, Oil

5431437

Unavailable

12

NUT-LOCK(10)

7542122

$1.49

13

FITTING,90 DEG,1/8,(10)

7052095

$4.79

14

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

15

SPRING,PROTECT.VENTHOSE

7041605

Unavailable

15

SPRING,PROTECT.VENTHOSE

7041605

Unavailable

15

SPRING,PROTECT.VENTHOSE

7041605

Unavailable

16

BRKT,SIL./REM.FILLER

5241792-067

$24.27

17

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

17

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

17

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

18

DECAL,SHUT-OFF VALVE [No Longer Available]

7072151

Unavailable

19

PLATE,AIR SILENCER

5850075

$24.27

20

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

21

SCREW(10)

7512222

$2.39

21

SCREW(10)

7512222

$2.39

21

SCREW(10)

7512222

$2.39

22

NUT-WELL(10)

7541923

$5.59

22

NUT-WELL(10)

7541923

$5.59

22

NUT-WELL(10)

7541923

$5.59

23

CLIP, PLASTIC(10)

4020139

$4.79

23

CLIP, PLASTIC(10)

4020139

$4.79

24

DECAL,COOL.SYSTEM [No Longer Available]

7075359

Unavailable

25

COVER,AIR SILENCER

5432480

Unavailable

26

DUCT ASM,AIR

2620057

$40.46

27

DECAL,CAUTION,AIRBOX

7075351

Unavailable

28

CLIP, AIR BOX,(10)

7670055

$7.99

29

DECAL,ADJ.DRIVEN CLUTCH

7073820

Unavailable

30

BAFFLE ASM.

1253116

$59.99

31

DECAL, GREASING [No Longer Available]

7073426

$7.27

32

BRACKET, SILENCER

5211274

$9.70

33

SILENCER,INTAKE,DRILLED

5432135

Unavailable

34

FITTING,(10)

7052077

$6.39

35

Boot

5410271

Unavailable

36

FITTING, TEE,(10)

7052048

$3.99

37

VENT,CHECKVALVE

7051011

Unavailable
