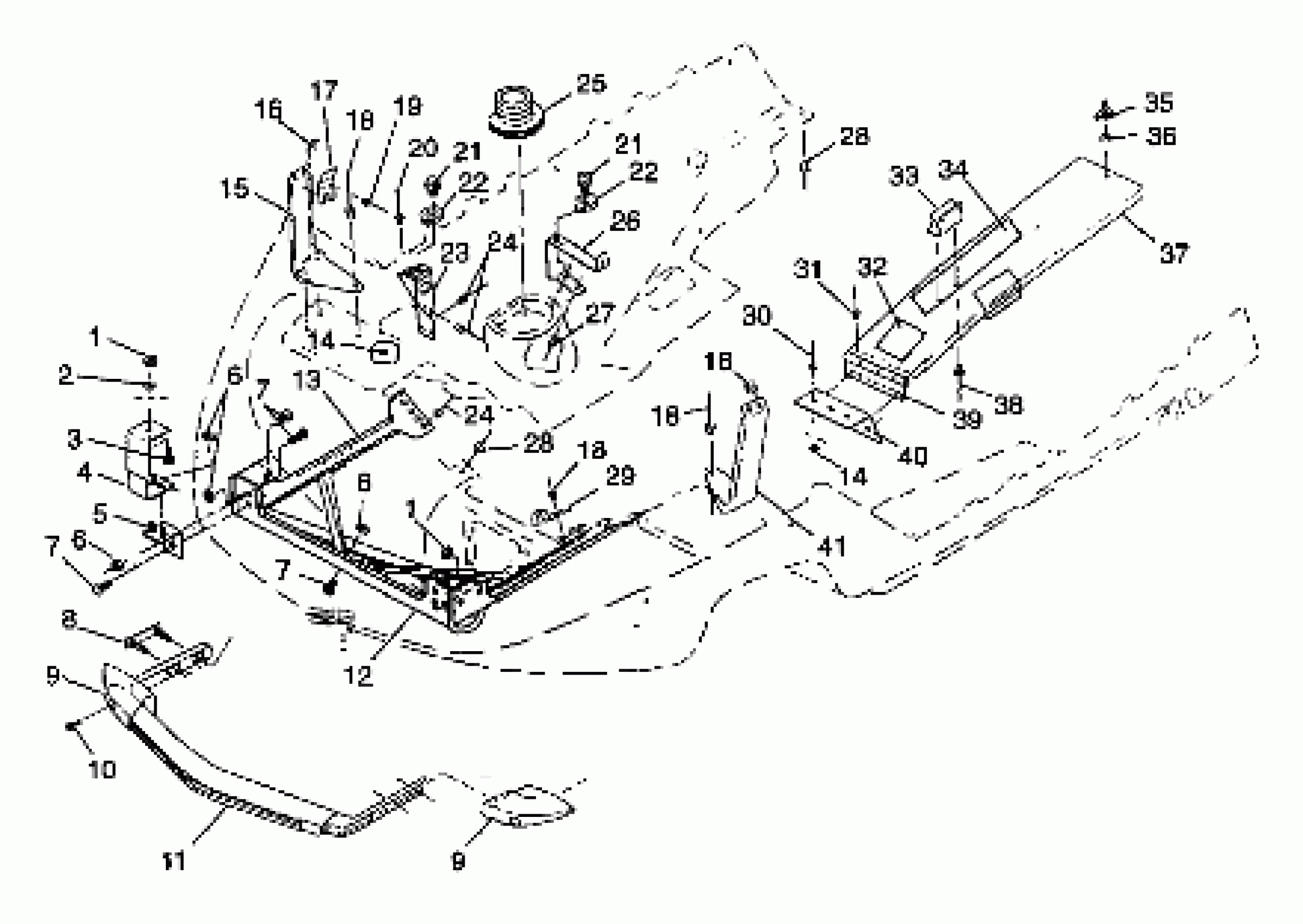

Polaris 500 INDY - 099EB4BS NOSEPAN - 099EB4BS (4946834683a007) Diagram

#

Description
Price

1

NUT FLEX-LOC(10)

7542303

$6.39

1

NUT FLEX-LOC(10)

7542303

$6.39

2

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

3

SCREW(10)

7512310

$2.39

4

HINGE ASM,HOOD,BLK.

2635013-067

Unavailable

5

MOUNT,HINGE,BLK.

1011982-067

$45.99

6

NUT(10)

7542153

$1.59

6

NUT(10)

7542153

$1.59

6

NUT(10)

7542153

$1.59

7

BOLT,(10)

7515203

$3.99

7

BOLT,(10)

7515203

$3.99

7

BOLT,(10)

7515203

$3.99

8

STUDPLATE ASM,BUMP.SUPP.

1012648

Unavailable

9

CAP,BUMPER,BLK.MET.

5432429-177

Unavailable

9

CAP,BUMPER,BLK.MET.

5432429-177

Unavailable

10

SCREW,(10)

7512024

$4.79

11

BUMPER ASM,FRT,EVOLVED,BLK

2670184-067

Unavailable

12

BRACE,HD.SUPPORT,BLK.

5241003-067

$49.21

13

SUPPORT,LH,BUMPER

1012327-067

$63.49

13

SUPPORT,RH,BUMPER

1012328-067

$133.29

14

BURR,RIVET(50)

7555904

$1.49

14

BURR,RIVET(50)

7555904

$1.49

15

BRKT,RH,SIDEPANEL

5240995

Unavailable

16

NUT, RETAINER(10)

7542146

Unavailable

16

NUT, RETAINER(10)

7542146

Unavailable

17

SHIELD,FASTENER

5240769

$0.90

18

RIVET(50)

7621485

$1.49

18

RIVET(50)

7621485

$1.49

18

RIVET(50)

7621485

$1.49

19

RIVET(50)

7621318

$1.49

20

RIVET(50) Substituted by 7661130

7661643

Unavailable

21

DAMPNER, VIB.

5410467

$8.79

21

DAMPNER, VIB.

5410467

$8.79

22

WASHER, THRUST(10)

7555788

Unavailable

22

WASHER, THRUST(10)

7555788

Unavailable

23

SUPPORT,MUFFLER,BLK.

1260724-067

$92.99

24

RIVET,INTERLOCK,B(50)

7661638

$1.49

24

RIVET,INTERLOCK,B(50)

7661638

$1.49

25

Boot, Exhaust

5410502

$24.27

26

BRKT,R.MUFFLER SUPPORT

5240715-067

Unavailable

27

RIVET(50)

7621472

$1.49

28

RIVET, BLIND(50)

7621467

$1.49

28

RIVET, BLIND(50)

7621467

$1.49

29

CLIP, HALF(10)

7080393

$3.19

30

RIVET(50)

7621433

$1.49

31

RIVET, POP(50)

7621330

$1.49

32

DECAL,TRBLSHOOT,X-10(EV/AG)

7077212

Unavailable

33

CLIP,BELT RETAINER

5222769

$8.79

34

DECAL,ENG&CLUTCH(CPSC)

7075350

Unavailable

35

KNOB,CLUTCH GUARD(10)

7080523

$4.03

36

BUMPER,CLUTCHGUARD

5431928

$2.39

37

GUARD,CLUTCH

5240999

Unavailable

38

RIVET(50)

7621429

$1.49

39

HINGE

5210728

Unavailable

40

MT,FR.CLUTCHGUARD

5222904

Unavailable

41

BRKT,LH,SIDEPANEL

5240994-067

Unavailable
