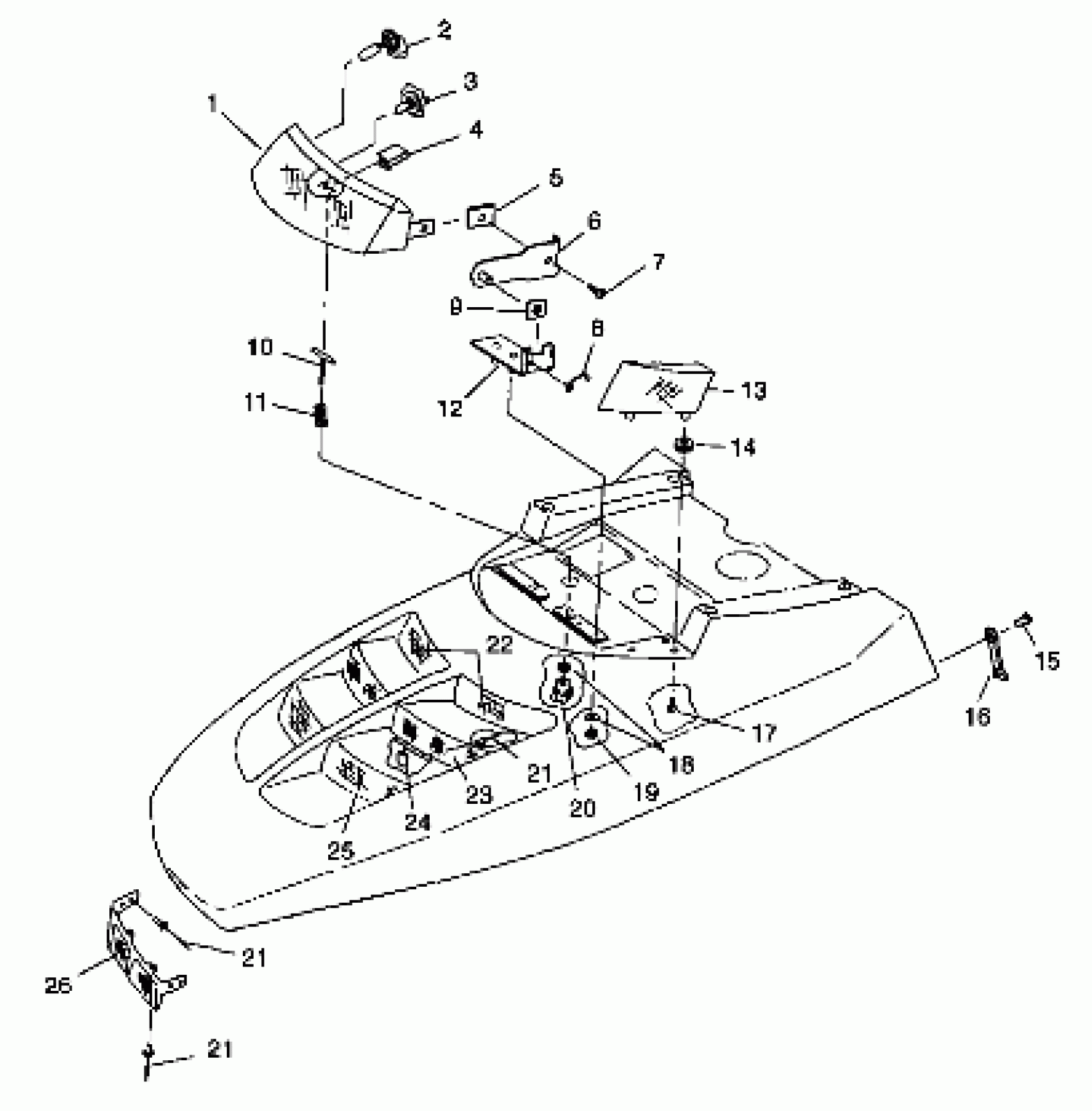

Polaris 500 INDY - 099EB4BS HOOD - HEADLIGHT - 099EB4BSA (4946834683a013) Diagram

#

Description
Price

1

H/L ASM,3-BULB (Incl. 2,3)

2431008

$111.99

2

BULB,HI-BEAM

4030048

$29.03

3

BULB,QUARTZ.H/L,INDY

2870448

$24.99

4

FASTENER-U TYPE CLIP

7670040

$3.99

5

NUT, SPEED(10)

7670057

$1.49

6

MOUNT,WELD,H/L

1011944-067

$24.27

7

BOLT(10)

7515107

Unavailable

8

RETAINER,LH,WIRE

5224493

$2.22

8

RETAINER,RH,WIRE

5224501

Unavailable

9

PIVOT,HEADLIGHT

5431549

Unavailable

10

BOLT,TEE ADJUSTER Substituted by 7517746

7515135

$24.99

11

SPRING,H/L.ADJ.

7041308

$3.19

12

BRKT,LH,H/L MT.,BLK.

1011984-067

Unavailable

12

BRKT,RH,H/L MT.,BLK.

1011985-067

Unavailable

13

LENS,LH,CLR.REFLECTOR

5431855

Unavailable

13

LENS,RH,CLR.REFLECTOR

5431856

Unavailable

14

BUSHING

5411110

Unavailable

15

RIVET,(50)

7621601

Unavailable

16

STRAP,HOODLATCH

5431501

Unavailable

17

SCREW(10) Substituted by 7512048

7511953

Unavailable

18

WASHER(10)

7558301

$1.49

19

NUT-LOCK(10)

7542122

$1.49

20

KNOB,H/L.ADJUST

7080501

Unavailable

21

RIVET(50)

7621339

$1.49

21

RIVET(50)

7621339

$1.49

21

RIVET(50)

7621339

$1.49

22

SCREEN,UP.HD,BLK.

5222908-067

Unavailable

23

SCREEN,CTR.HD,BLK.

5222907-067

Unavailable

24

SPEEDCLIP,'U'TYPE(10)

7670082

Unavailable

25

SCREEN,LOW.HD,BLK

5241350-067

$17.43

26

SCREEN,FR.,BLK.

1012031-067

Unavailable
